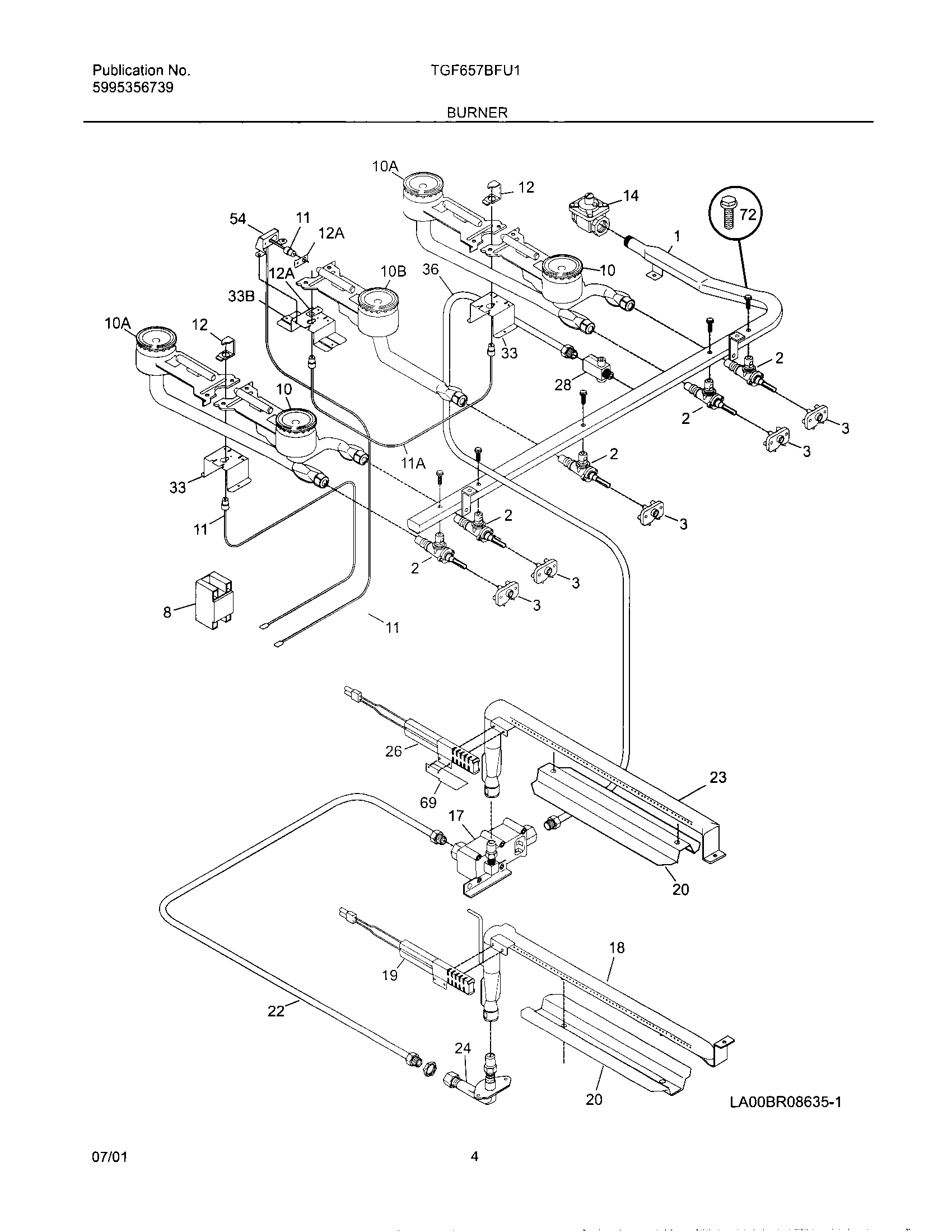

TGF657BFU1 05 – BURNER

Products

Position	Product
NI	WCI 5303311549
NI	316048200 Frigidaire Oven Screw
NI	WCI 08008009
NI	SCREW-SHOULDER
1	WCI 318177400
2	WCI 318087100
3	SWITCH-IGNITER, (4)
8	5304518635 Frigidaire Oven Module
10	WCI 318176200
10A	WCI 318176201
10B	WCI 318176400
11A	Ignitor,top burner ,front
11	WCI 318148504
12A	RETAINER-IGNITER, GRIDDLE
12	RETAINER-IGNITER
14	5308007974 Frigidaire Pressure Regulator
17	VALVE-SAFETY
18	WCI 5303311544
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	Baffle,oven burner
22	WCI 5303311546
23	BURNER-BROILER
24	MIXER ELBOW
26	318177730 Frigidaire Igniter Assembly
28	WCI 318087400
33	WCI 5303210471
33B	Bracket,burner mtg ,griddle
36	WCI 5303311545
54	WCI 5303311553
69	WCI 3131871
72	WCI 5303323141
