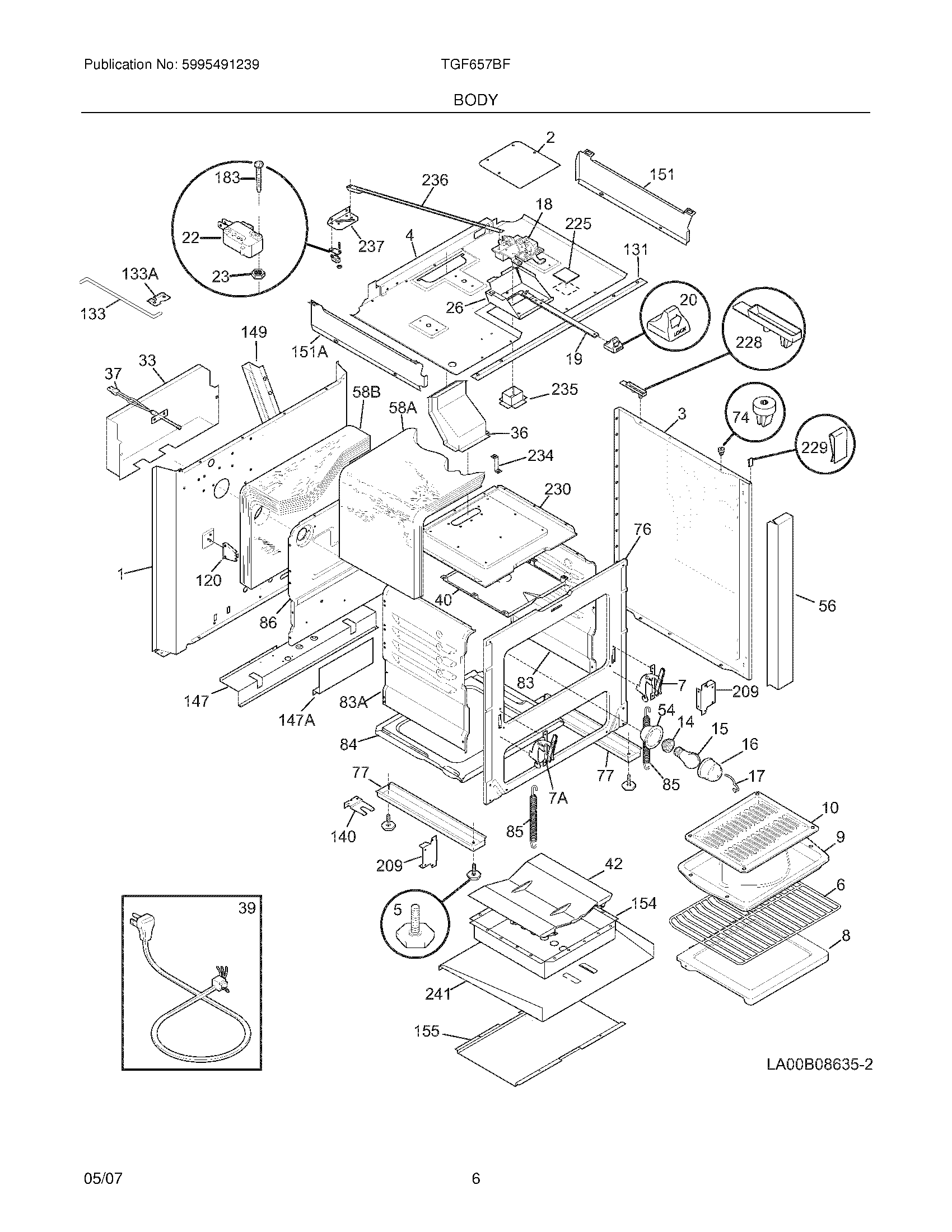

TGF657BFU5 07 – BODY

TGF657BFU5 07 – BODY

Written by

in

TGF657BFU5 07 – BODY

Products

PositionProduct
NIWCI 318224706
NI5304500008 Frigidaire Oven Screw
NISCREW, 10 X 3/8
NIWCI 5303324186
NI5303211311 Frigidaire Refrigerator Screw
NI5303013272 Frigidaire Oven Nut
NI5304414648 Frigidaire Oven Screw
1WCI 318076305
2WCI 318135700
3WCI 318317902
4WCI 318133501
5318175503 Frigidaire Screw with Bolt
6WCI 318345202
7WCI 318348800
7A318348801 Frigidaire Oven Left Side Door Hinge
8WCI 318135500
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-LENS
18Latch,door
19WCI 318198000
20WCI 5303212486
22Switch,latch
23FASTENER, SWITCH
26WCI 318168200
33WCI 318114302
36WCI 318089700
37316217002 Frigidaire Oven Temperature Probe
39WCI 318144007
40WCI 318133301
42WCI 318168700
54WCI 5303271606
56Trim,bodyside ,black
58BWCI 318285030
58AWCI 318285029
74GROMMET
76WCI 318133903
77WCI 318166702
83AWCI 318134401
83WCI 318134400
84PANEL-OVEN BOTTOM
85318088400 Frigidaire Oven Spring Assembly
86WCI 318135300
120SUPPORT-REAR OVN (2)
131Support,control panel
133BRACKET-ROD, MAIN TOP
133ROD-TOP SUPPORT
140WCI 5304405240
147WCI 318168401
147SUPPORT, CONTROL VALVE
149CHANNEL – MAIN WIRE
151SHIELD-BURNER BOX RH
151SHIELD-BURNER BOX LH
154WCI 318076600
155WCI 318160601
183WCI 5303308447
209SUPPORT-RAIL (NOT ILLUSTRATED)
225REFLECTOR PLATE (NON-ILLUSTRATED)
228GROMMET-MAIN TOP (NOT ILLUSTRATED)
229CLIP,BODYSIDE
230WCI 5303324119
234WCI 3131800
235WCI 318133201
23673202-2320 Frigidaire Oven Screw
236WCI 318170701
237BRACKET-LOCK SWITCHES
241WCI 318121201
