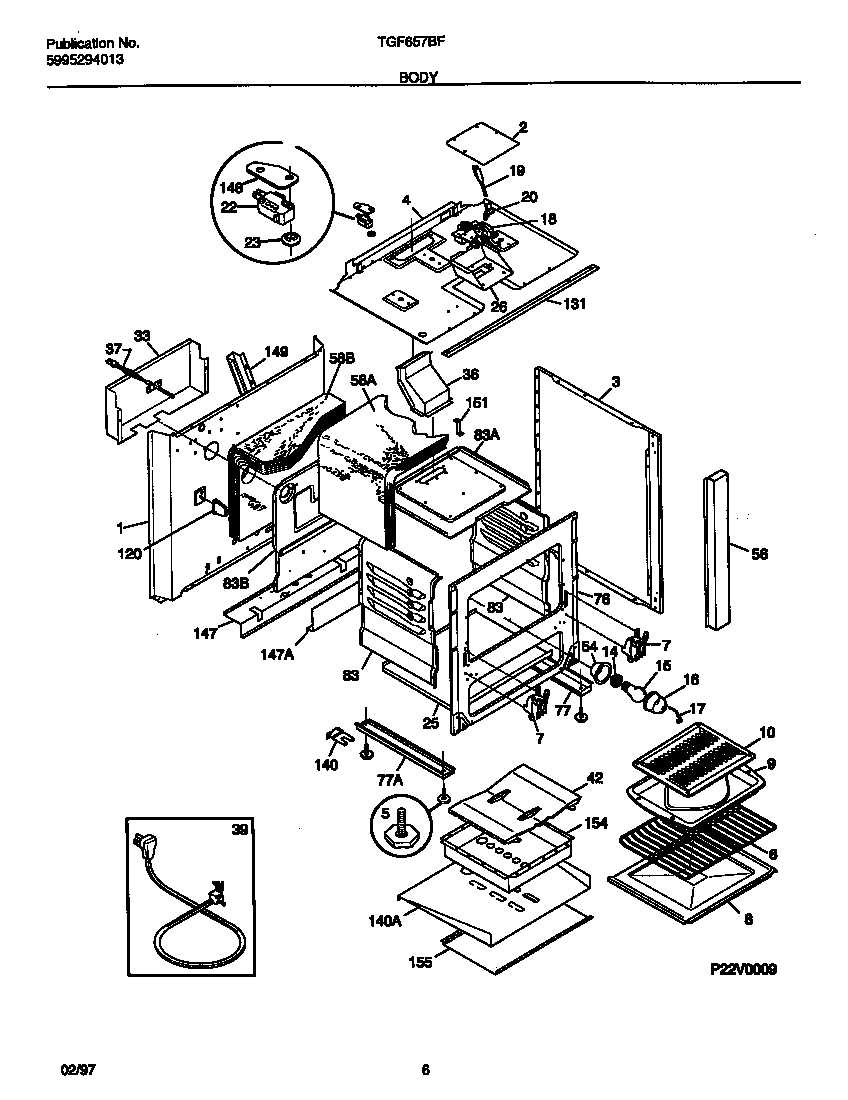

TGF657BFW1 04 – BODY

TGF657BFW1 04 – BODY

Written by

in

TGF657BFW1 04 – BODY

Products

PositionProduct
*24852WCI 08068030
*24850REFLECTOR PLATE (NON-ILLUSTRATED)
*24853BRACKET-LOCK SWITCHES
*248515304500008 Frigidaire Oven Screw
*24855WCI 5303311543
*24856SCREW, 10 X 3/8
*248545304464772 Frigidaire Refrigerator Wire Tie
*24849Clip,insulator
1WCI 5303311540
2WCI 318135700
3BCLIP,BODYSIDE
3AGROMMET
3BODYSIDE PANEL-WHITE (2)
3DSHIELD-BURNER BOX LH
3CSHIELD-BURNER BOX RH
3EGROMMET-MAIN TOP (NOT ILLUSTRATED)
4WCI 318133501
6WCI 5303311539
7C318088400 Frigidaire Oven Spring Assembly
7B318348801 Frigidaire Oven Left Side Door Hinge
7AWCI 3205894
7D5300809968 Frigidaire Dishwasher P-1 Washer
8WCI 318135500
8PANEL-OVEN BOTTOM
9WCI 5303317977
10WCI 5303317976
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-LENS
18BWCI 5303323719
18ALatch,door
19HANDLE-LATCH
20WCI 5303212486
22Switch,latch
23FASTENER, SWITCH
25Frame-oven bottom
26WCI 3131853
33WCI 5303311541
36WCI 318089700
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
39BWCI 08067961
39AWCI 5303308453
54WCI 5303271606
56Trim,bodyside ,black
58AWCI 5303311538
58WCI 5303311542
58BWCI 5303299689
76WCI 318133901
77SUPPORT-RAIL (NOT ILLUSTRATED)
77RAIL-BASE, LH
77Rail,base ,RH
83WCI 318135300
83BWCI 318134401
83AWCI 318134400
83WCI 5303324119
120SUPPORT-REAR OVN (2)
131SUPPORT-CONTROL PANEL
140WCI 3131820
140BRACKET-INSTALLATION (2)
147SUPPORT, CONTROL VALVE
147SUPPORT, CONTROL VALVE
148WCI 3017411
149CHANNEL – MAIN WIRE
151WCI 3131800
154PAN-OVEN BURNER
155SHIELD-DRAWER
