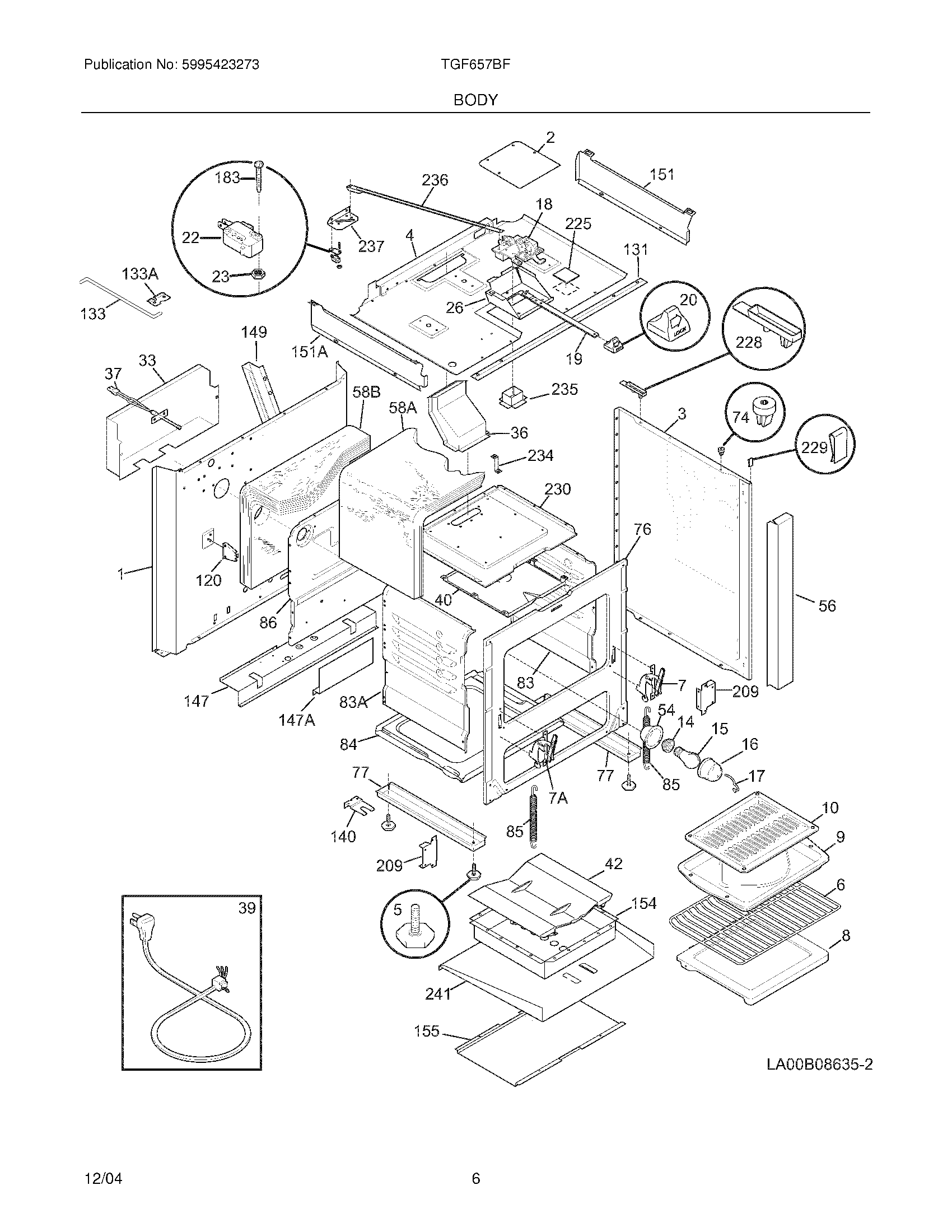

TGF657BFW6 07 – BODY

TGF657BFW6 07 – BODY

Written by

in

TGF657BFW6 07 – BODY

Products

PositionProduct
NISCREW, 10 X 3/8
NI5304414648 Frigidaire Oven Screw
NI5304500008 Frigidaire Oven Screw
NIWCI 5303324186
NI5303013272 Frigidaire Oven Nut
NI5303211311 Frigidaire Refrigerator Screw
1WCI 318076301
2WCI 318135700
3BODYSIDE PANEL-WHITE (2)
4WCI 318133501
5318175503 Frigidaire Screw with Bolt
6WCI 5303311539
7WCI 3205894
7A318348801 Frigidaire Oven Left Side Door Hinge
8WCI 318135500
9WCI 5303317977
10WCI 5303317976
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-LENS
18Latch,door
19WCI 318198000
20WCI 5303212486
22Switch,latch
23FASTENER, SWITCH
26WCI 318168200
33COVER WIRE BACK
36WCI 318089700
37WCI 318087700
39WCI 318144003
40WCI 318133300
42WCI 318168700
54WCI 5303271606
56Trim,bodyside ,black
58BWCI 318133717
58AWCI 318133716
74GROMMET
76WCI 318133903
77WCI 318166701
83WCI 318134400
83AWCI 318134401
84PANEL-OVEN BOTTOM
85318088400 Frigidaire Oven Spring Assembly
86WCI 318135300
120SUPPORT-REAR OVN (2)
131Support,control panel
133ROD-TOP SUPPORT
133BRACKET-ROD, MAIN TOP
140WCI 5304405240
147WCI 318168400
147SUPPORT, CONTROL VALVE
149CHANNEL – MAIN WIRE
151SHIELD-BURNER BOX LH
151SHIELD-BURNER BOX RH
154WCI 318076600
155WCI 318160600
183WCI 5303308447
209SUPPORT-RAIL (NOT ILLUSTRATED)
225REFLECTOR PLATE (NON-ILLUSTRATED)
228GROMMET-MAIN TOP (NOT ILLUSTRATED)
229CLIP,BODYSIDE
230WCI 5303324119
234WCI 3131800
235WCI 318133201
23673202-2320 Frigidaire Oven Screw
236WCI 318170700
237BRACKET-LOCK SWITCHES
241WCI 318121200
