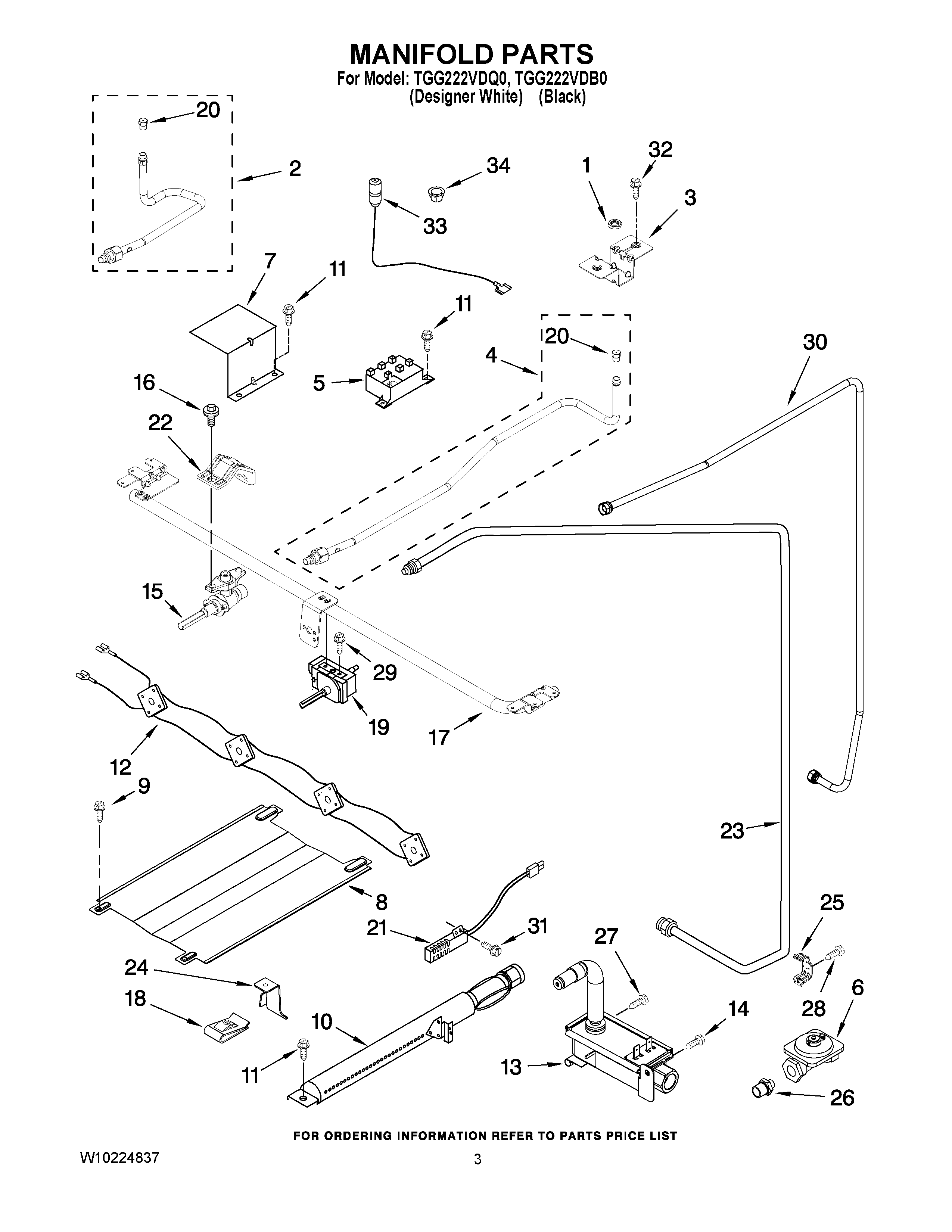

TGG222VDB0 03 – MANIFOLD PARTS

TGG222VDB0 03 – MANIFOLD PARTS

Written by

in

TGG222VDB0 03 – MANIFOLD PARTS

Products

PositionProduct
NIW11672513 Whirlpool Range Orifice Spud
1WPY703856 Whirlpool Nut
2WP98017582 Whirlpool Venturi
3W11715913 Whirlpool Mounting Bracket
4WP98017359 Whirlpool Venturi Assembly
53184020 Whirlpool Oven Wire
7COVER, MODULE
8W10212101 Whirlpool Burner Baffle
9SCREW
10WP98012138 Whirlpool Oven Burner
12WPW10361492 Whirlpool Wire Harness
13WPW10205816 Whirlpool Gas Valve
15Valve, Burner (4)
17PIPE, MANIFOLD
1898009179 Whirlpool Oven Nut
19WPW10641988 Whirlpool Oven Thermostat
20WP98017348 Whirlpool Orifice
21W10918546 Whirlpool Oven Range Igniter
22W10177394 Whirlpool Regulator
23W10177392 Whirlpool Gas Tubing
2498013314 Whirlpool Oven Support Bracket
2598007410 Whirlpool Oven Mounting Bracket
2698007431 Whirlpool Oven Fitting
2798013634 Whirlpool Oven Screw
28Screw, Ground
29WP3400882 Whirlpool Screw
30WP98017171 Whirlpool Gas Tubing
31W11676351 Whirlpool Screw
32W10837731 Whirlpool Screw Assembly
33WPW10209656 Whirlpool Surface Ignitor
33WPW10209657 Whirlpool Oven Surface Igniter
34WPW10278150 Whirlpool Clip Assembly
