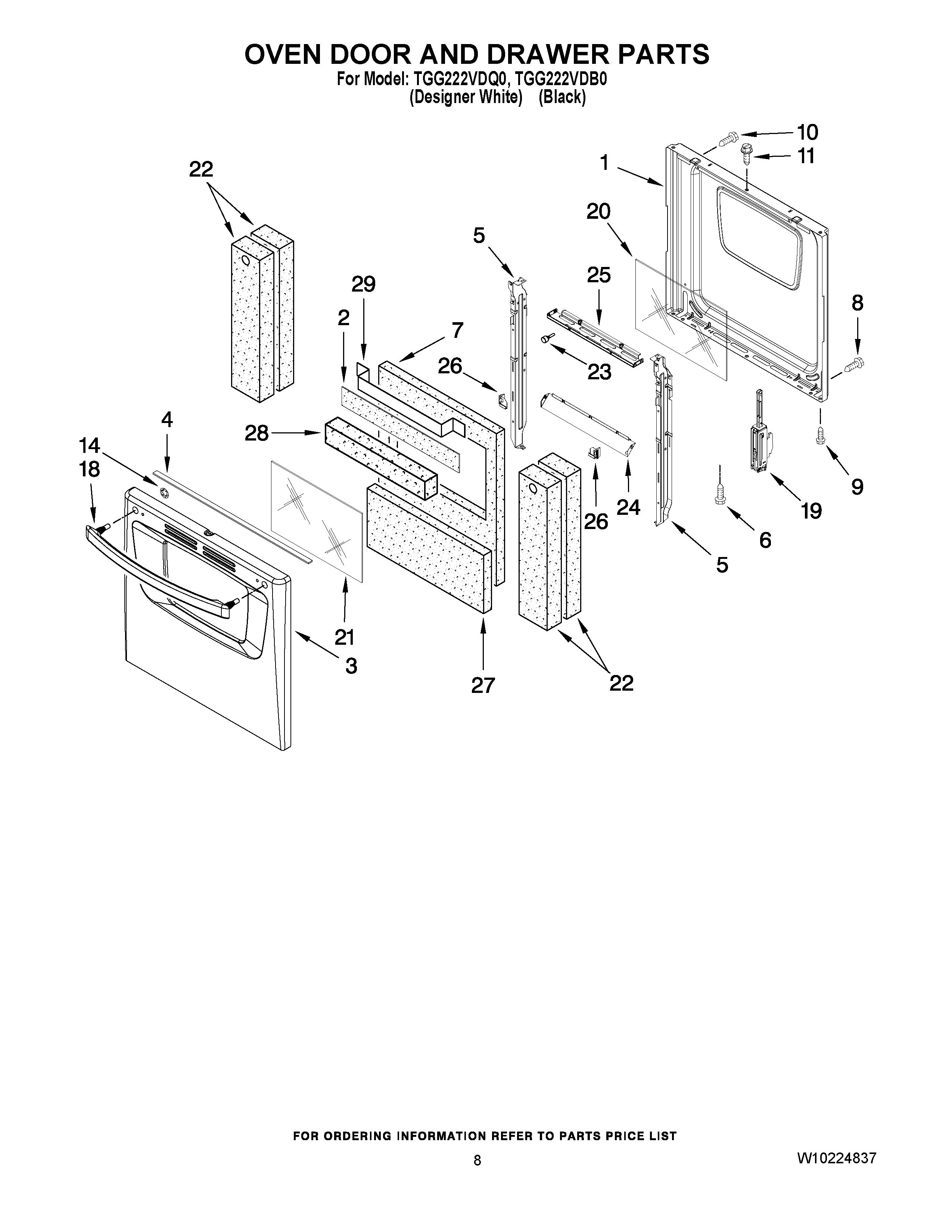

TGG222VDB0 06 – OVEN DOOR AND DRAWER PARTS

TGG222VDB0 06 – OVEN DOOR AND DRAWER PARTS

Written by

in

TGG222VDB0 06 – OVEN DOOR AND DRAWER PARTS

Products

PositionProduct
1W10222941 Whirlpool Door Liner
2Retainer, Insulation (7)
3W10223099 Whirlpool Door Panel
3W10223098 Whirlpool Door Panel
4W10219461 Whirlpool Door Gasket
598004629 Whirlpool Oven Retainer
598004564 Whirlpool Oven Retainer
6WP59002061 Whirlpool Microwave Screw
7W11688807 Whirlpool Insulation
8W11206744 Whirlpool Screw
9WP3400805 Whirlpool Screw Assembly
10SCREW
113196166 Whirlpool Screw
14WP98004650 Whirlpool Nut
18WP98004947 Whirlpool Door Handle
18HANDLE, OVEN DOOR (BLACK)
1998017873 Whirlpool Oven Door Hinge
20WPW10201296 Whirlpool Door Glass
21WPW10168624 Whirlpool Door Glass
22W11688783 Whirlpool Insulation Assembly
2398004723 Whirlpool Oven Bumper
2498012903 Whirlpool Oven Retainer
2598004981 Whirlpool Oven Retainer
2698004952 Whirlpool Oven Clip
2698004953 Whirlpool Clip
27W11688579 Whirlpool Insulation
28W11688771 Whirlpool Insulation
29BRKT., RETAINER
