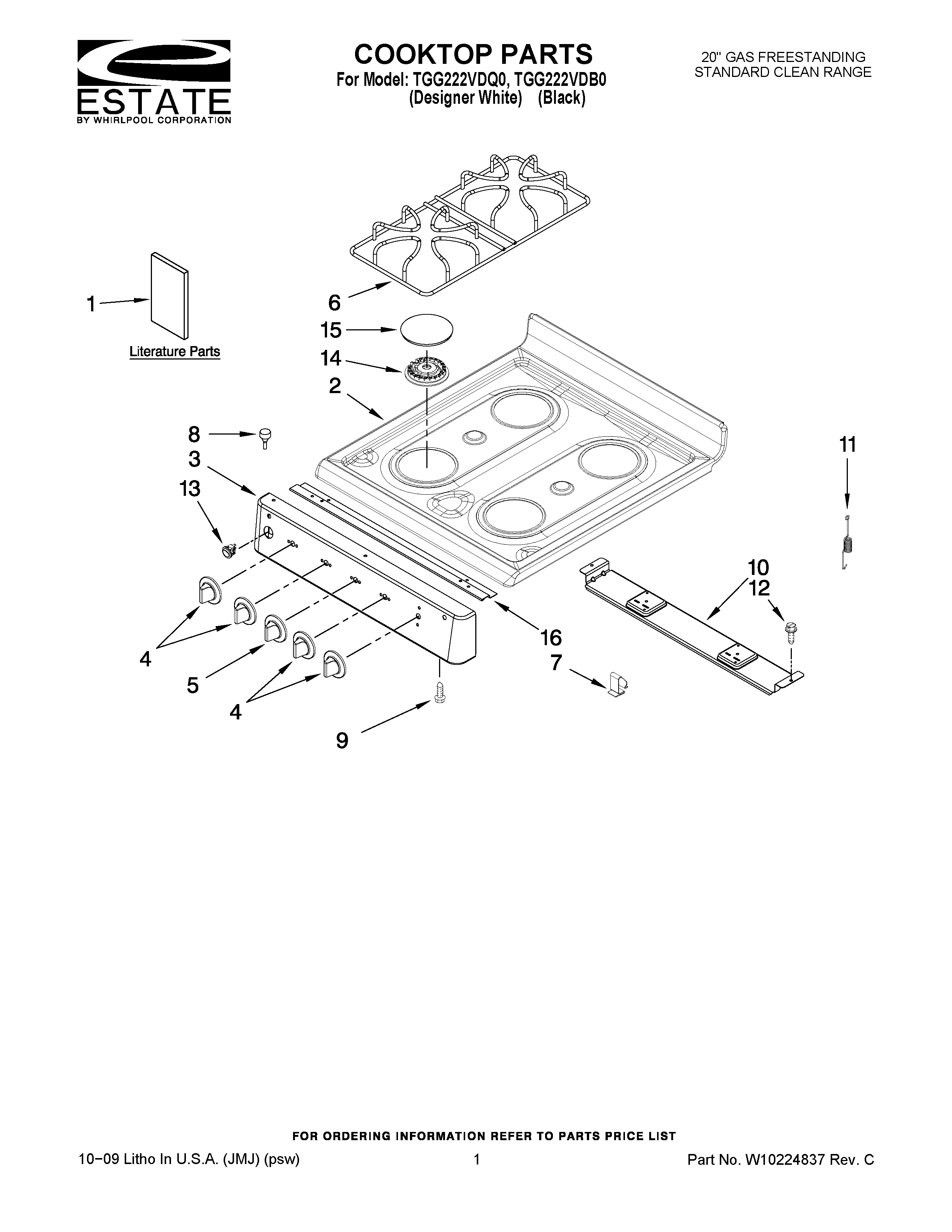

TGG222VDQ0 01 – COOKTOP PARTS

Products

PositionProduct
1GUIDE, USE & CARE
1INSTRUCTIONS INSTALLATION
1Tech Sheet
1Installation Instr (Template)
1Safer Cooking Tips
2WPW10180088 Whirlpool Cooktop
2WPW10179560 Whirlpool Cooktop
3PANEL, MANIFOLD (BLACK)
3PANEL, MANIFOLD (WHITE)
4WP98006102 Whirlpool Knob
4WP98006100 Whirlpool Knob
5WP98008320 Whirlpool Knob Assembly
5WP98008321 Whirlpool Range Stove Burner Thermostat Control Knob
6WPW10180089 Whirlpool Burner Grate
8W10207167 Whirlpool Bumper
9SCREW
1098012912 Whirlpool Support
11CLIP, COOKTOP
12W10837731 Whirlpool Screw Assembly
1398011571 Whirlpool Light Switch
1398011569 Whirlpool Oven Light Switch
14WP98017537 Whirlpool Top Burner
15WP98017461 Whirlpool Burner Cap
16W10222744 Whirlpool Mounting Bracket
