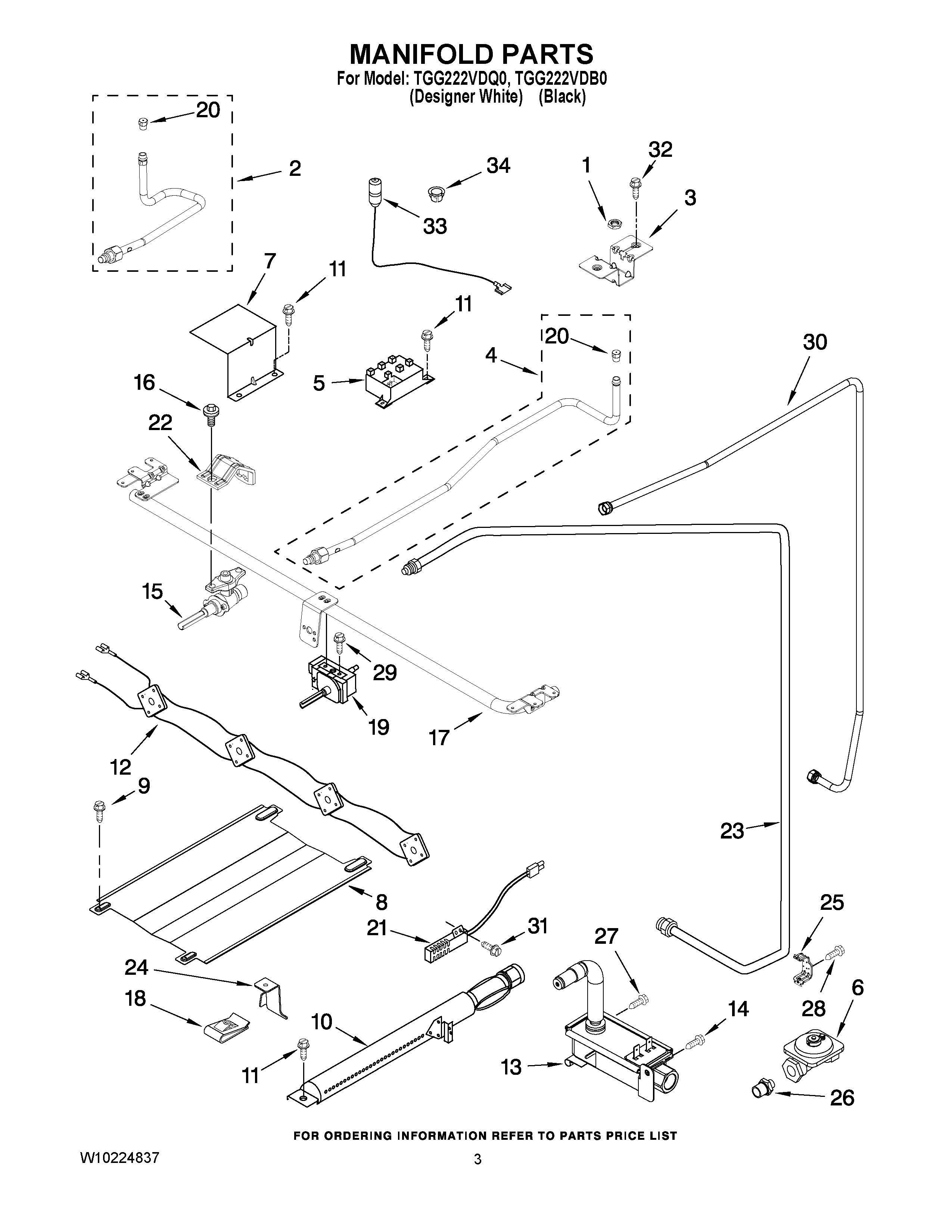

TGG222VDQ0 03 – MANIFOLD PARTS

Products

Position	Product
NI	W11672513 Whirlpool Range Orifice Spud
1	WPY703856 Whirlpool Nut
2	WP98017582 Whirlpool Venturi
3	W11715913 Whirlpool Mounting Bracket
4	WP98017359 Whirlpool Venturi Assembly
5	3184020 Whirlpool Oven Wire
7	COVER, MODULE
8	W10212101 Whirlpool Burner Baffle
9	SCREW
10	WP98012138 Whirlpool Oven Burner
12	WPW10361492 Whirlpool Wire Harness
13	WPW10205816 Whirlpool Gas Valve
15	Valve, Burner (4)
17	PIPE, MANIFOLD
18	98009179 Whirlpool Oven Nut
19	WPW10641988 Whirlpool Oven Thermostat
20	WP98017348 Whirlpool Orifice
21	W10918546 Whirlpool Oven Range Igniter
22	W10177394 Whirlpool Regulator
23	W10177392 Whirlpool Gas Tubing
24	98013314 Whirlpool Oven Support Bracket
25	98007410 Whirlpool Oven Mounting Bracket
26	98007431 Whirlpool Oven Fitting
27	98013634 Whirlpool Oven Screw
28	Screw, Ground
29	WP3400882 Whirlpool Screw
30	WP98017171 Whirlpool Gas Tubing
31	W11676351 Whirlpool Screw
32	W10837731 Whirlpool Screw Assembly
33	WPW10209656 Whirlpool Surface Ignitor
33	WPW10209657 Whirlpool Oven Surface Igniter
34	WPW10278150 Whirlpool Clip Assembly
