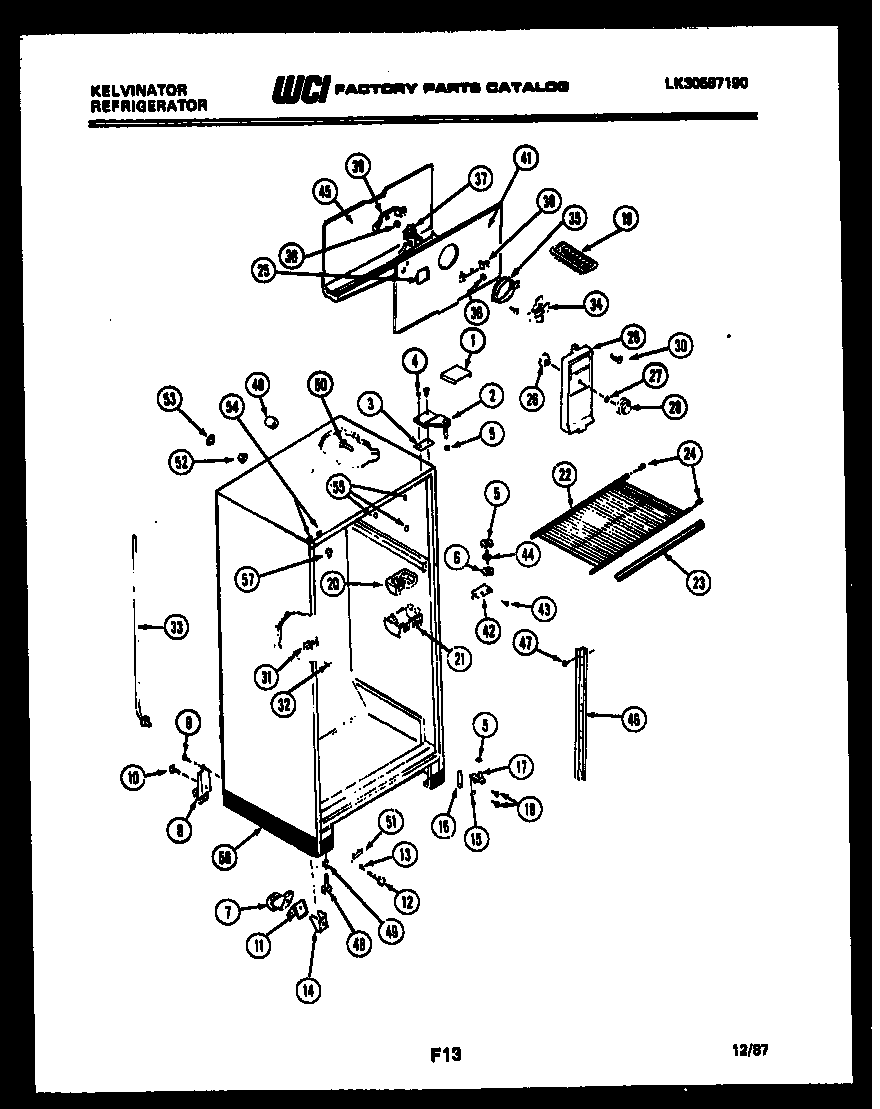

TGK160AN6D 03 – CABINET PARTS

Products

Position	Product
*13423	BUTTON, LINER
*13422	BUTTON, PLUG, LINER (2)
*13424	TAPPING, PLATE (2)
1	COVER, TOP HINGE, ALMOND
2	BRACKET, TOP HINGE
3	WCI G183861
4	241710601 Frigidaire Refrigerator Screw
5	WCI G103903
6	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
7	ROLLER FRONT, ADJUSTABLE (2)
8	ROLLER, REAR (2)
9	5304455651 Frigidaire Refrigerator Screw
10	BOLT ROLLER (2)
11	SPRING-ROLLER (2)
12	BOLT-ROLLER (2)
13	WASHER
14	SUPPORT, ROLLER (2)
15	BRACKET-HINGE
16	SHIM, HINGE
17	5303001321 Frigidaire Refrigerator Lower Hinge Pin
19	215667501 Frigidaire Refrigerator Ice Tray Primary
20	DEFLECTOR AIR
21	WCI G162178
22	WCI G177059-01
23	WCI G172434-20
24	WCI G166495-01
25	BUTTON DECORATIVE PLUG
26	DAMPER FAN COVER
27	NUT, DAMPER MOUNTING
28	WCI G162663-15
29	WCI G163061-36
30	5304455650 Frigidaire Refrigerator Screw
31	SPOUT DRAIN TUBE
32	PIN PUSH SPOUT (2)
33A	RING, SEAL (NON-ILLUSTRATED)
33	TUBE, DRAIN
34	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
35	RING, FAN ORIFICE
36	G187559 Frigidaire Refrigerator Bushing
37	5300158289 Frigidaire Evaporator Fan Motor
38	WCI G185302
39	WCI G185303
40	TUBE, INSULATION (2)
41A	NUT, ORIFICE (2)
41	COVER-COIL
42A	WASHER (2)
42	BRACKET, HINGE CENTER
43	SCREW, BRACKET MOUNTING (4)
44	WCI G142220
45	TROUGH-DRAIN
46	CHANNEL, SHELF (2)
47	5304455852 Frigidaire Refrigerator Screw
48	LEG-LEVELING (2)
49	NUT, ANCHOR (2)
50	WCI G163669
51	WCI G166912
52	WCI G174733
53	WCI G174734
54	WCI G174747-11
55	5304509705 Frigidaire Refrigerator Grommet
55A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
56	CABINET BASE
57	TRIM-CORNER, ALMOND (4)
