TGK160AN6D 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

TGK160AN6D 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

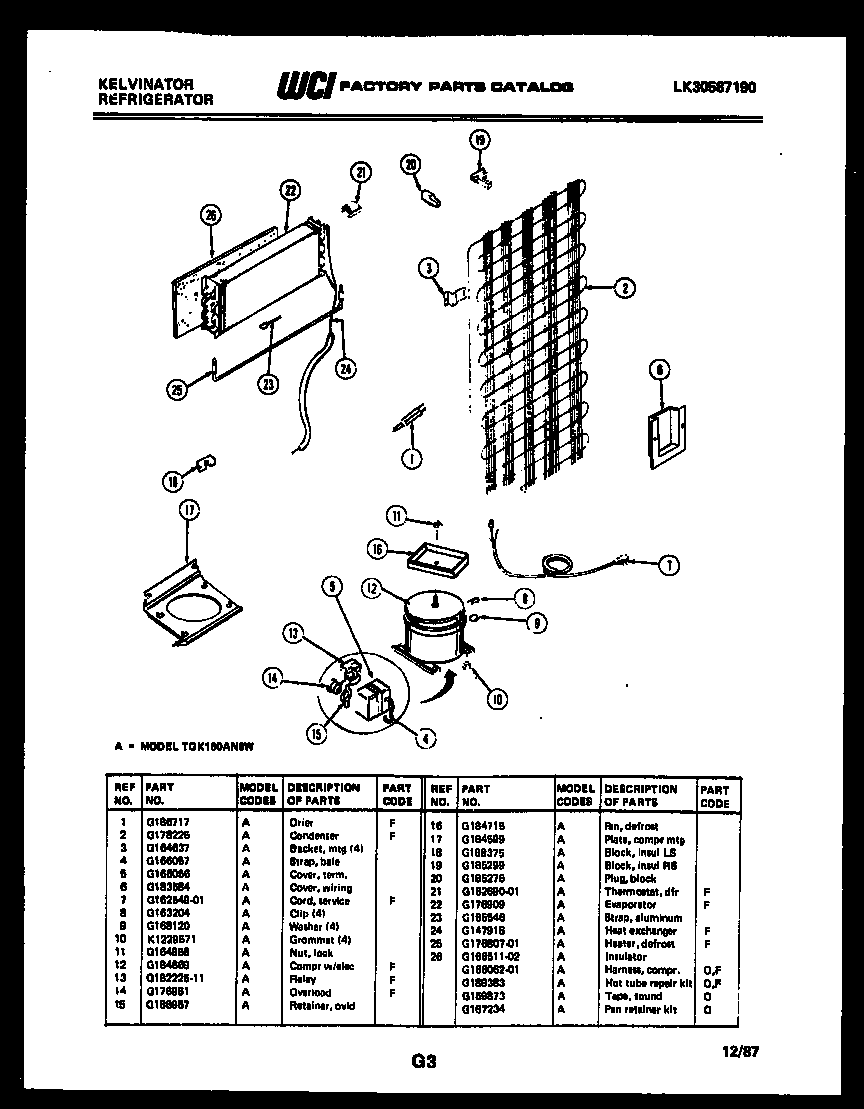

TGK160AN6D 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*13464WCI G167234
*13462HARNESS-COMPRESSOR
*13463HOT TUBE REPAIR KIT
*134645303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI G178225
3BRACKET-CONDENSER MOUNTING (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI G183584
7CORD, SERVICE
8CLIP, COMPRESSOR MOUNTING (4)
9WCI G168120
10218513300 Frigidaire Refrigerator Compressor Mount Grommet
11NUT, LOCK
12COMPRESSOR WITH ELECTRICALS
13WCI G182225-11
14WCI G176981
15RETAINER, OVERLOAD
16DEFROST PAN & NUT
17PLATE
18BLOCK, LEFT SIDE
19BLOCK, EVAPORATOR, RH
20PLUG, EVAPORATOR INSULATION BLOCK, R H
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22EVAPORATOR
235308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
24HEAT, EXCHANGE
25HEATER, DEFROST
26INSULATOR
