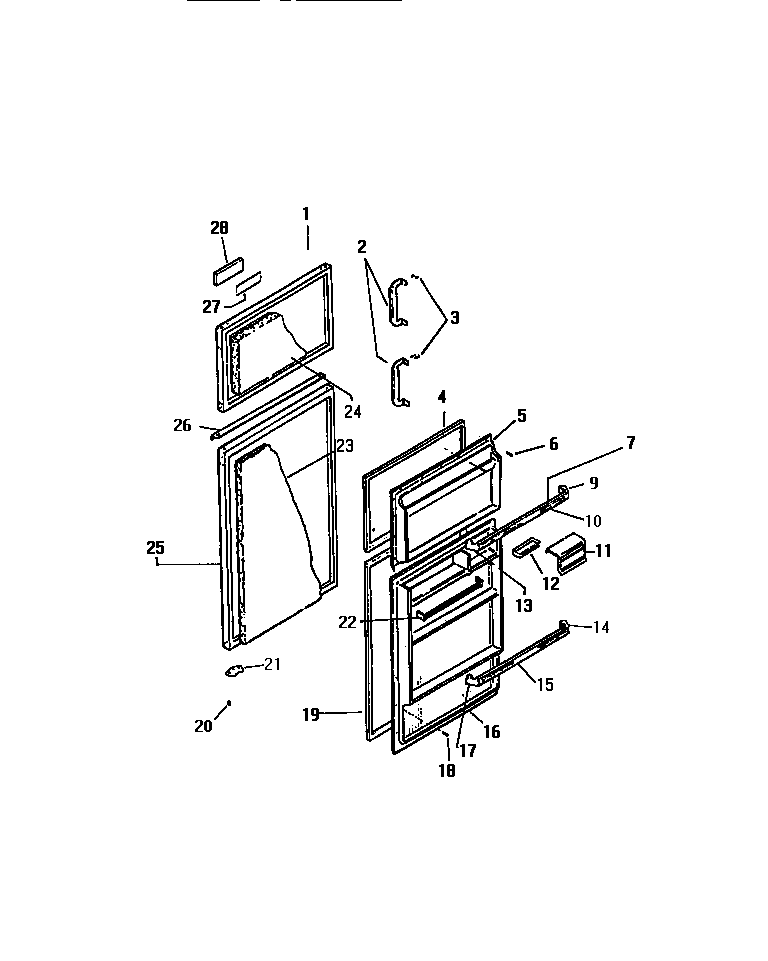

TGK180AN6F 02 – DOOR

Products

Position	Product
*90128	WCI G172723-10
*90140	WCI G162977-10
*90135	WCI G169332-10
1	PANEL-OUTER-COFE
2	WCI G172612-03
3	WCI G185566
4	FC DOOR GASKET, MAGNETIC
5	PANEL-INNER FRZR
7	TRIM, RACK (ORDER TAPE)
7A	WCI G141624-24
10	WCI G162939-28
11	WCI G162713-08
12	5308000716 Frigidaire Refrigerator Dish
14	SUPPORT RS (3)
15	WCI G162939-29
16	PANEL-INNER REFR.
17	SUPPORT LS (3)
18	5304455651 Frigidaire Refrigerator Screw
19	PC DOOR GASKET, MAGNETIC
20	BEARING, HINGE (3)
21	STOP, DOOR. PC & FC (2)
22	TRIM-SHELF
22A	WCI G141624-16
23	INSULATION, LOWER EXTERIOR DOOR
24	INSULATION, UPPER EXTERIOR DOOR
25	PANEL-OUTER-COFE
26	WCI G178293-01
26A	WCI G162991-29
27	WCI G178282-01
28A	WCI G162991-04
28	NAMEPLATE FRAME
