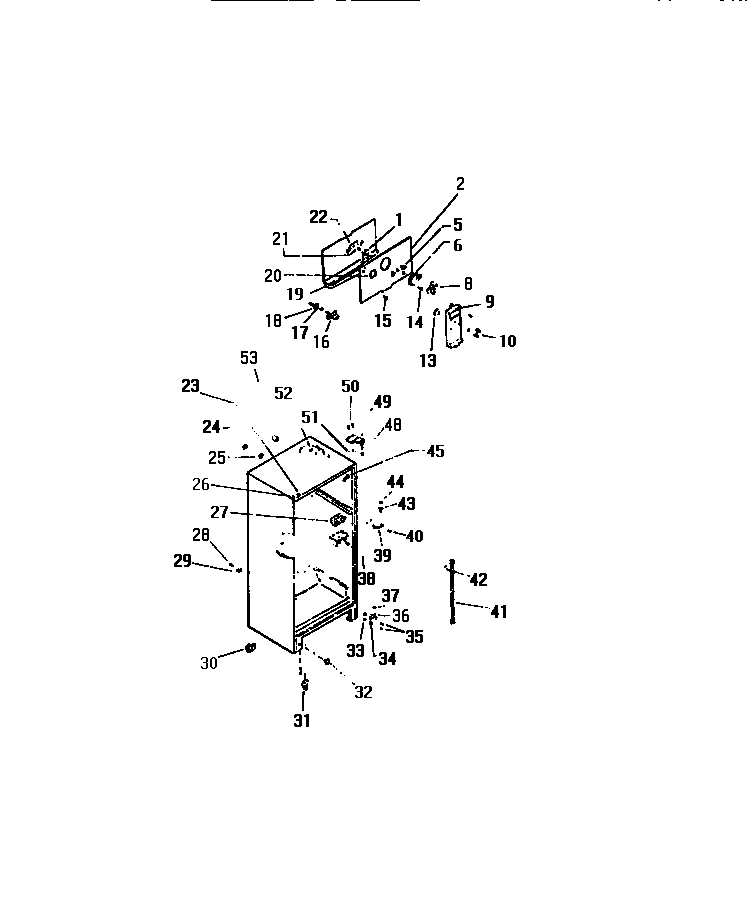

TGK180AN6T 03 – CABINET W/ FAN ASSEMBLY

Products

Position	Product
*90121	215667501 Frigidaire Refrigerator Ice Tray Primary
*90144	COVER HINGE, WHEAT
*90148	5304509705 Frigidaire Refrigerator Grommet
*90149	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*90147	TAPPING PLATE (2)
1	5300158289 Frigidaire Evaporator Fan Motor
2	WCI G177529
5	BRACKET, FRONT MOTOR MOUNTING
5A	WCI G164571
5B	5304455651 Frigidaire Refrigerator Screw
6A	NUT, ORIFICE (2)
6	RING, FAN ORIFICE
8	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
9	WCI G163061-36
10A	NUT, DAMPER MOUNTING
10	WCI G162663-11
13	DAMPER FAN COVER
14	5304455650 Frigidaire Refrigerator Screw
16	SPOUT DRAIN TUBE
17	TUBE, DRAIN
18	RING, SEAL (NON-ILLUSTRATED)
19	WCI G177534
21	G187559 Frigidaire Refrigerator Bushing
22	BRACKET, REAR MOTOR MOUNTING
23	WCI G174747-09
24	WCI G174734
25	WCI G174733
26	BUTTON DECORATIVE PLUG
27	DEFLECTOR AIR
29	WCI G101747
30B	5308000039 Frigidaire Refrigerator Screw
30A	BOLT ROLLER (2)
30	ROLLER, REAR (2)
31	ROLLER FRONT, ADJUSTABLE (2)
31C	SUPPORT, ROLLER (2)
31D	WASHER
31B	BOLT-ROLLER (2)
31A	SPRING-ROLLER (2)
32	WCI G166912
33	SHIM, HINGE
34	BRACKET, HINGE, LOWER
36	5303001321 Frigidaire Refrigerator Lower Hinge Pin
38	WCI G162178
39	BRACKET, HINGE CENTER
40	SCREW, BRACKET MOUNTING (4)
41	CHANNEL, SHELF (2)
42	5304455852 Frigidaire Refrigerator Screw
43	WCI G142220
45	WCI G179684-09
48	WCI G103903
49	BRACKET, TOP HINGE
50	241710601 Frigidaire Refrigerator Screw
51	WCI G183861
52	WCI G163669
53	TUBE, INSULATION (2)
