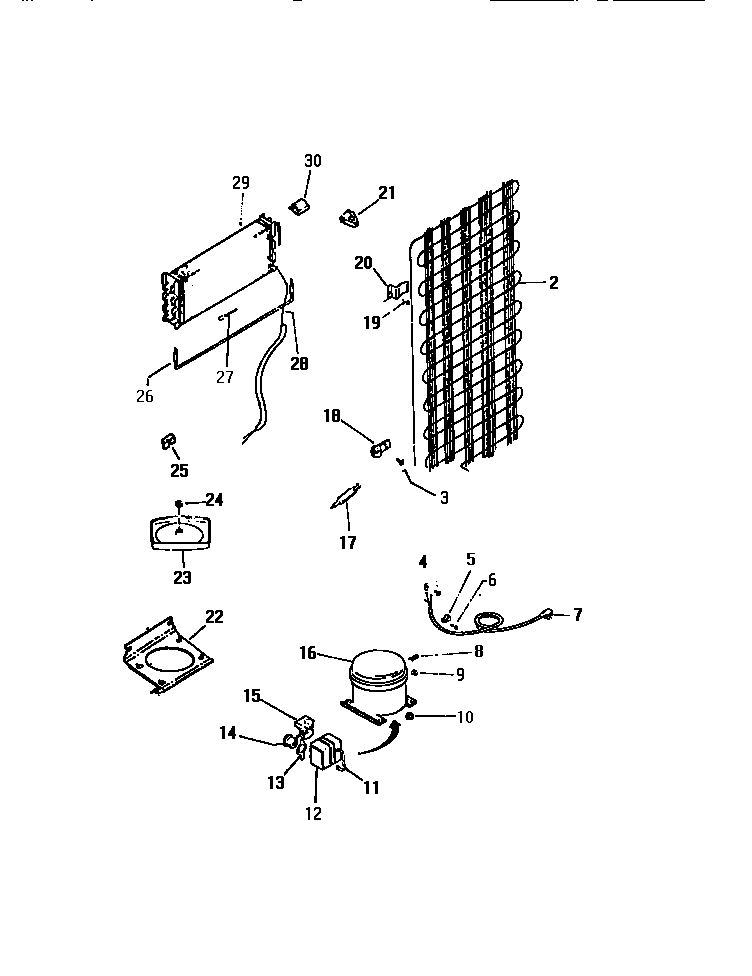

TGK180AN6V 05 – SYSTEM

Products

Position	Product
*90155	PLUG, EVAPORATOR INSULATION BLOCK, R H
*90120	WCI G179024
2	WCI G162739
3A	WASHER
5	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
6	5304455651 Frigidaire Refrigerator Screw
7	CORD, SERVICE
8	CLIP, COMPRESSOR MOUNTING (4)
9	WASHER, COMPRESSOR MOUNTING (4)
10	218513300 Frigidaire Refrigerator Compressor Mount Grommet
11	STRAP-COVER
12	WCI G185792
13	CLIP, OVERLOAD
14	WCI G185797
15	WCI G18225-12
16	COMPRESSOR
17	5303305677 Frigidaire Replacement Filter Dryer Filters
19	5308000039 Frigidaire Refrigerator Screw
20	BRACKET-CONDENSER MOUNTING (4)
21	BLOCK, EVAPORATOR, RH
22	PLATE, COMPRESSOR MOUNTING
23	DEFROST PAN
24	NUT, LOCK
25	BLOCK, EVAPORATOR, LH
26	5317842502 Frigidaire Defrost Heater
27	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
28	HEAT-EXCH
29	EVAPORATOR
30	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
