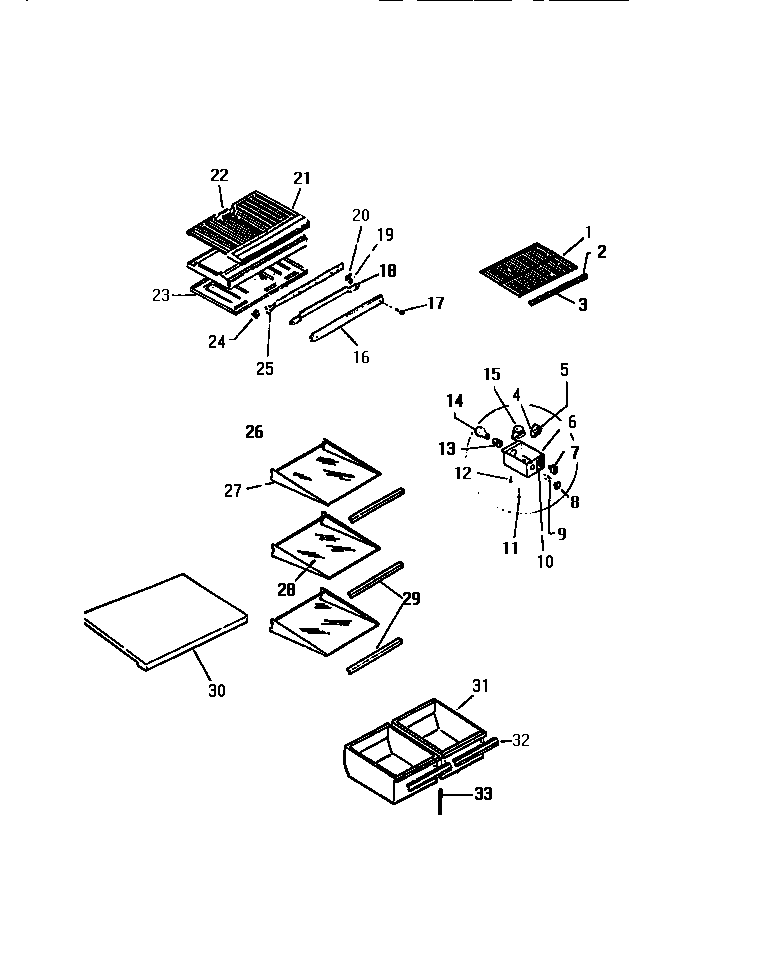

TGK180AN6W 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

Position	Product
*90126	WCI G183100-19
*90123	BUTTON, PLUG, WATER INLET
*90124	BUTTON, PLUG, ICE MAKER HARNESS
*90154	BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
*90153	BUTTON, PLUG, LINER (2)
*90150	WCI G164571
*90152	HARNESS, WIRING
*90151	SERVICE DATA SHEET
*90125	SCREW (5)
*90122	WCI G186589
1	WCI G177059-02
2	WCI G166495-01
3	WCI G172434-20
4	TUBE
5	COLD CONTROL
6	WCI G174655-15
7	WCI G177727-01
8	KNOB CONTROL
9	WCI G107080
10	WCI G178294-01
11	5304455649 Frigidaire Refrigerator Screw
12	5304455650 Frigidaire Refrigerator Screw
13	SOCKET LIGHT
14	316538904 Frigidaire Oven Lamp Light
15	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16	MULLION-WHTE
17	SCREW, BRACKET MOUNTING (4)
18	STRAP, MULLION MOUNTING
19	WASHER (2)
20	SPACER, MULLION (2)
21	DIVIDER, CENTER
22	BOTTOM, FC
23	TOP, PC
24	5309918806 Frigidaire Refrigerator Light Switch Door
25	WCI G177254
26	TRIM-REAR
27	FRAME, SHELF (3)
28	GLASS, SHELF (3)
29	WCI G172434-25
30	WCI G178216-01
31	PAN, CRISPER (2)
32	WCI G161013-61
33	WCI G136310-02
