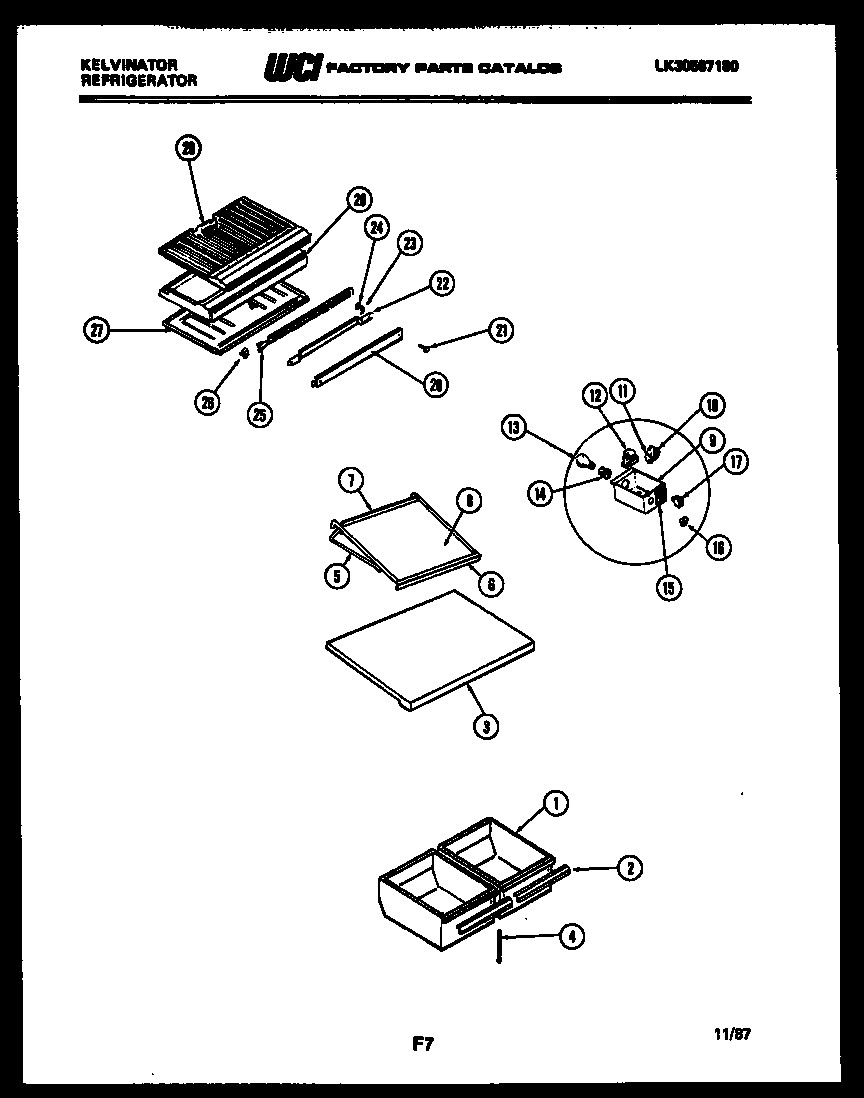

TGK180AN7W 04 – SHELVES AND SUPPORTS

Products

Position	Product
*12783	HARNESS, WIRING
1	PAN, CRISPER (2)
2	WCI G161013-61
3	WCI G178216-01
4	SUPPORT, CRISPER COVER
5	FRAME, SHELF (3)
6	WCI G172434-25
7	TRIM-REAR
8A	CLIP, SHELF (8)
8	GLASS, SHELF (3)
9A	5304455650 Frigidaire Refrigerator Screw
9	WCI G174655-15
10	CONTROL
10A	WCI G107080
11	TUBE
12A	5304455649 Frigidaire Refrigerator Screw
12	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
13	316538904 Frigidaire Oven Lamp Light
14	SOCKET LIGHT
15	WCI G178294-01
16	KNOB CONTROL
17	SWITCH SLIDE
18	MULLION, WHITE
19	SCREW, BRACKET MOUNTING (4)
20	STRAP, MULLION MOUNTING
21	WASHER (2)
22	SPACER, MULLION (2)
23	WCI G177254
24	5309918806 Frigidaire Refrigerator Light Switch Door
25A	SCREW (5)
25	TOP, PC
26	DIVIDER, CENTER
27	BOTTOM, FC
