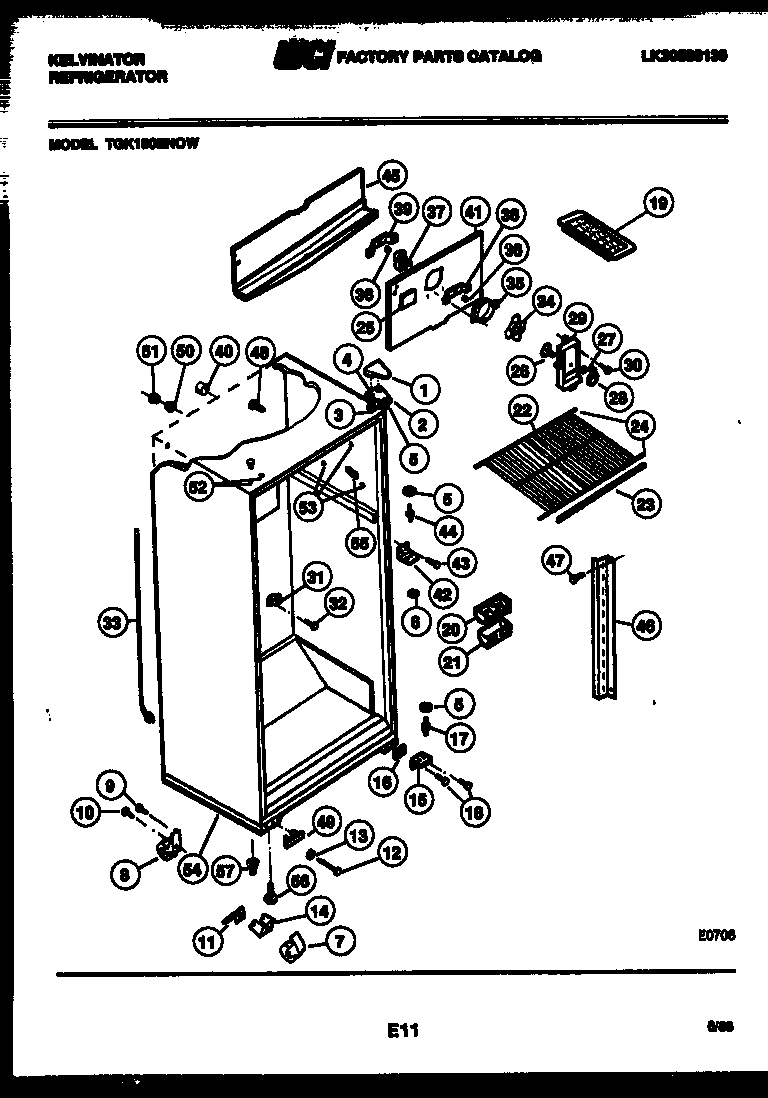

TGK180EN0D 03 – CABINET PARTS

Products

PositionProduct
*42345BUTTON, PLUG, LINER (2)
*42348BUTTON, LINER
*42348TAPPING, PLATE (2)
1COVER HINGE, COFFEE
2BRACKET, TOP HINGE
3WCI G183861
4241710601 Frigidaire Refrigerator Screw
5WCI G103903
6WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
7ROLLER FRONT, ADJUSTABLE (2)
8ROLLER, REAR (2)
10BOLT ROLLER (2)
11SPRING-ROLLER (2)
12BOLT-ROLLER (2)
13WASHER
14SUPPORT, ROLLER (2)
15BRACKET-HINGE
16SHIM, HINGE
175303001321 Frigidaire Refrigerator Lower Hinge Pin
19215667501 Frigidaire Refrigerator Ice Tray Primary
20DEFLECTOR AIR
21WCI G162178
22WCI G177059-02
23TRIM, SHELF, FREEZER
24WCI G166495-01
25BUTTON DECORATIVE PLUG
26DAMPER FAN COVER
27NUT, DAMPER MOUNTING
28KNOB-DAMPER
29WCI G163061-86
305304455650 Frigidaire Refrigerator Screw
31SPOUT DRAIN TUBE
32PIN PUSH SPOUT (2)
33TUBE, DRAIN
33ARING, SEAL (NON-ILLUSTRATED)
345308000010 Frigidaire Refrigerator Evaporator Fan Blade
35RING, FAN ORIFICE
36G187559 Frigidaire Refrigerator Bushing
375300158289 Frigidaire Evaporator Fan Motor
38WCI G185302
39B5304455651 Frigidaire Refrigerator Screw
39AWCI G164571
39WCI G185303
40TUBE, INSULATION (2)
41ANUT, ORIFICE (2)
41WCI G177529
42AWASHER (2)
42BRACKET, HINGE CENTER
43SCREW, BRACKET MOUNTING (4)
44WCI G142220
45WCI G177534
46CHANNEL, SHELF (2)
475304455852 Frigidaire Refrigerator Screw
48WCI G163669
49WCI G166912
50WCI G174733
51WCI G174734
52WCI G174747-11
535304509705 Frigidaire Refrigerator Grommet
53A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
54WCI G490004-02
55TRIM-CORNER, ALMOND (4)
56LEG-LEVELING (2)
57NUT, ANCHOR (2)
