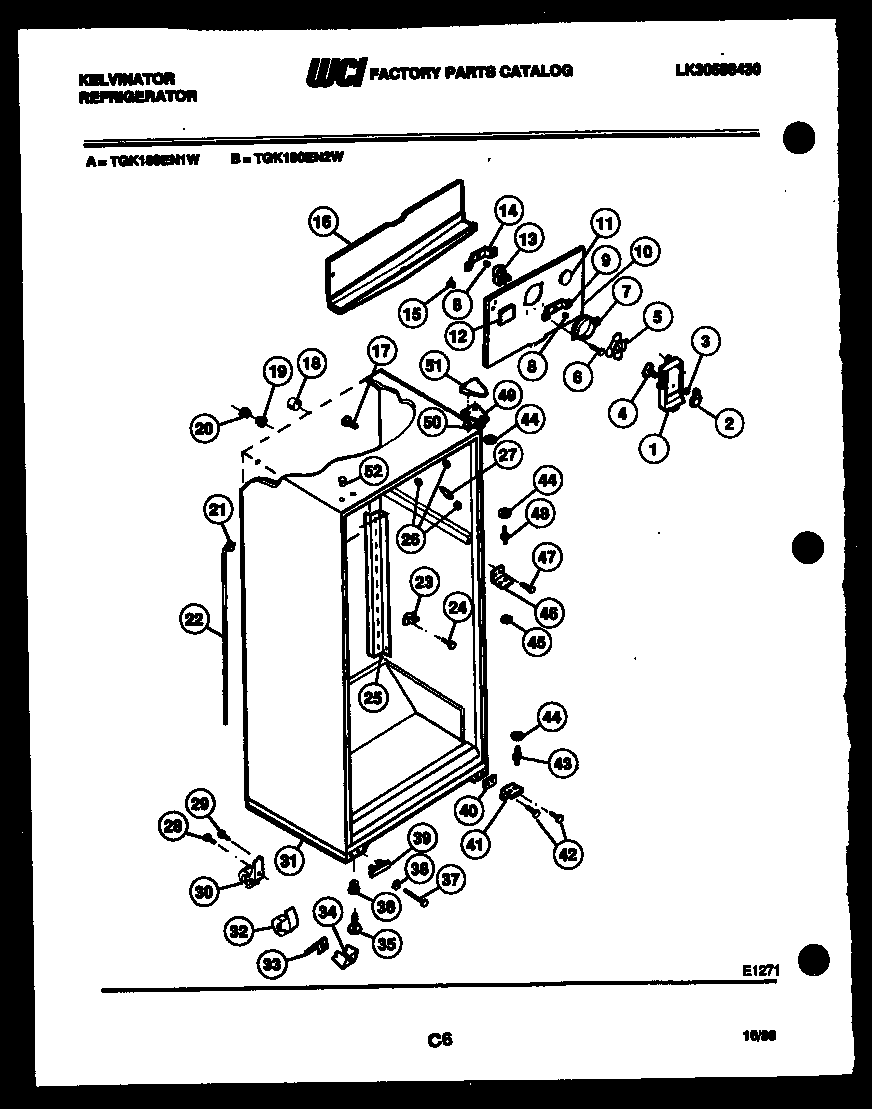

TGK180EN2V 03 – CABINET PARTS

Products

Position	Product
1	WCI G163061-86
1A	5304455650 Frigidaire Refrigerator Screw
2	KNOB-DAMPER
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI G185302
10A	NUT, ORIFICE (2)
10	WCI G177529
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	BUTTON DECORATIVE PLUG
13	WCI G177301
14	WCI G185303
15A	5304455651 Frigidaire Refrigerator Screw
15	WCI G164571
16	WCI G177534
17	WCI G163669
18	TUBE, INSULATION (2)
19	WCI G174733
20	WCI G174734
21	RING, SEAL (NON-ILLUSTRATED)
22	TUBE, DRAIN
23	SPOUT DRAIN TUBE
24	PIN PUSH SPOUT (2)
25A	5304455852 Frigidaire Refrigerator Screw
25	CHANNEL, SHELF (2)
26	5304509705 Frigidaire Refrigerator Grommet
26B	BUTTON, LINER
26A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
27	TRIM CORNER (4), AVOCADO
28	BOLT ROLLER (2)
30	ROLLER, REAR (2)
31	WCI G490004-02
32	ROLLER FRONT, ADJUSTABLE (2)
33	SPRING-ROLLER (2)
34	SUPPORT, ROLLER (2)
35	LEG-LEVELING (2)
36	NUT, ANCHOR (2)
37	BOLT-ROLLER (2)
38	WASHER
39	WCI G166912
40	SHIM, HINGE
40A	TAPPING, PLATE (2)
41	BRACKET-HINGE
43	5303001321 Frigidaire Refrigerator Lower Hinge Pin
44	WCI G103903
45	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
46	BRACKET, HINGE CENTER
47	SCREW, BRACKET MOUNTING (4)
47A	WASHER (2)
48	WCI G142220
49	BRACKET, TOP HINGE
49A	241710601 Frigidaire Refrigerator Screw
50	WCI G183861
51	COVER, TOP HINGE, AVOCADO
52	WCI G174747-08
