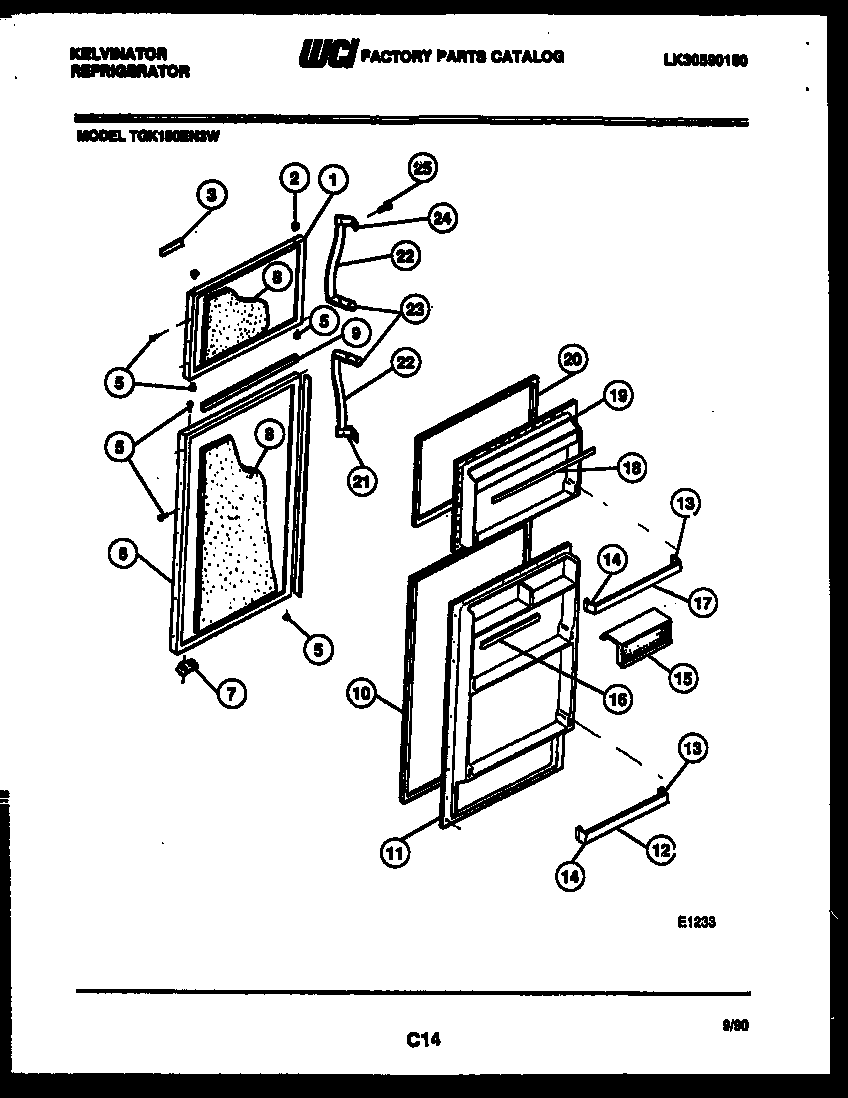

TGK180EN3D 02 – DOOR PARTSadmin2025-04-26T09:03:22+00:00TGK180EN3D 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WCI 3916272 |
| 2 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 3 | NAMEPLATE-ASSY |
| 5 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 6 | REFR DOOR-ALMOND |
| 6A | BEARING-HINGE |
| 7 | WCI 5308000255 |
| 8 | INSULATION-BULK (NON-ILLUSTRATED) |
| 9 | TRIM-REFRIGERATOR DOOR |
| 10 | GASKET-REFRIG DOOR |
| 11 | INNER PANEL-REFR |
| 12 | WCI 3015061 |
| 13 | WCI 5317828701 |
| 14 | WCI 5317828401 |
| 15 | DOOR, DAIRY |
| 16 | WCI 3015603 |
| 17 | WCI 3015060 |
| 18A | TAPE, ADHESIVE, 60`` LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC |
| 18 | WCI 3015063 |
| 19 | 218843801 Frigidaire Refrigerator Screw |
| 19 | INNER PANEL-FRZR |
| 20 | WCI 5303001486 |
| 21 | HANDLE, END-BOTTOM |
| 22 | WCI 5303201377 |
| 22 | TRIM INSERT-GRIP (2) |
| 23 | WCI 5318945301 |
| 24 | HANDLE END-TOP |
| 25 | WCI 5308011745 |
