TGK180EN3D 04 – SHELVES AND SUPPORTS

TGK180EN3D 04 – SHELVES AND SUPPORTS

Written by

in

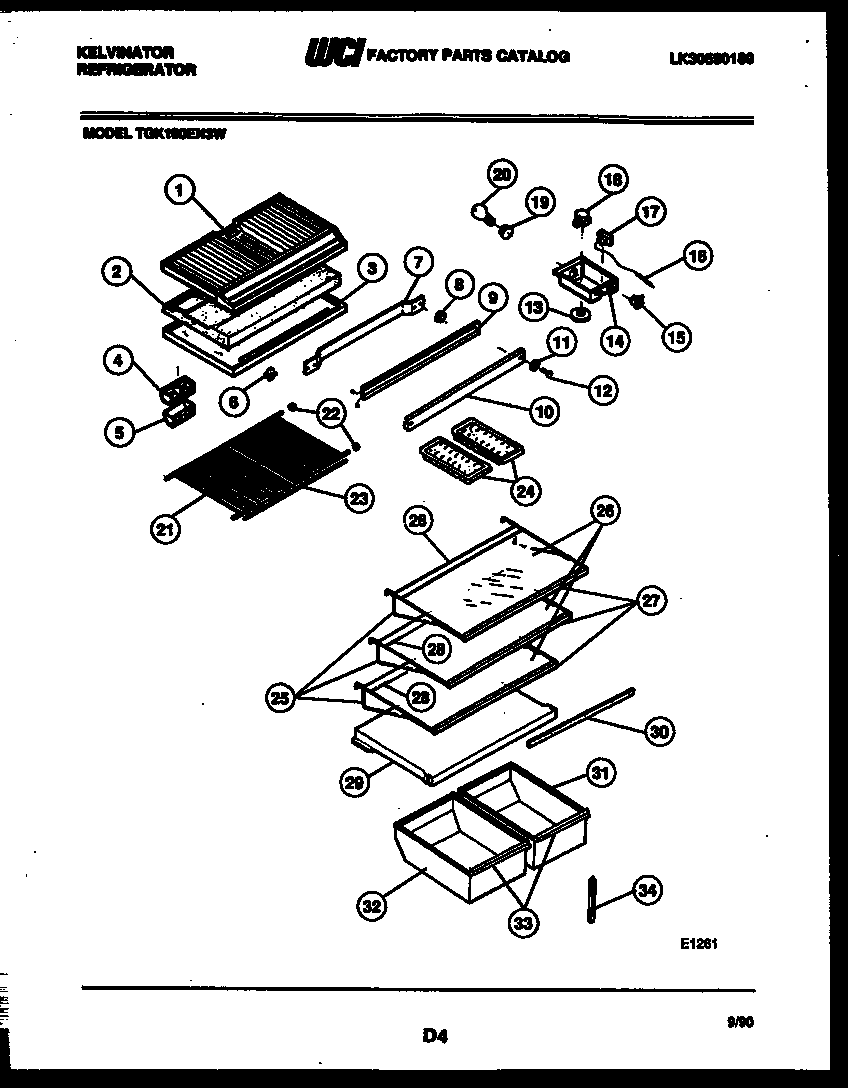

TGK180EN3D 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303001505
2DIVIDER, STYROFOAM
2AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
3TOP PANEL-REFR, W/SNAP BUSHING
3AWCI 5303001380
4AIR DEFLECTOR
5COVER – AIR DEFLECTOR
65309918806 Frigidaire Refrigerator Light Switch Door
7WCI 5308010008
8SPACER-MULLION MTG, STEEL
9WCI 5308002662
10WCI 5303200370
11WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
12WCI 5308012258
13WCI 5308010011
14WCI 5317672203
14B5304455650 Frigidaire Refrigerator Screw
14ALABEL
15SWITCH-ENERGY SAVER, SLIDE TYPE
16TUBE
17WCI 5303200810
17AWCI 5303001260
18A5304455649 Frigidaire Refrigerator Screw
18215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
19SOCKET-LIGHT/LAMP
20316538904 Frigidaire Oven Lamp Light
21WCI 5303210761
22END CAP-SHELF,PROTECTOR
23WCI 5303210762
24215667501 Frigidaire Refrigerator Ice Tray Primary
25FRAME-FULL SHELF
26AWCI 5303209274
26WCI 5303210775
27WCI 5303210773
28WCI 5303210774
29COVER-CRISPER
30GASKET COVER (NON-ILLUSTRATED)
31PAN-CRISPER
32PAN-CRISPER
33TRIM (2)
34SUPPORT-CRISPER CVR, ADJUSTABLE
