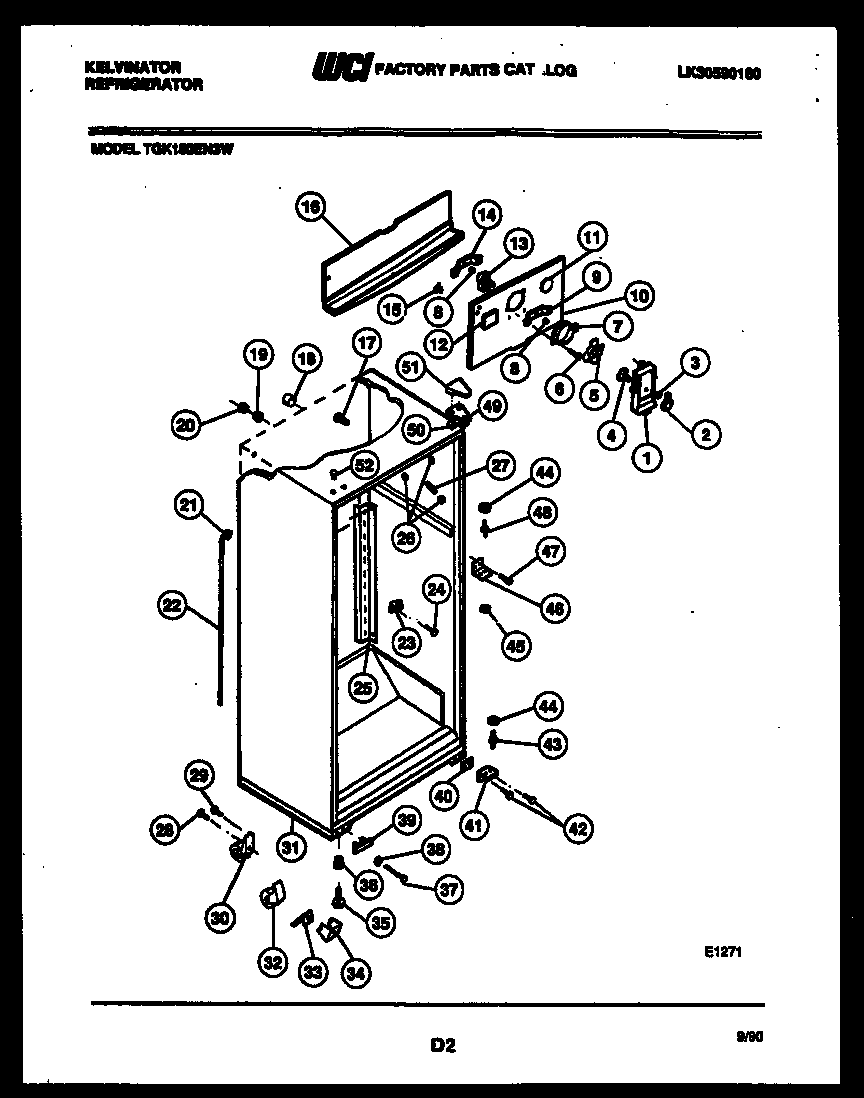

TGK180EN3V 03 – CABINET PARTS

Products

Position	Product
*14655	PLUG, BUTTON, CABINET LINER (NI)
*14655	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1	WCI G163061-86
2	WCI 530800081
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	218843801 Frigidaire Refrigerator Screw
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303001226
10	WCI 5308009771
10B	5304455650 Frigidaire Refrigerator Screw
10A	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
11	5303208309 Frigidaire Refrigerator Plug Hole
12	BUTTON - DECORATIVE PLUG
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI 5303001227
15	WCI 5308000107
16	WCI 5303001470
17	SUPPORT-COIL COVER
18	TUBE-RUBBER
19	WCI 5303001286
20	WCI 5303001287
21	WCI 5303207353
22	WCI 5303210377
23	WCI 5308000056
24	WCI 5303001361
25	CHANNEL, RH & LH
25A	5304455852 Frigidaire Refrigerator Screw
26A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
26	5304509705 Frigidaire Refrigerator Grommet
27	CORNER
28	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
29	5304455651 Frigidaire Refrigerator Screw
30	WCI 5308009773
31	CABINET BASE
32	WCI 5308009760
33	WCI 5308009790
34	SUPPORT, BASE (2)
35	SCREW-LEVELING (4)
36	WCI 5308003584
37	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
38	WCI 5308011326
39	COVER-HOLE, LOWER HINGE
40	SHIM-LOWER HINGE
41	HINGE BRACKET - BOTTOM
42	241710601 Frigidaire Refrigerator Screw
43	5303001321 Frigidaire Refrigerator Lower Hinge Pin
44	WASHER, .34 X .62 X .05, NYLON
45	WCI 5308000186
46	BRACKET-CTR HINGE
47	WCI 5308012258
47A	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
48	WCI 5308000184
49	BRACKET-UPPER HINGE
50	SHIM - UPPER HINGE
51	COVER-HINGE-AVOCADO
52	BUTTON-HINGE-AVOCADO
