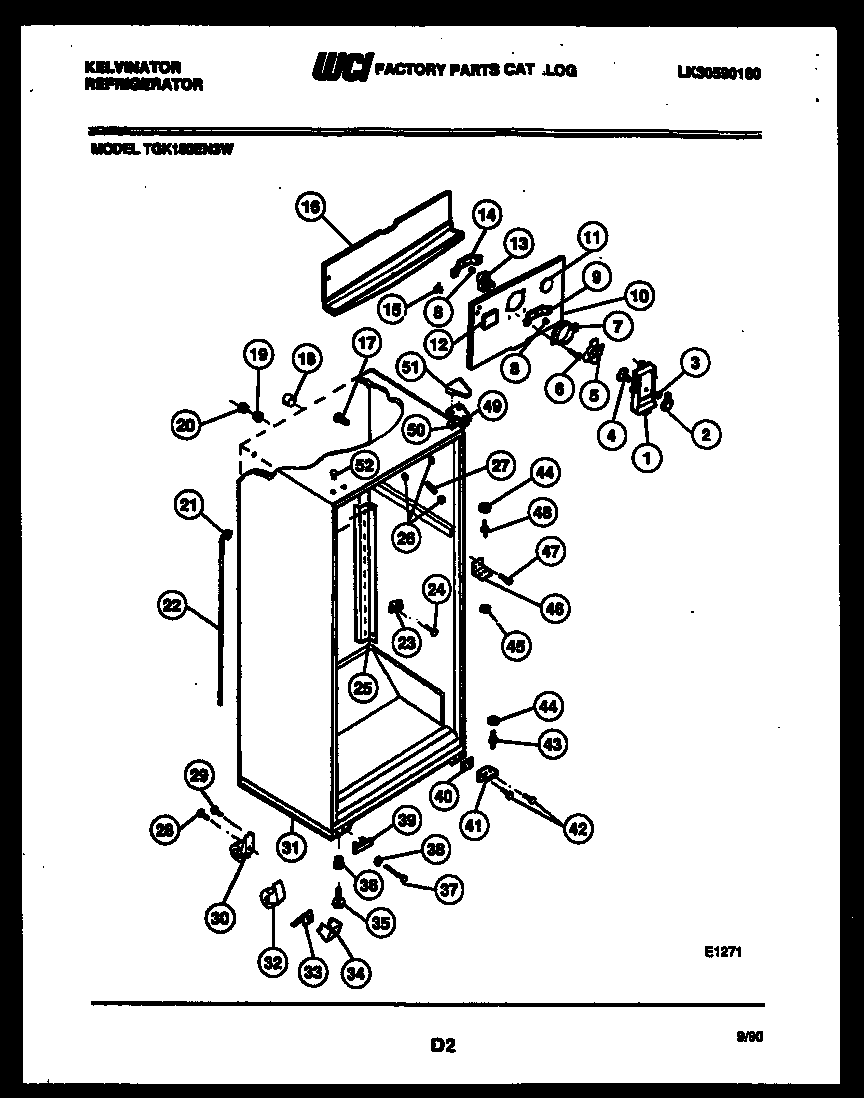

TGK180EN3W 03 – CABINET PARTS

TGK180EN3W 03 – CABINET PARTS

Written by

in

TGK180EN3W 03 – CABINET PARTS

Products

PositionProduct
*14655PLUG, BUTTON, CABINET LINER (NI)
*14655TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1WCI G163061-86
2WCI 530800081
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6218843801 Frigidaire Refrigerator Screw
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303001226
10B5304455650 Frigidaire Refrigerator Screw
10WCI 5308009771
10ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
12BUTTON – DECORATIVE PLUG
135300158289 Frigidaire Evaporator Fan Motor
14WCI 5303001227
15WCI 5308000107
16WCI 5303001470
17SUPPORT-COIL COVER
18TUBE-RUBBER
19WCI 5303001286
20WCI 5303001287
21WCI 5303207353
22WCI 5303210377
23WCI 5308000056
24WCI 5303001361
25A5304455852 Frigidaire Refrigerator Screw
25CHANNEL, RH & LH
265304509705 Frigidaire Refrigerator Grommet
26A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
27TRIM-CABINET CORNER, WHITE
28BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
295304455651 Frigidaire Refrigerator Screw
30WCI 5308009773
31CABINET BASE
32WCI 5308009760
33WCI 5308009790
34SUPPORT, BASE (2)
35SCREW-LEVELING (4)
36WCI 5308003584
37BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
38WCI 5308011326
39COVER-HOLE, LOWER HINGE
40SHIM-LOWER HINGE
41HINGE BRACKET – BOTTOM
42241710601 Frigidaire Refrigerator Screw
435303001321 Frigidaire Refrigerator Lower Hinge Pin
44WASHER, .34 X .62 X .05, NYLON
45WCI 5308000186
46BRACKET-CTR HINGE
47AWASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
47WCI 5308012258
48WCI 5308000184
49BRACKET-UPPER HINGE
50SHIM – UPPER HINGE
51COVER-UPPER HINGE, WHITE
52PLUG-BUTTON, WHITE
