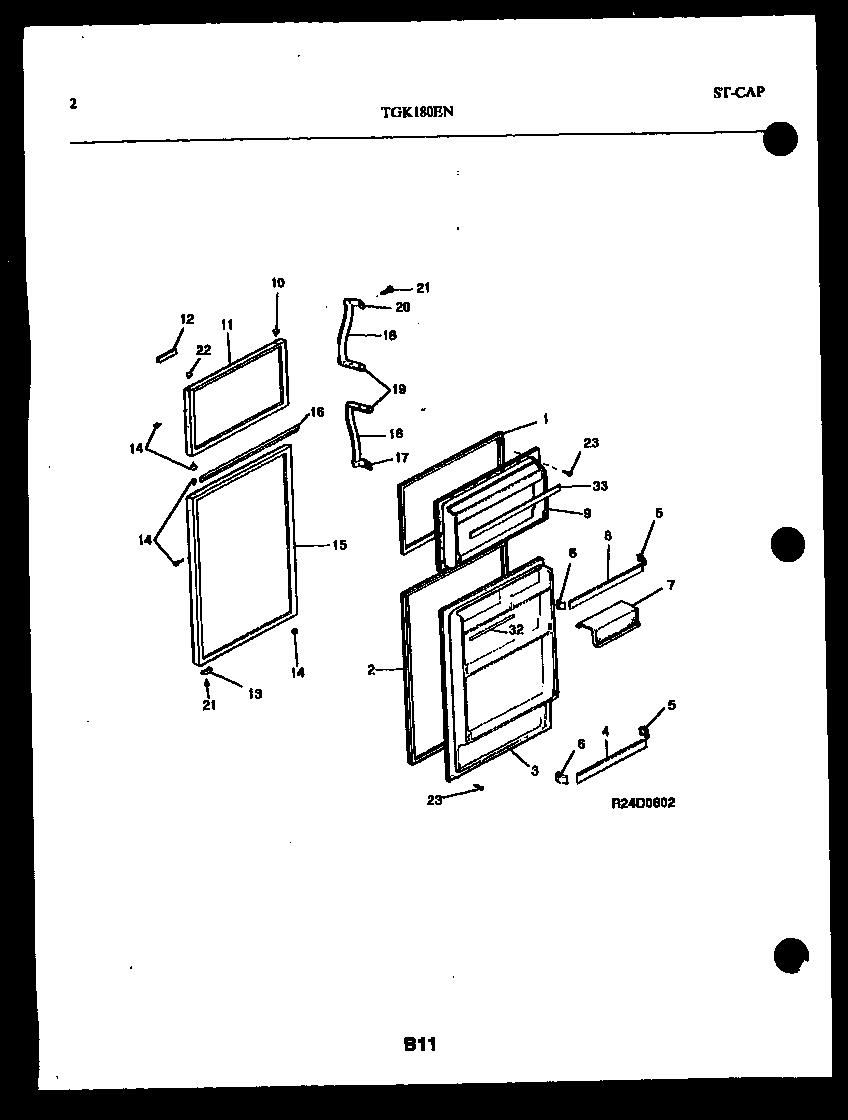

TGK180EN4D 02 – DOOR PARTS

Products

Position	Product
*19272	TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
*19272	INSULATION-BULK (NON-ILLUSTRATED)
1	WCI 5303001486
2	GASKET-REFRIG DOOR
3	INNER PANEL-REFR
4	WCI 3015061
5	WCI 5317828701
6	WCI 5317828401
7	WCI 5303270443
8	WCI 3015060
9	INNER PANEL-FRZR
10	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11	WCI 3916272
12	NAMEPLATE-ASSY
13A	WCI 5308000255
13	DOOR STOP, REFR SECTION
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	REFR DOOR-ALMOND
16	TRIM-REFRIGERATOR DOOR
17	HANDLE, END-BOTTOM
18A	TRIM INSERT-GRIP (2)
18	WCI 5303201377
19	WCI 5318945301
20	HANDLE END-TOP
21	WCI 5308011745
22	BEARING-HINGE
23	5304455651 Frigidaire Refrigerator Screw
32	WCI 3015603
33	WCI 3015063
