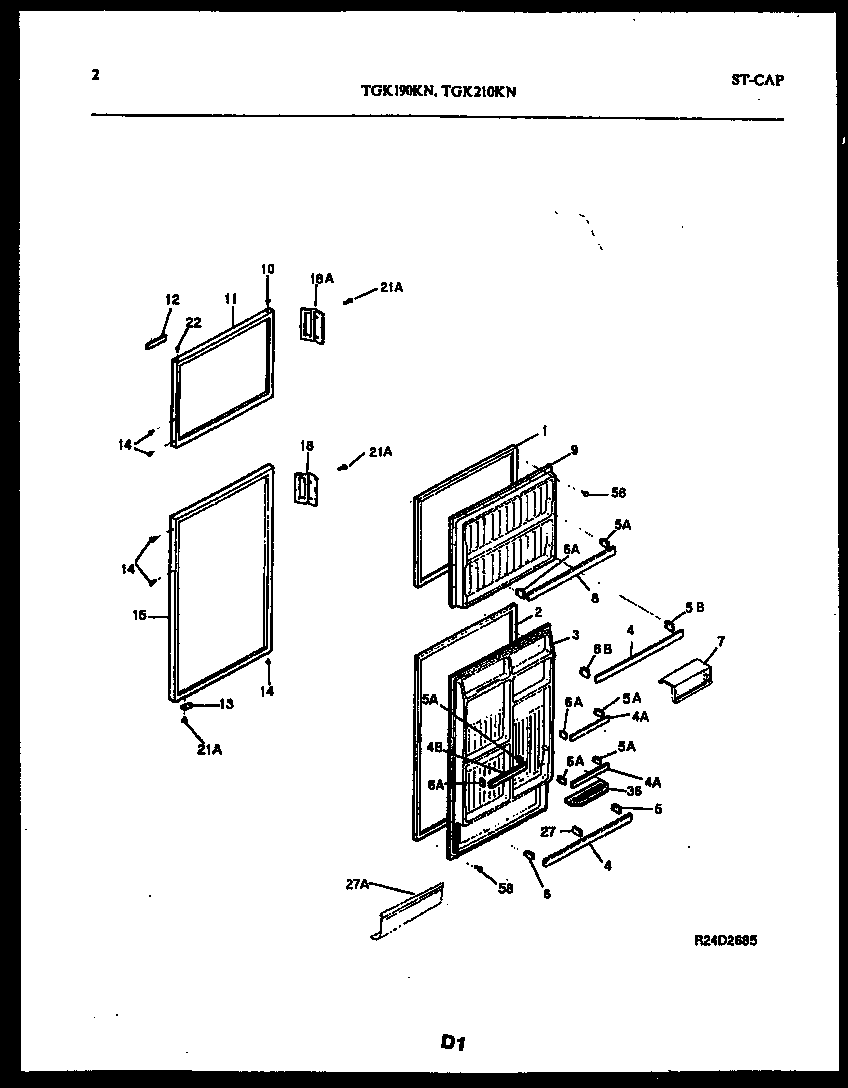

TGK190KN0D 02 – DOOR PARTS

TGK190KN0D 02 – DOOR PARTS

Written by

in

TGK190KN0D 02 – DOOR PARTS

Products

PositionProduct
1WCI 5303018791
2WCI 5303018792
3PANEL, INNER DOOR, REFR
4ARACK-DOOR, SHORT, NARROW, (2)
4BRACK-DOOR, MEDIUM-WIDTH, NARROW
4RACK-DOOR, FULL-WIDTH, WIDE
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5A3206165 Frigidaire Bar Endcap Right Hand
5SUPPORT-DOOR RACK, RH
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6SUPPORT-DOOR RACK, LH
7WCI 5303209211
8RACK-DOOR, FULL-WIDTH, NARROW
9PANEL, INNER DOOR, FRZR
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND
12WCI 5303273164
13DOOR STOP, REFR SECTION
13AWCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
