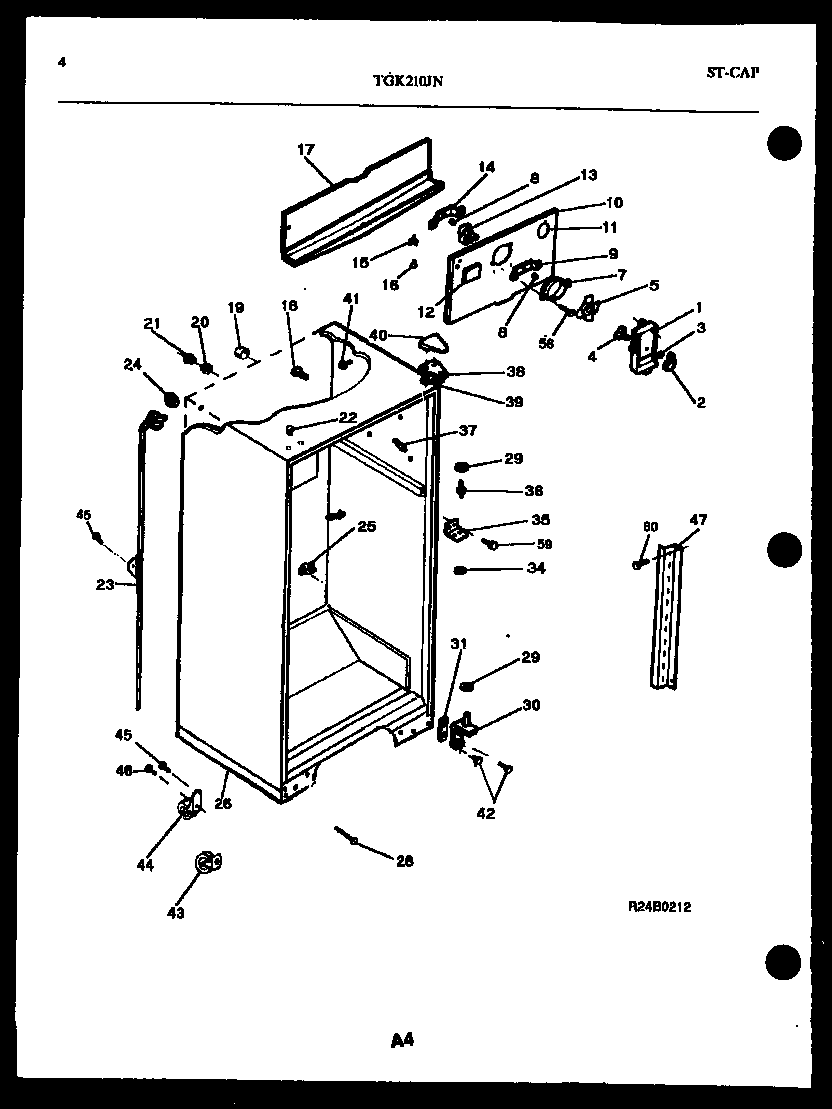

TGK210JN0D 03 – CABINET PARTSadmin2025-04-26T09:00:44+00:00TGK210JN0D 03 – CABINET PARTS
Products
| Position | Product |
|---|
| *20445 | TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED) |
| *20445 | TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED) |
| 1B | WCI 5303273169 |
| 1C | 5304455650 Frigidaire Refrigerator Screw |
| 1A | WCI 5303273168 |
| 1 | WCI 5308017405 |
| 2 | WCI 5308000081 |
| 3 | Nut,push-on |
| 4 | DAMPER-FAN COVER |
| 5 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 7 | RING-FAN ORIFICE |
| 8 | G187559 Frigidaire Refrigerator Bushing |
| 9 | WCI 5303205118 |
| 10 | COVER, COIL |
| 10A | NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED) |
| 11 | 5303208309 Frigidaire Refrigerator Plug Hole |
| 12 | BUTTON - DECORATIVE PLUG |
| 13 | 5300158289 Frigidaire Evaporator Fan Motor |
| 14 | BRACKET-MOTOR MTG, REAR |
| 15 | WCI 5308000107 |
| 16 | 5304455651 Frigidaire Refrigerator Screw |
| 17 | WCI 5303001470 |
| 18 | SUPPORT-COIL COVER |
| 19 | TUBE-RUBBER |
| 20 | WCI 5303001286 |
| 21 | WCI 5303001287 |
| 22 | PLUG-BUTTON, ALMOND, UPR HINGE HOLES |
| 23 | WCI 5303210377 |
| 24 | WCI 5303207353 |
| 25A | WCI 5303001361 |
| 25 | WCI 5308000056 |
| 26 | WCI 5303212487 |
| 28 | BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750 |
| 29 | WASHER, .34 X .62 X .05, NYLON |
| 30 | BRACKET-LOWER HINGE, W/ HINGE PIN |
