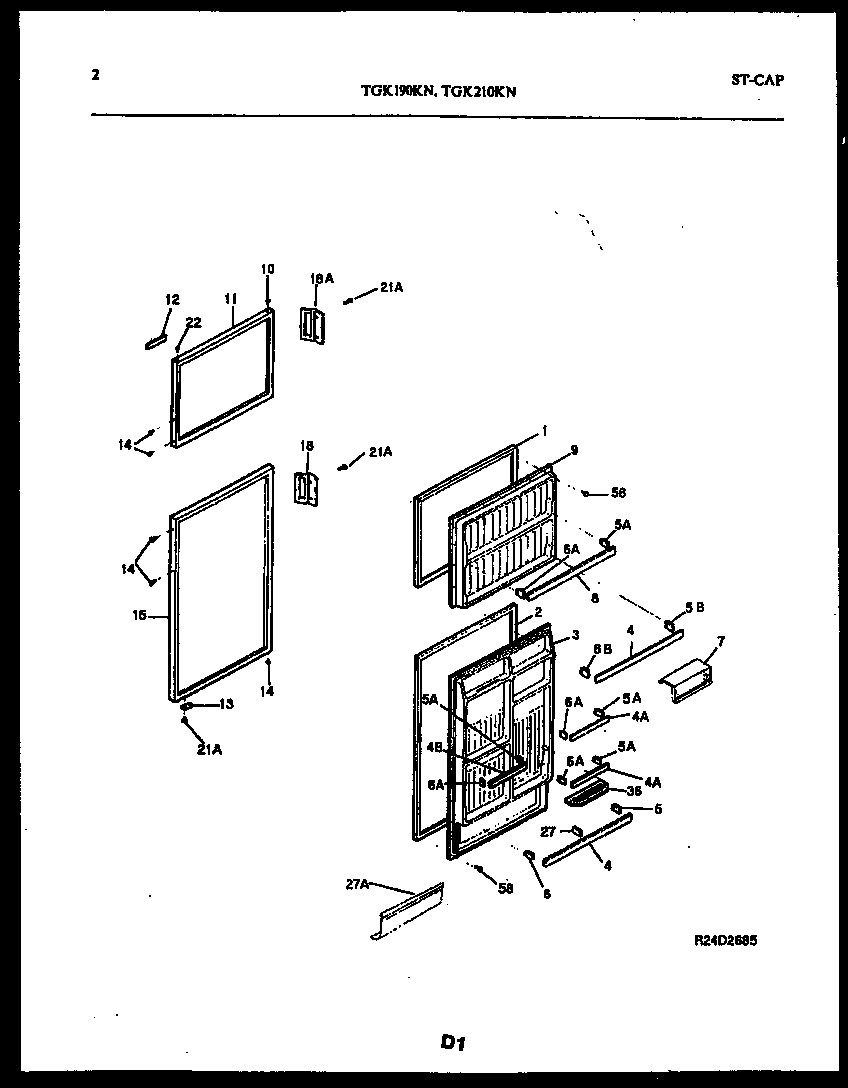

TGK210KN0D 02 – DOOR PARTS

TGK210KN0D 02 – DOOR PARTS

Written by

in

TGK210KN0D 02 – DOOR PARTS

Products

PositionProduct
1WCI 5318680314
2WCI 5303018792
3WCI 5303206513
4ARACK-DOOR, SHORT, NARROW, (2)
4RACK-DOOR, FULL-WIDTH, WIDE
4BWCI 5303206515
5SUPPORT-DOOR RACK, RH
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5A3206165 Frigidaire Bar Endcap Right Hand
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6SUPPORT-DOOR RACK, LH
7WCI 5303209211
8WCI 5303206511
9WCI 5303206509
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND
12WCI 5303273164
13DOOR STOP, REFR SECTION
13AWCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
