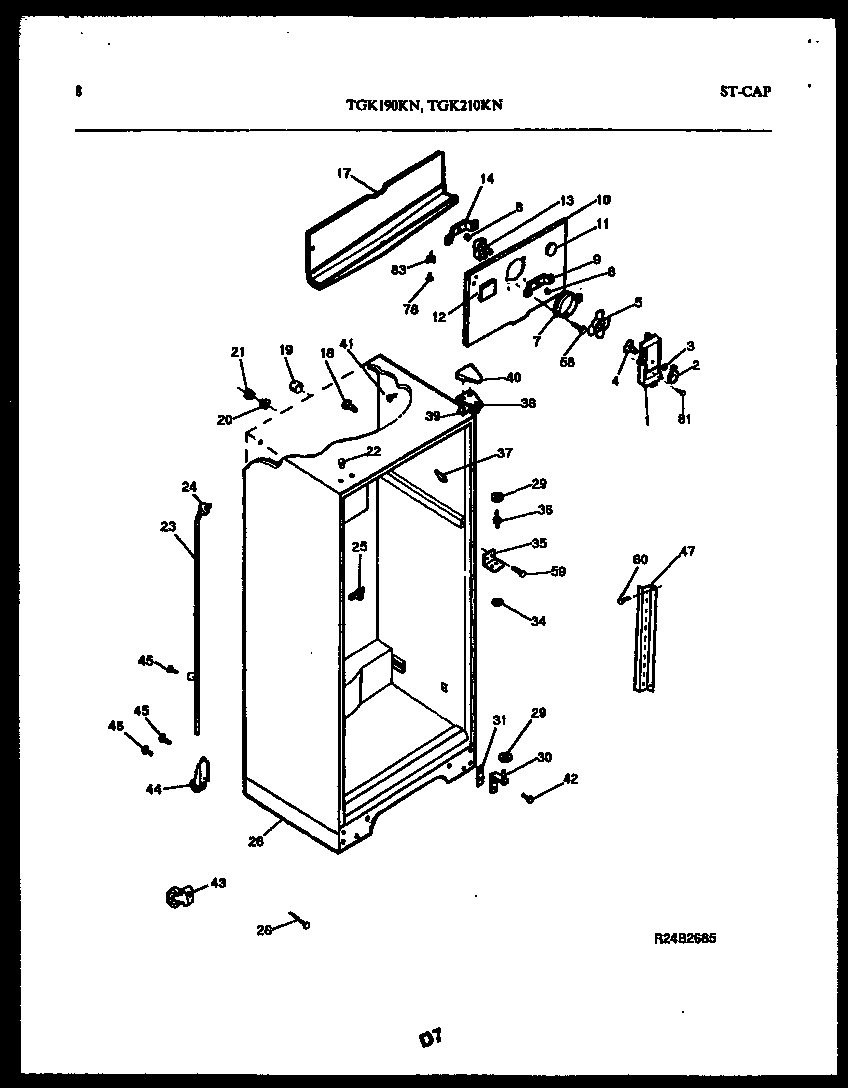

TGK210KN0D 05 – CABINET PARTS

Products

Position	Product
*27743	PLUG, BUTTON, CABINET LINER (NI)
31	WCI 5303212488
34	WCI 5308000186
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, ALMOND
38B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	BRACKET-UPPER HINGE
39	SHIM - UPPER HINGE
40	COVER-UPPER HINGE, ALMOND
41	5304509705 Frigidaire Refrigerator Grommet
41A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	241710601 Frigidaire Refrigerator Screw
43	WCI 5303212490
44	WCI 5308009773
45	5304455651 Frigidaire Refrigerator Screw
46	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47	CHANNEL, RH & LH
59	WCI 5308012258
60	5304455852 Frigidaire Refrigerator Screw
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
