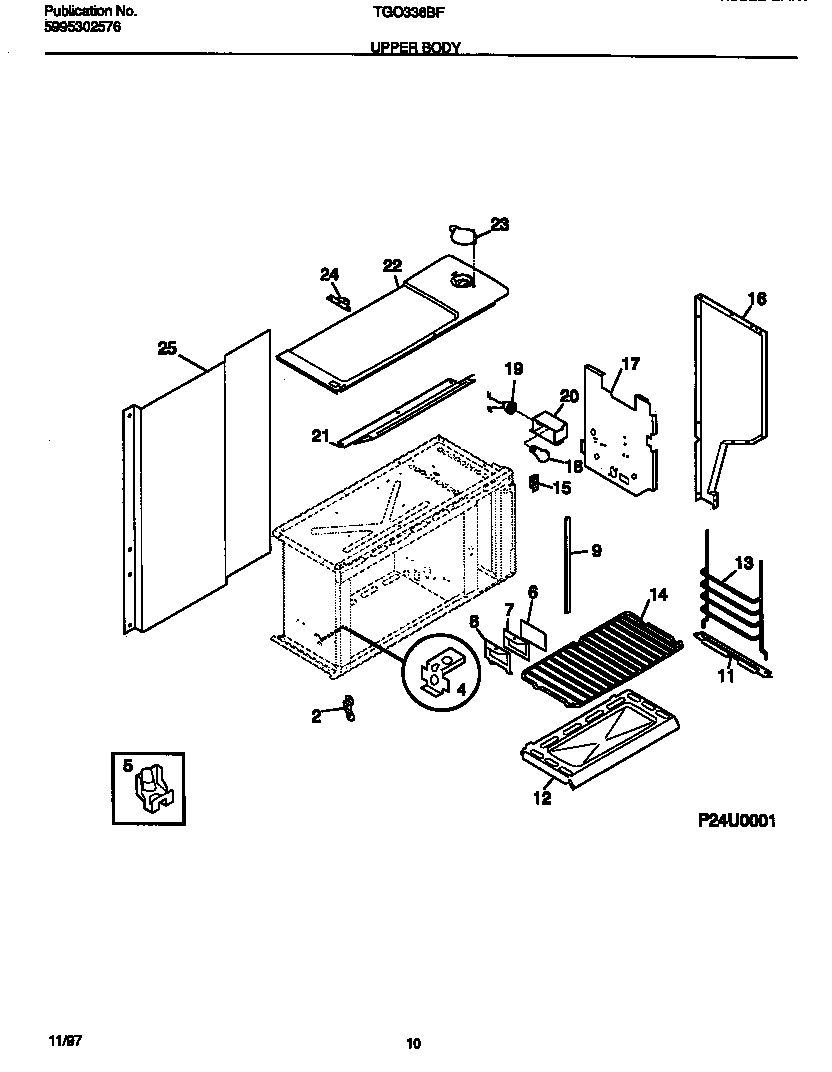

TGO336BFD1 06 – UPPER BODY

Products

Position	Product
*64978	PIN, HINGE (2)
*64984	WCI 318132601
*64987	318090310 Frigidaire Oven Latch
*64985	WCI 318132602
*64982	WCI 3204440
*64981	RETAINER OVEN BURN UPPER
*64980	BRKT-CONNEC MTG
*64979	INSUL-WOOL
*64983	Screw,cup pt ,8-18 x 0.375 ,chrome
*64986	5303013272 Frigidaire Oven Nut
2	HINGE-DOOR ASSY
4	WCI 08011665
5	5303284616 Frigidaire Range Bulb Clip Thermostat
6	GLASS-OVN LITE LENS
7	GSKT OVEN LIGHT
8	WCI 08011669
9	WCI 5303934092
11	WCI 318073101
12	WCI 318109801
13	GLIDE-OVEN RACK
14	RACK-OVEN, FLAT
15	STRIKE-DOOR
16	PANEL-BODYSIDE,ALMOND ,LH
16	WCI 318025902
17	SHIELD-WOOL
18	316538904 Frigidaire Oven Lamp Light
19B	SCREW-SOCKET, STARTER (NOT ILLUSTRATED)
19A	316116400 Frigidaire Oven Light Socket
20	BOX-LIGHT
21	FLUE BACK U/O
22	WCI 5303290177
23	WCI 318036701
24	WCI 5303290130
25	WCI 5303290095
