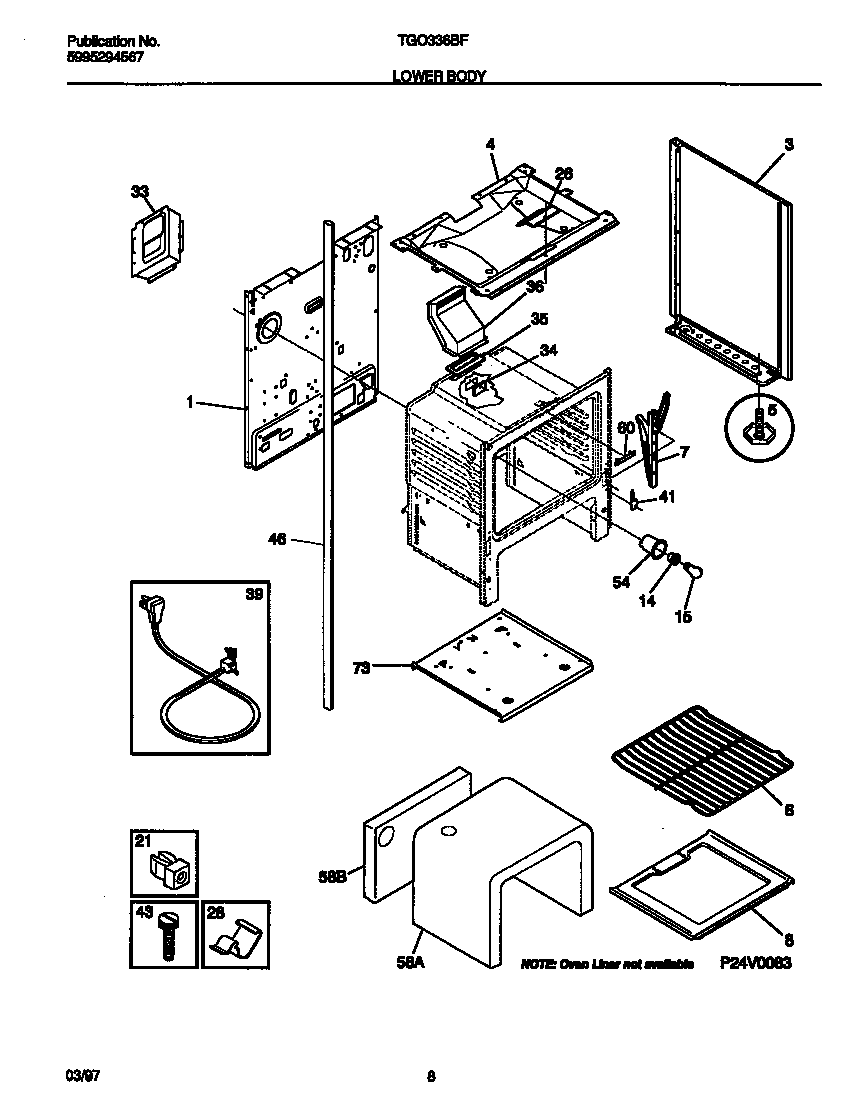

TGO336BFDB 05 – LOWER BODYadmin2025-04-26T09:00:55+00:00TGO336BFDB 05 – LOWER BODY
Products
| Position | Product |
|---|
| *54612 | Screw,cup pt ,8-18 x 0.375 ,chrome |
| *54609 | SHIELD-HEAT |
| *54611 | 316021105 Frigidaire Oven Screw |
| *54613 | WCI 5303280614 |
| *54610 | 316539800 Frigidaire Oven Retainer |
| *54614 | 5303284616 Frigidaire Range Bulb Clip Thermostat |
| 1 | WCI 316029412 |
| 2 | HINGE-DOOR ASSY |
| 3 | PANEL-BODYSIDE,ALMOND ,LH |
| 3 | WCI 316081030 |
| 4 | WCI 3011597 |
| 5C | NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) |
| 5B | 316116000 Frigidaire Screw |
| 5A | SCREW-LEVELING |
| 6 | 316067902 Frigidaire Oven Rack |
| 7 | Hinge,oven door ,(2) |
| 8B | 316064600 Frigidaire Oven Support |
| 8A | WCI 5303300406 |
| 14 | 316116400 Frigidaire Oven Light Socket |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 21 | SPACER-BODYSIDE, (8) |
| 26 | WCI 08067757 |
| 28 | CLIP-WIRE |
| 33 | WCI 316055601 |
| 34 | COVER-IGNITOR |
| 35 | 316542102 Frigidaire Flue Gasket |
| 36 | WCI 3131904 |
| 39A | 5304534000 Frigidaire Cord |
| 39B | WCI 08067961 |
| 41 | WCI 3131570 |
| 43 | 316282700 Frigidaire Oven Screw |
| 46A | WCI 5303208642 |
| 46B | TUBE-POST LH |
| 54 | WCI 5303271606 |
| 58 | INSUL - OVEN BACK (NON-ILLUSTRATED) |
| 58 | INSULATION, OVEN WRAPPER |
| 60 | COVER-OVEN FRONT |
| 73 | BASE-BROIL |
| 93 | WCI 316055501 |
