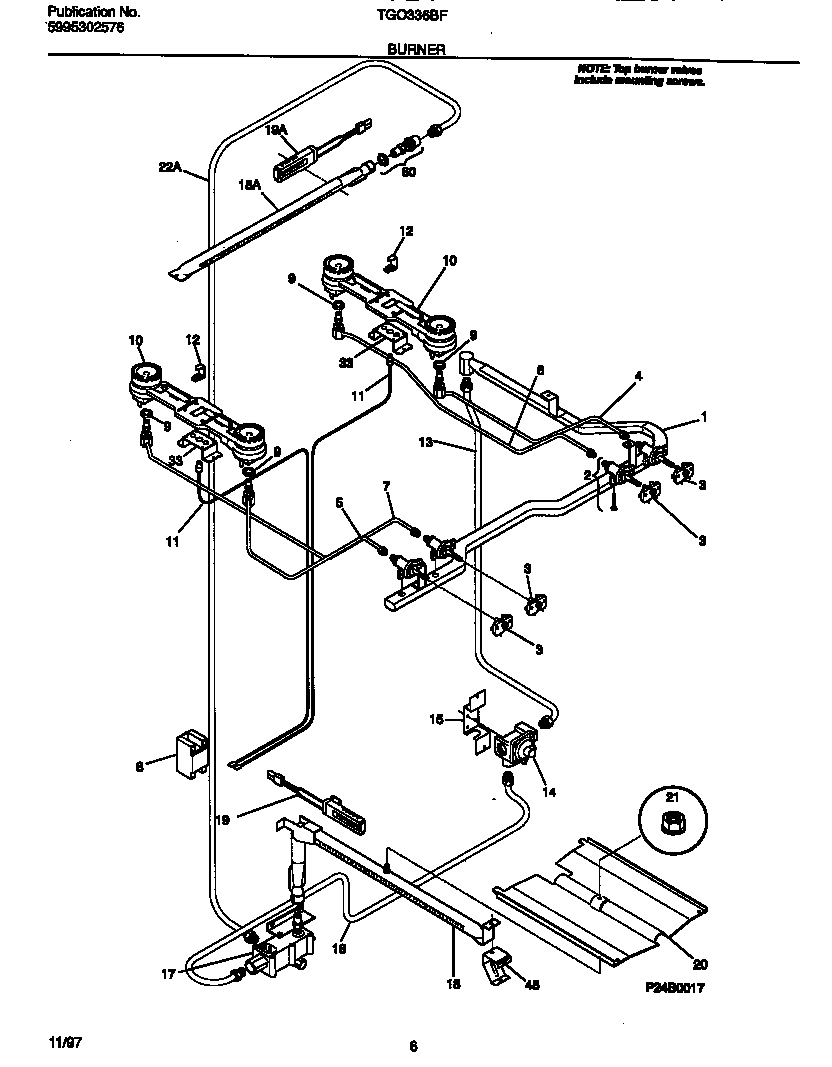

TGO336BFW1 04 – BURNER

TGO336BFW1 04 – BURNER

Written by

in

TGO336BFW1 04 – BURNER

Products

PositionProduct
*64968RETAINER-OVEN SPUD
*64970Screw,cup pt ,8-18 x 0.375 ,chrome
*64967BRKT MIXER
*64966WCI 316055500
*64969WCI 08068008
1WCI 316066201
2B316048200 Frigidaire Oven Screw
2AWCI 316098701
3BNUT, SPECIAL, INGITOR SW, (4) (NOT ILLUSTRATED)
3ASWITCH-IGNITER, (4)
4WCI 316051400
5WCI 316051401
6WCI 316051402
7WCI 316051403
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9NUT, SPECIAL
10WCI 316057100
11AWCI 316081700
11BWCI 316081701
123016993 Frigidaire Oven Retainer
13WCI 316065005
145304521339 Frigidaire Regulator
15B316021104 Frigidaire Oven Screw Assembly
15A316091600 Frigidaire Oven Bracket
16WCI 316065003
17B316089500 Frigidaire Oven Screw
17A5303208499 Frigidaire Safety Gas Valve
18BURNER-UPPER OVEN
18WCI 5303131634
195303935066 Frigidaire Oven Flat Igniter 17" Leads
19IGNITER-UPPER OVEN
20WCI 3203265
215303013272 Frigidaire Oven Nut
22WCI 316065001
33BRACKET BURNER MTG
48WCI 3018603
60WCI 316070300
