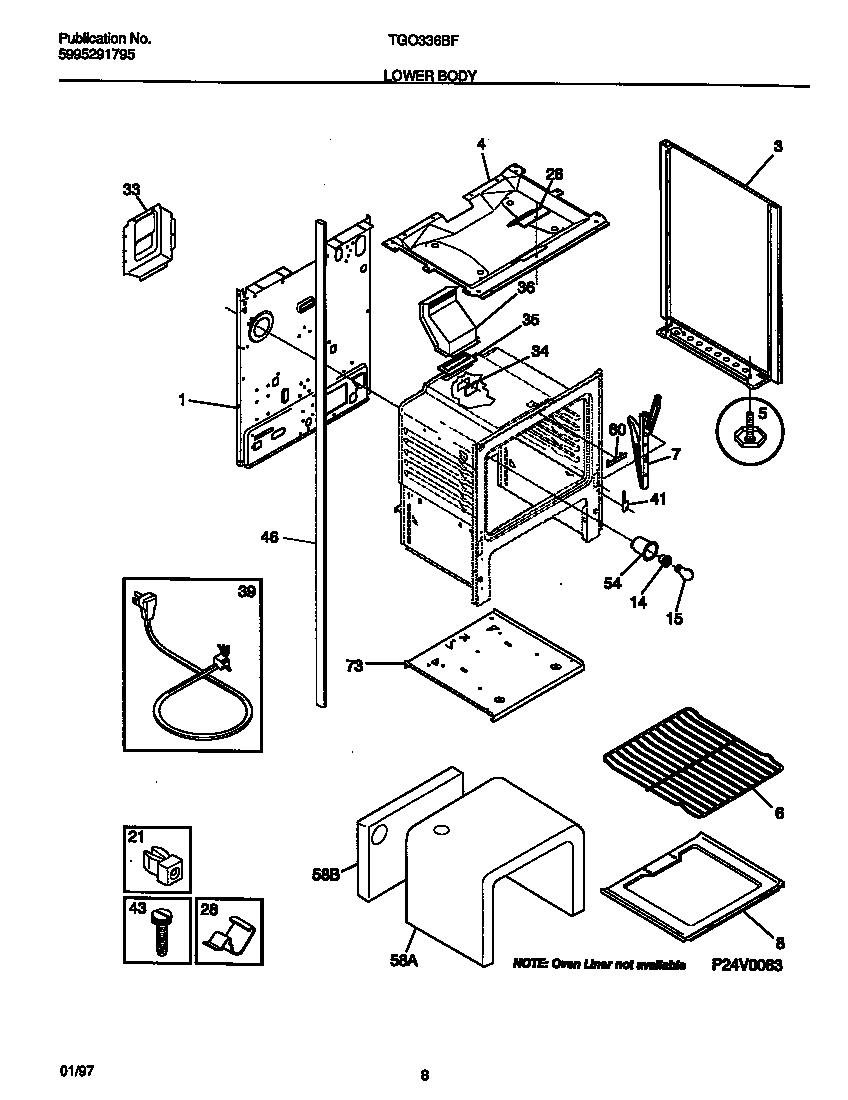

TGO336BFWA 05 – LOWER BODY

TGO336BFWA 05 – LOWER BODY

Written by

in

TGO336BFWA 05 – LOWER BODY

Products

PositionProduct
*90851Screw,cup pt ,8-18 x 0.375 ,chrome
*90849SHIELD-HEAT
*90853316021105 Frigidaire Oven Screw
*90852WCI 5303280614
*90850316539800 Frigidaire Oven Retainer
*908545303284616 Frigidaire Range Bulb Clip Thermostat
1WCI 316029412
2HINGE-DOOR ASSY
3WCI 316081028
3WCI 316081029
4WCI 3011597
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5B316116000 Frigidaire Screw
5ASCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8B316064600 Frigidaire Oven Support
8AWCI 5303300406
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26WCI 08067757
28CLIP-WIRE
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
39A5304534000 Frigidaire Cord
39BWCI 08067961
41WCI 3131570
43316282700 Frigidaire Oven Screw
46AWCI 5303208642
46BTUBE-POST LH
54WCI 5303271606
58INSUL – OVEN BACK (NON-ILLUSTRATED)
58INSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055501
