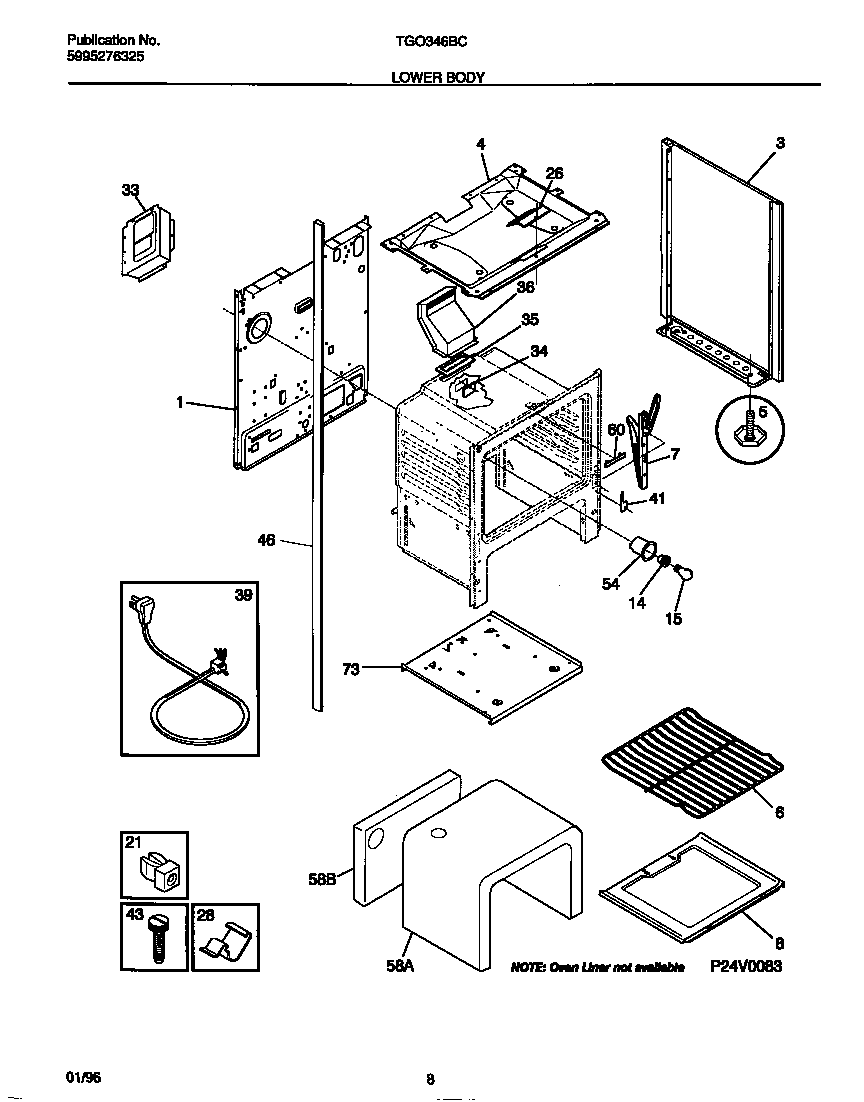

TGO346BCDB 05 – LOWER BODY

TGO346BCDB 05 – LOWER BODY

Written by

in

TGO346BCDB 05 – LOWER BODY

Products

PositionProduct
*43925316539800 Frigidaire Oven Retainer
*43926316021105 Frigidaire Oven Screw
*43927WCI 5303280614
1WCI 316029410
3WCI 316081007
3WCI 316081006
4WCI 3011597
5B316116000 Frigidaire Screw
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5ASCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8B316064600 Frigidaire Oven Support
8ASHIELD, OVEN BOTTOM
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26WCI 08067757
28CLIP-WIRE
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
39BWCI 08067961
39A5304534000 Frigidaire Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
46AWCI 5303208642
46BTUBE-POST LH
54WCI 5303271606
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
73BASE-BROIL
