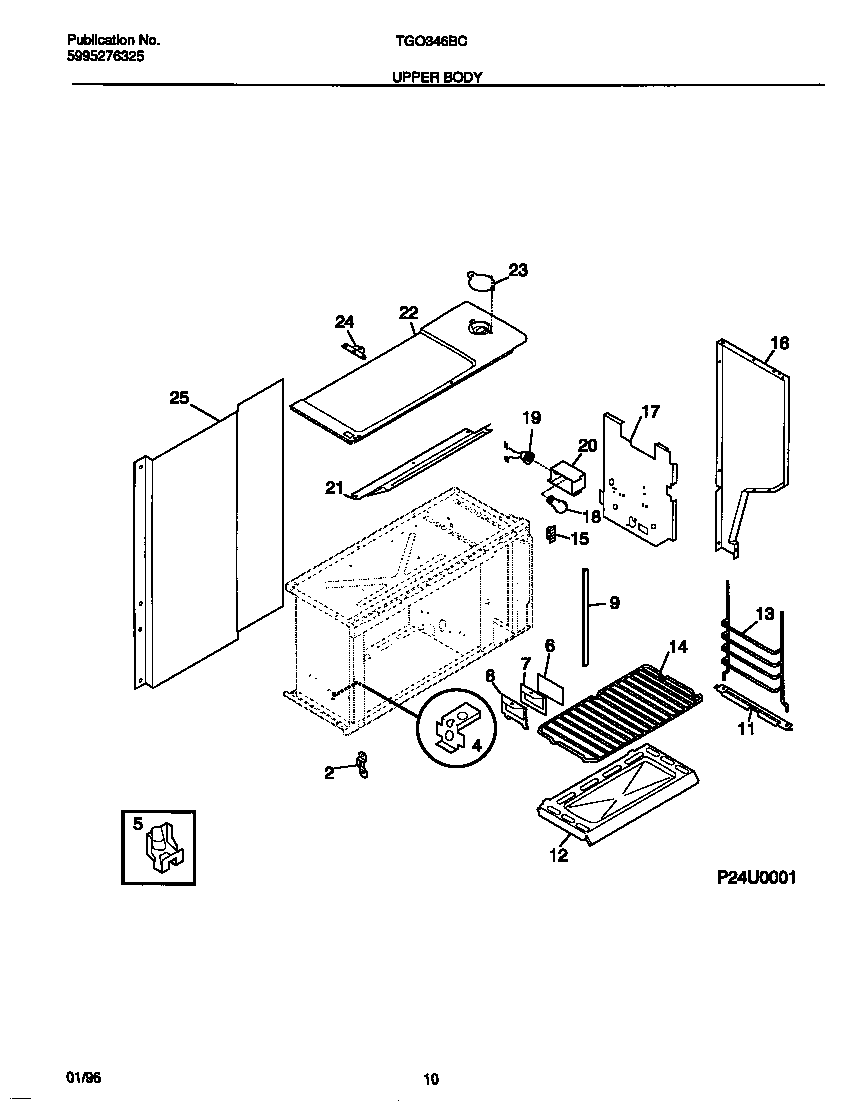

TGO346BCDB 06 – UPPER BODY

Products

Position	Product
*43928	5303300265 Frigidaire Oven Screw
*43934	WCI 3204440
*43933	RETAINER OVEN BURN UPPER
*43932	INSUL WOOL
*43931	INSUL O/U UPPER
*43930	BRKT-CONNEC MTG
*43929	INSUL-WOOL
*43935	PIN, HINGE (2)
2	HINGE-DOOR ASSY
4	WCI 08011665
5	5303284616 Frigidaire Range Bulb Clip Thermostat
6	GLASS-OVN LITE LENS
7	GSKT OVEN LIGHT
8	WCI 08011669
9	WCI 5303934092
11	GLIDE-OVEN BTM
12	WCI 3200488
13	WCI 08011674
14	RACK-OVEN, FLAT
16	PANEL-BODYSIDE, ALMOND, LH (NOT ILLUSTRATED)
16	PANEL-BODYSIDE, ALMOND, RH
17	SHIELD-WOOL
18	316538904 Frigidaire Oven Lamp Light
19	316116400 Frigidaire Oven Light Socket
20	BOX-LIGHT
21	FLUE BACK U/O
22	PNL-TOP U/O
23	WCI 08067732
24	WCI 316007002
25	WCI 3203082
