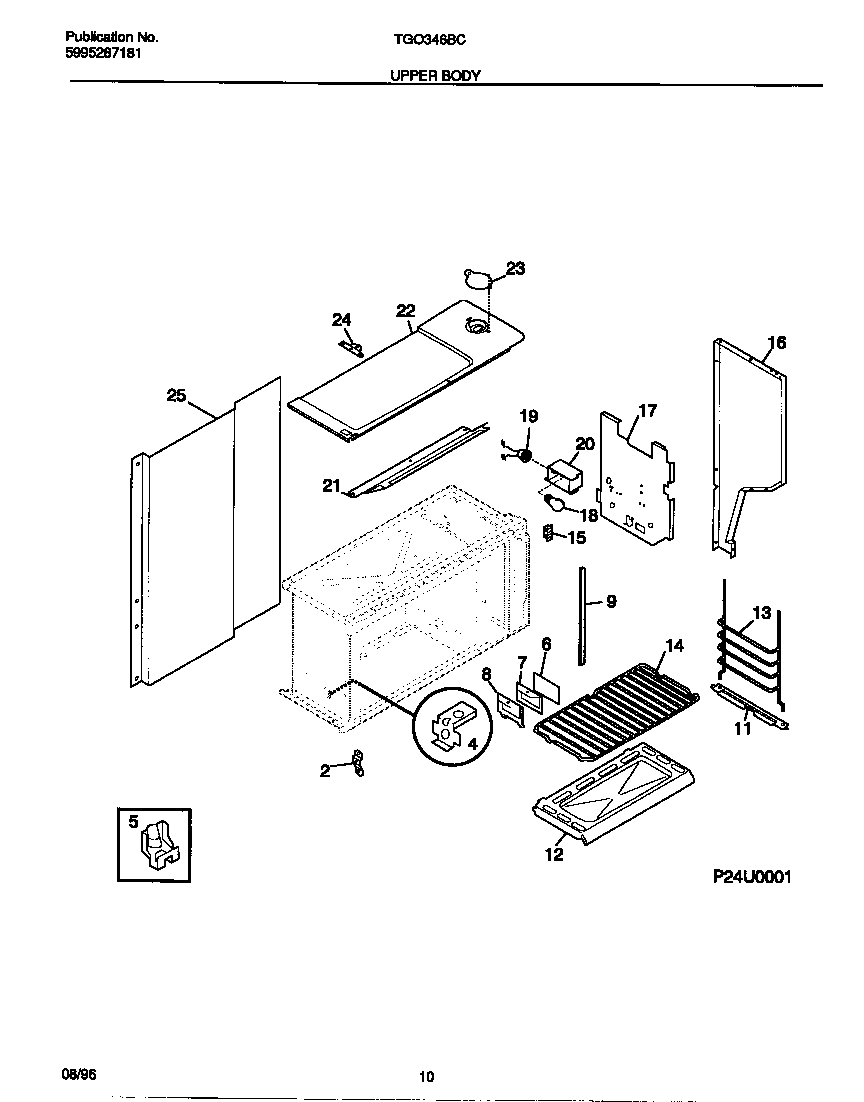

TGO346BCDC 06 – UPPER BODY

Products

Position	Product
*27423	PIN, HINGE (2)
*27419	INSUL WOOL
*27418	INSUL O/U UPPER
*27417	BRKT-CONNEC MTG
*27416	INSUL-WOOL
*27421	WCI 3204440
*27422	Screw,cup pt ,8-18 x 0.375 ,chrome
*27420	RETAINER OVEN BURN UPPER
2	HINGE-DOOR ASSY
4	WCI 08011665
5	5303284616 Frigidaire Range Bulb Clip Thermostat
6	GLASS-OVN LITE LENS
7	GSKT OVEN LIGHT
8	WCI 08011669
9	WCI 5303934092
11	GLIDE-OVEN BTM
12	WCI 3200488
13	WCI 08011674
14	RACK-OVEN, FLAT
16	PANEL-BODYSIDE, ALMOND, LH (NOT ILLUSTRATED)
16	PANEL-BODYSIDE, ALMOND, RH
17	SHIELD-WOOL
18	316538904 Frigidaire Oven Lamp Light
19	316116400 Frigidaire Oven Light Socket
20	BOX-LIGHT
21	FLUE BACK U/O
22	PNL-TOP U/O
23	WCI 08067732
24	WCI 5303290130
25	WCI 5303290095
