TGO346BCWA 06 – UPPER BODY

TGO346BCWA 06 – UPPER BODY

Written by

in

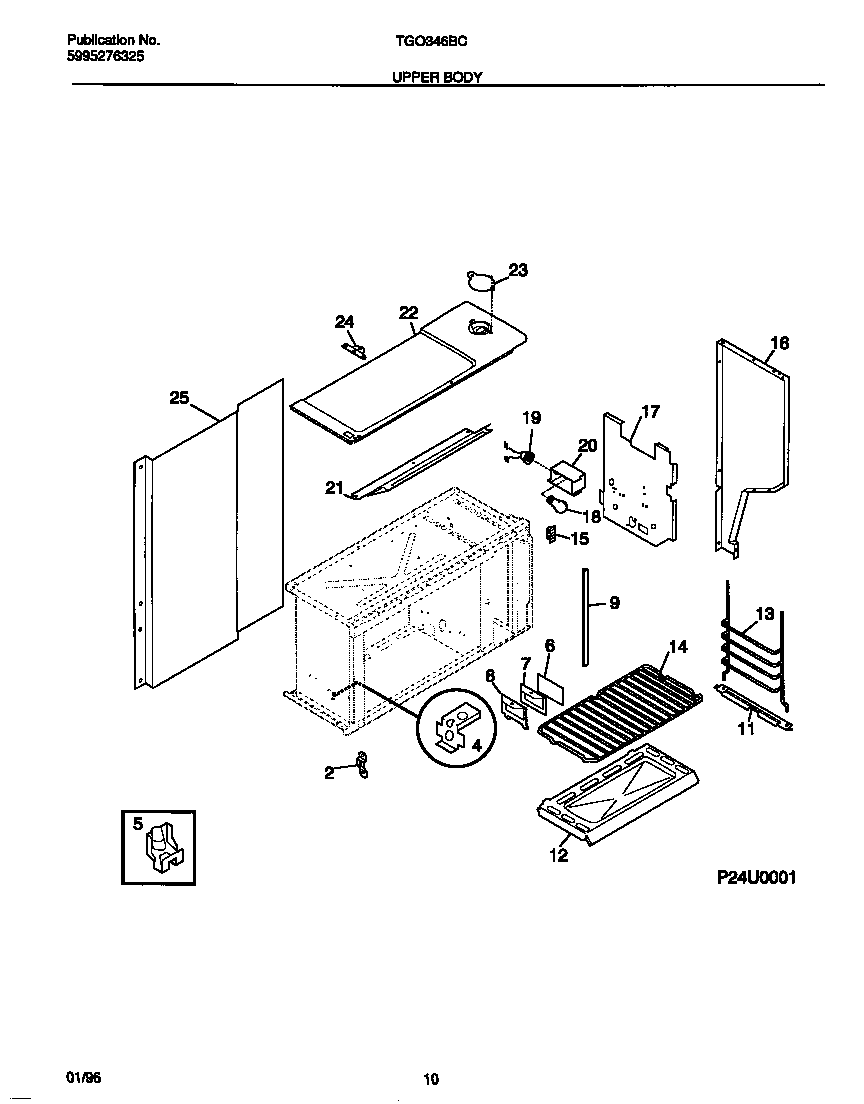

TGO346BCWA 06 – UPPER BODY

Products

PositionProduct
*439285303300265 Frigidaire Oven Screw
*43934WCI 3204440
*43933RETAINER OVEN BURN UPPER
*43932INSUL WOOL
*43931INSUL O/U UPPER
*43930BRKT-CONNEC MTG
*43929INSUL-WOOL
*43935PIN, HINGE (2)
2HINGE-DOOR ASSY
4WCI 08011665
55303284616 Frigidaire Range Bulb Clip Thermostat
6GLASS-OVN LITE LENS
7GSKT OVEN LIGHT
8WCI 08011669
9WCI 5303934092
11GLIDE-OVEN BTM
12WCI 3200488
13WCI 08011674
14RACK-OVEN, FLAT
16WCI 3051263
16PANEL-BODYSIDE, WHITE, LH (NOT ILLUSTRATED)
17SHIELD-WOOL
18316538904 Frigidaire Oven Lamp Light
19316116400 Frigidaire Oven Light Socket
20BOX-LIGHT
21FLUE BACK U/O
22PNL-TOP U/O
23WCI 08067732
24WCI 316007002
25WCI 3203082
