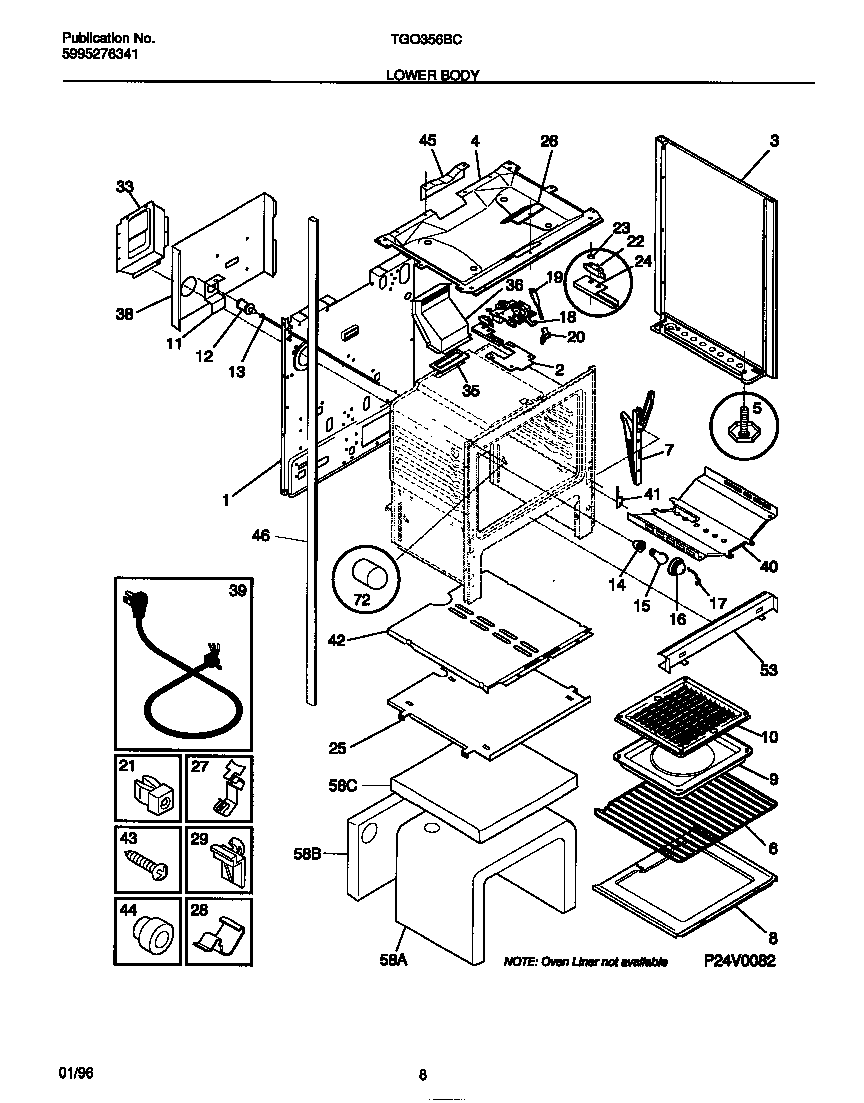

TGO356BCDA 05 – LOWER BODY

TGO356BCDA 05 – LOWER BODY

Written by

in

TGO356BCDA 05 – LOWER BODY

Products

PositionProduct
*95566316539800 Frigidaire Oven Retainer
*95568WCI 3131691
*95567316021105 Frigidaire Oven Screw
1WCI 316029410
2SHIELD-OVN TOP
3WCI 316081006
3ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3BWCI 08067992
3WCI 316081007
4WCI 3011597
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5ASCREW-LEVELING
5B316116000 Frigidaire Screw
6316067902 Frigidaire Oven Rack
7HINGE-DOOR ASSY
8B316064600 Frigidaire Oven Support
8ASHIELD, OVEN BOTTOM
9PAN-BROILER
10WCI 5303131356
11WCI 5303131289
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18AWCI 5303015453
18BSHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20AWCI 3203218
20BWCI 08013188
21SPACER-BODYSIDE, (8)
22ASWITCH-LATCH
22BSTUD SPACER (2) (NON-ILLUSTRATED)
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
27WCI 08067754
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 3131931
38WCI 316014301
39BWCI 08067961
39A5304534000 Frigidaire Cord
40BSCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
40AWCI 3200836
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
46BTUBE-POST LH
46AWCI 5303208642
53ASHIELD-FRONT
53B08067973 Frigidaire 0 Insulation
58INSULATION, OVEN WRAPPER
58WCI 316054200
58INSULATION, OVEN TOP
72COVER-LIGHT/SWITCH ROD
