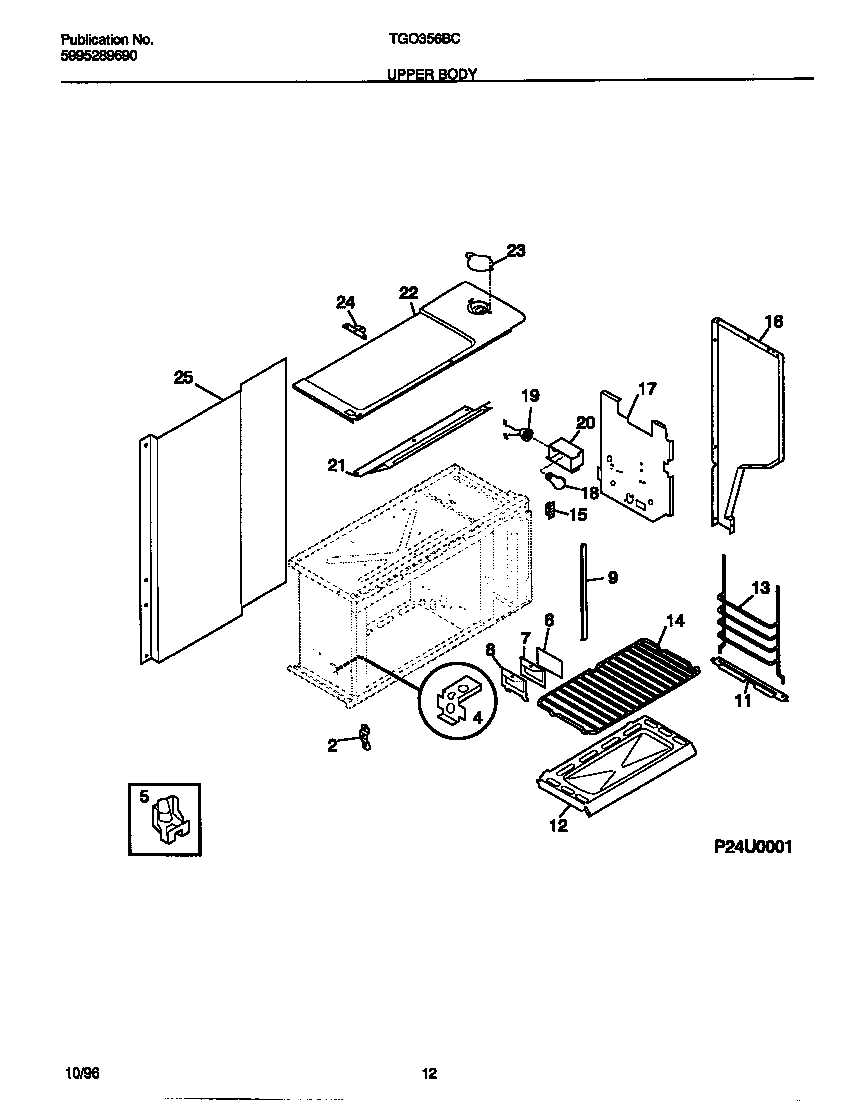

TGO356BCDD 07 – UPPER BODY

TGO356BCDD 07 – UPPER BODY

Written by

in

TGO356BCDD 07 – UPPER BODY

Products

PositionProduct
*569015303300265 Frigidaire Oven Screw
*56899WCI 3204440
*56898RETAINER OVEN BURN UPPER
*56897INSUL WOOL
*56896INSUL O/U UPPER
*56895BRKT-CONNEC MTG
*56894INSUL-WOOL
*56902INSULATION, SPLASHER
*56900Screw,cup pt ,8-18 x 0.375 ,chrome
2HINGE-DOOR ASSY
4WCI 08011665
55303284616 Frigidaire Range Bulb Clip Thermostat
6GLASS-OVN LITE LENS
7GSKT OVEN LIGHT
8WCI 08011669
9WCI 5303934092
11GLIDE-OVEN BTM
12WCI 3200488
13WCI 08011674
14RACK-OVEN, FLAT
16WCI 316099604
16WCI 316099605
17SHIELD-WOOL
18316538904 Frigidaire Oven Lamp Light
19316116400 Frigidaire Oven Light Socket
20BOX-LIGHT
21FLUE BACK U/O
23WCI 08067732
24WCI 5303290130
25WCI 5303290095
