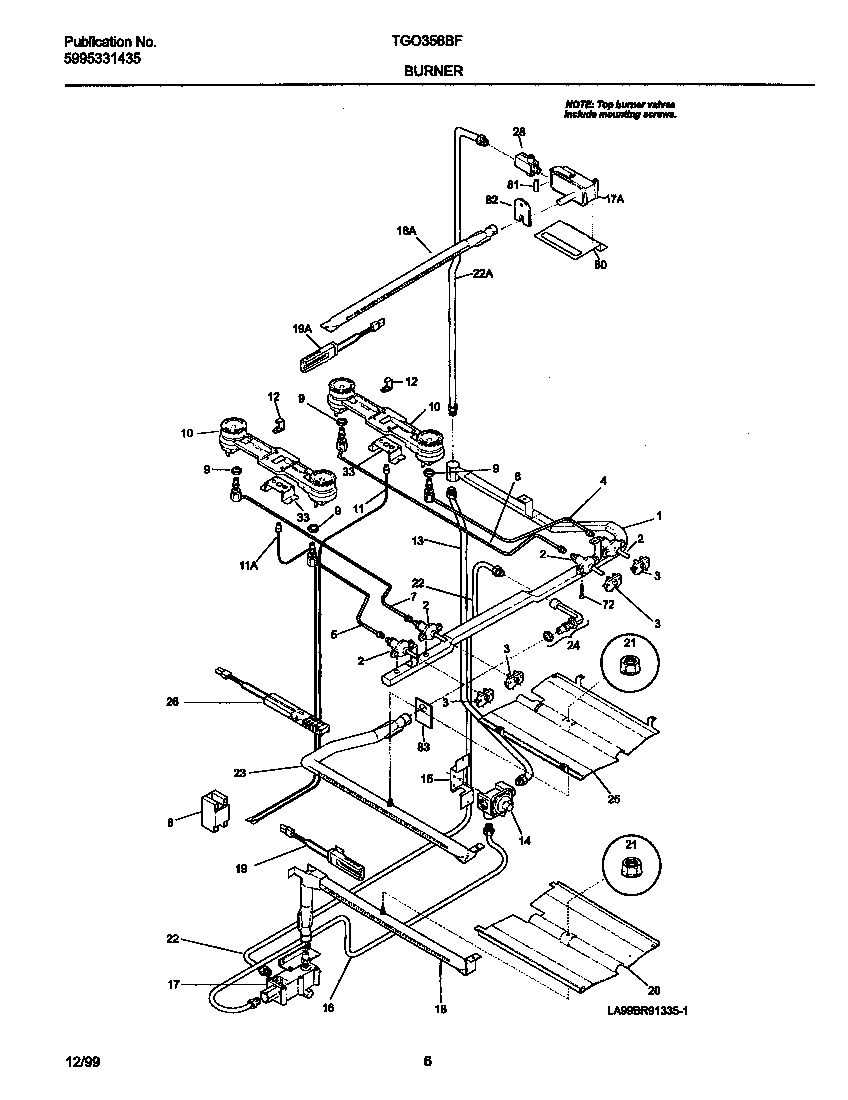

TGO356BFD4 04 – BURNER

Products

Position	Product
*13000	316021105 Frigidaire Oven Screw
*13001	316089500 Frigidaire Oven Screw
1	WCI 316113800
2	WCI 316127501
3	WCI 316001812
4	WCI 316051400
5	WCI 316051401
6	WCI 316051402
7	WCI 316051403
8	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9	NUT, SPECIAL
10	WCI 316057100
11	WCI 316081701
11	WCI 316081700
12	3016993 Frigidaire Oven Retainer
13	WCI 316065005
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	WCI 316065003
17	WCI 3131623
17	5303208499 Frigidaire Safety Gas Valve
18	BURNER-UPPER OVEN
18	WCI 3131290
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
19	IGNITER-UPPER OVEN
20	BAFFLE-OVN BURNER
21	5303013272 Frigidaire Oven Nut
22	WCI 316065002
22	WCI 318177800
23	WCI 316087900
24	WCI 316070400
25	WCI 5303210379
26	5303935068 Frigidaire Flat Igniter
28	WCI 316070500
33	BRACKET BURNER MTG
72	316048200 Frigidaire Oven Screw
80	WCI 5304403069
81	TUBE-SPACER (NON-ILLUSTRATED)
82	RETAINER-OVEN SPUD
83	WCI 316113400
