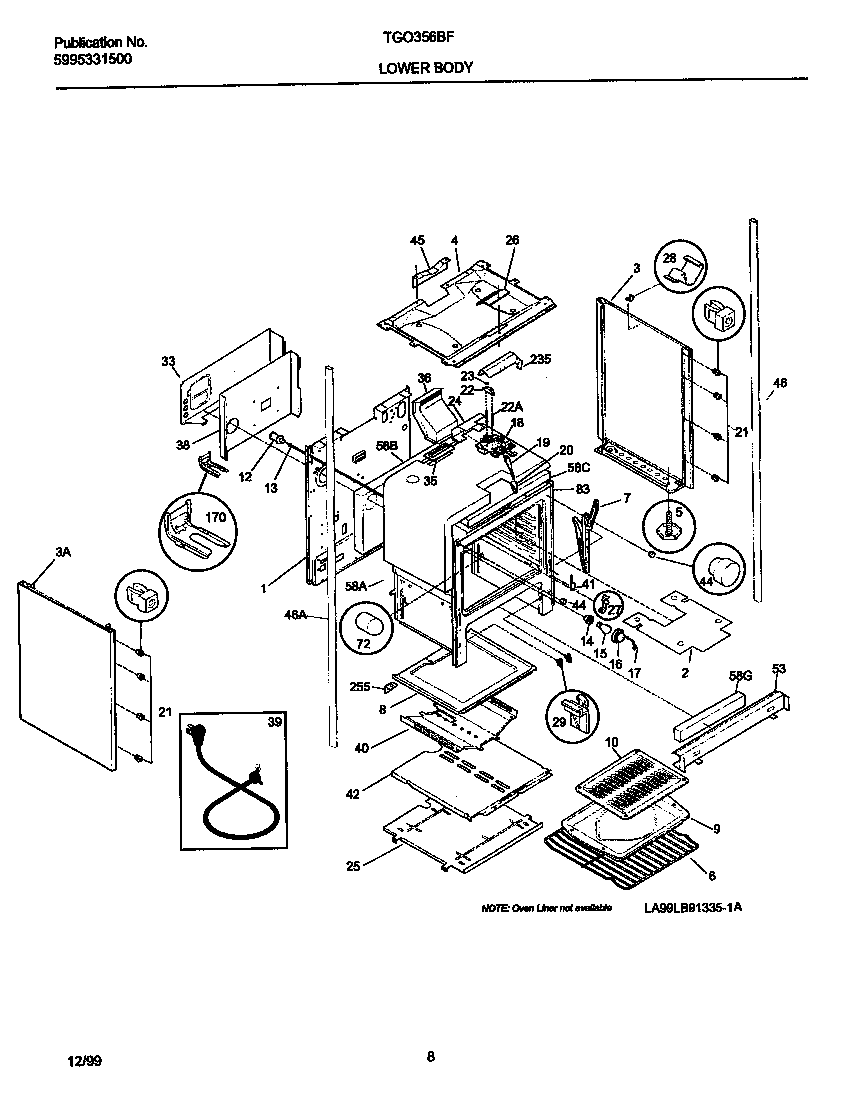

TGO356BFW2 05 – LOWER BODY

Products

Position	Product
*41406	WCI 08013188
*41408	WCI 08067961
*41407	316282700 Frigidaire Oven Screw
*41402	316116000 Frigidaire Screw
*41404	WASHER-BLACK
*41403	WCI 3131691
*41409	WCI 08067992
*41405	5303285179 Frigidaire Oven Door Screw
1	WCI 316029412
2	SHIELD-OVN TOP
3A	WCI 316081034
3B	WCI 316081035
4	WCI 3011597
5	WCI 316107300
6	316067902 Frigidaire Oven Rack
7	WCI 316007002
8	WCI 5303300406
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	WCI 5303015453
19	WCI 5303131357
20	WCI 3203218
21	SPACER-BODYSIDE, (8)
22	STUD SPACER (2) (NON-ILLUSTRATED)
22	SWITCH-LATCH
23	FSTNR-PUSH ON
24	SHIELD-LATCH (NON-ILLUSTRATED)
25	WCI 5303288580
26	WCI 08067757
27	WCI 08067754
28	CLIP-WIRE
29	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
31	SHIELD-HEAT
33	WCI 316014400
35	316542102 Frigidaire Flue Gasket
36	WCI 3131931
38	WCI 316014300
39	5304534000 Frigidaire Cord
40	WCI 3200836
41	WCI 3131570
42	WCI 5303288578
44	3131903 Frigidaire Door/Drawer Bumper
45	WCI 08068018
46	TUBE-POST LH
46	WCI 5303208642
53	WCI 5303288579
58	INSULATION, OVEN WRAPPER
58	08067973 Frigidaire 0 Insulation
58	WCI 316054200
58	INSULATION, OVEN TOP
72	COVER-LIGHT/SWITCH ROD
83	WCI 316054311
170	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
235	SHIELD-LATCH
255	316064600 Frigidaire Oven Support
