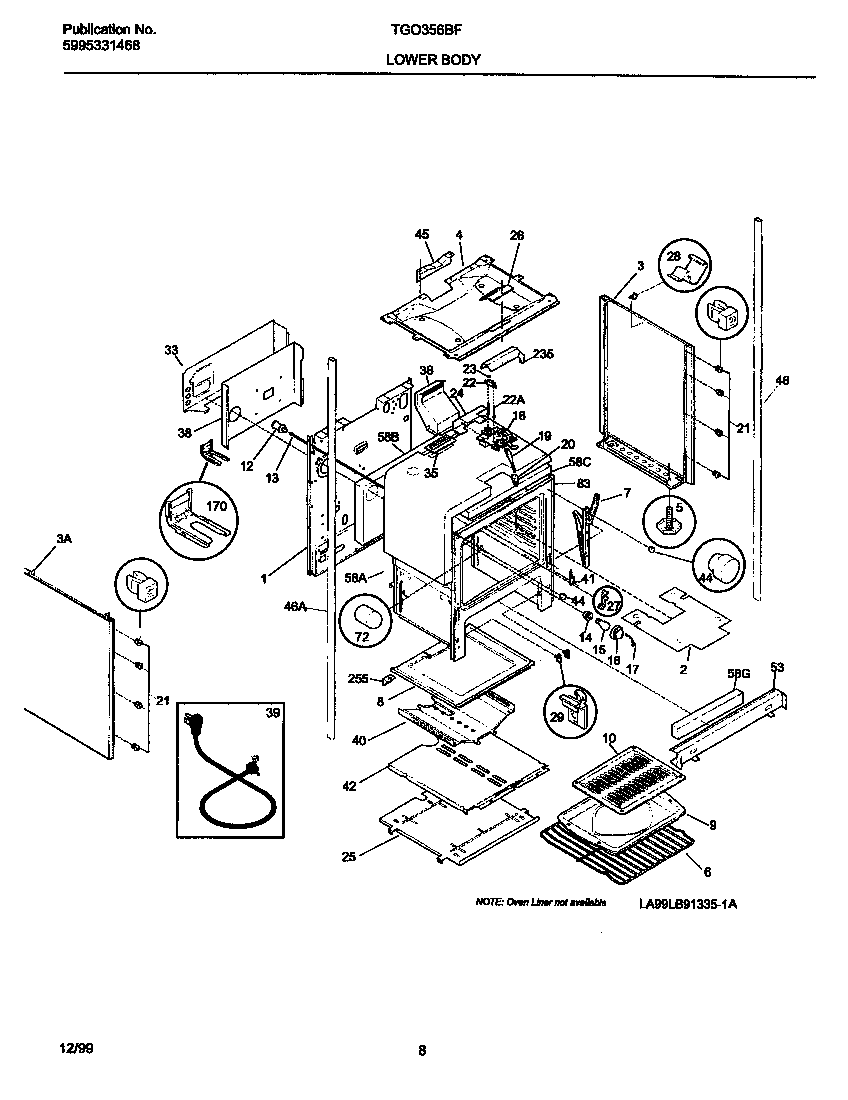

TGO356BFW3 05 – LOWER BODY

Products

PositionProduct
*11009WASHER-BLACK
*11007316116000 Frigidaire Screw
*11013WCI 08067961
*11012316282700 Frigidaire Oven Screw
*11011WCI 08013188
*110105303285179 Frigidaire Oven Door Screw
*11008WCI 3131691
1WCI 316029412
2SHIELD-OVN TOP
3WCI 316081034
3WCI 316081035
4WCI 3011597
5WCI 316107300
6316067902 Frigidaire Oven Rack
7WCI 316007002
8WCI 5303300406
9WCI 318138800
10WCI 318126400
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 5303015453
19WCI 5303131357
20WCI 3203218
21SPACER-BODYSIDE, (8)
22SWITCH-LATCH
22STUD SPACER (2) (NON-ILLUSTRATED)
23FSTNR-PUSH ON
24SHIELD-LATCH (NON-ILLUSTRATED)
25WCI 5303288580
26WCI 08067757
27WCI 08067754
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33WCI 316014400
35316542102 Frigidaire Flue Gasket
36WCI 3131931
38WCI 316014300
395304534000 Frigidaire Cord
40WCI 3200836
41WCI 3131570
42WCI 5303288578
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
46WCI 5303208642
46TUBE-POST LH
53WCI 5303288579
5808067973 Frigidaire 0 Insulation
58INSULATION, OVEN TOP
58INSULATION, OVEN WRAPPER
58WCI 316054200
72COVER-LIGHT/SWITCH ROD
83WCI 316054311
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
235SHIELD-LATCH
255316064600 Frigidaire Oven Support
