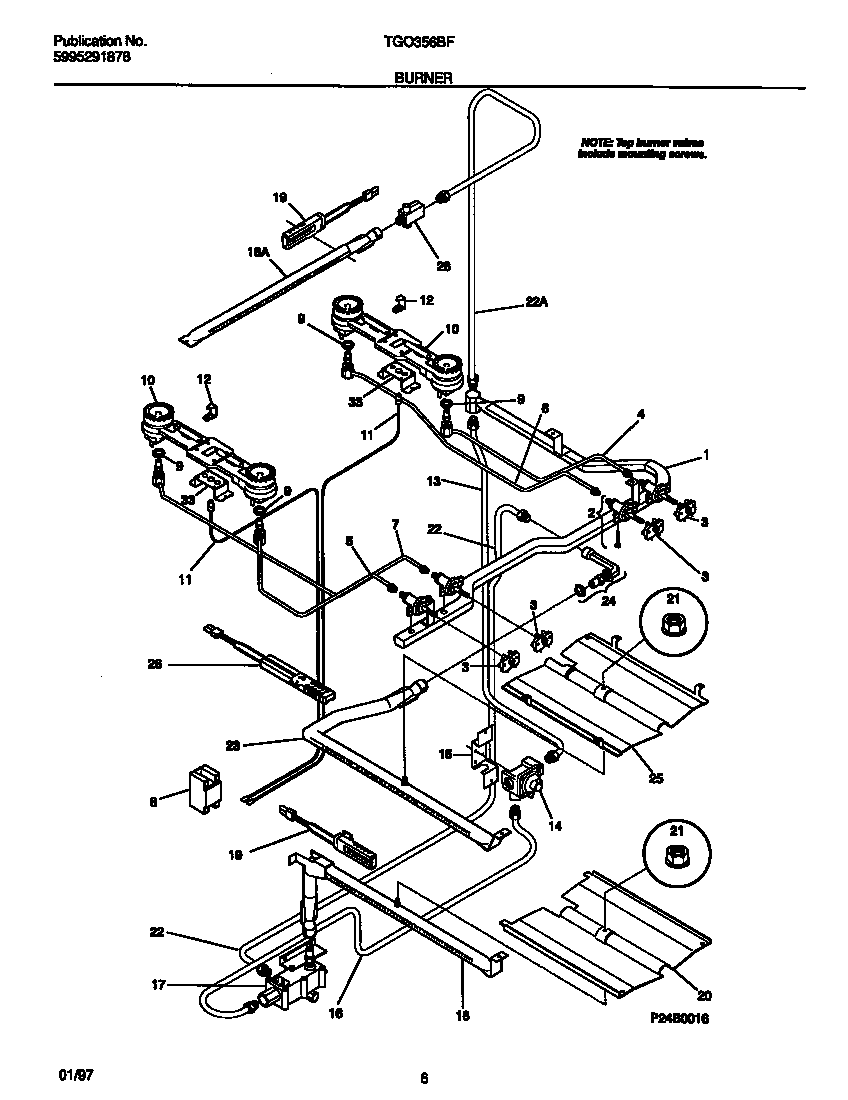

TGO356BFWA 04 – BURNER

TGO356BFWA 04 – BURNER

Written by

in

TGO356BFWA 04 – BURNER

Products

PositionProduct
*12167RETAINER-OVEN SPUD
*12166TUBE-SPACER (NON-ILLUSTRATED)
*12165WCI 3131621
*12168Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316066200
2AWCI 5303935130
2B316048200 Frigidaire Oven Screw
3ASWITCH-IGNITER, (4)
3BHARNESS-WIRING, IGNITER SW./MDL (NOT ILLUSTRATED)
4WCI 316051400
5WCI 316051401
6WCI 316051402
7WCI 316051403
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9NUT, SPECIAL
10WCI 316057100
11AIGNITER-TOP BURNER, BASE, (2)
11BIGNITER-TOP BURNER, BASE, 33“
123016993 Frigidaire Oven Retainer
13WCI 316065005
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
16WCI 316065003
17BWCI 5303321638
17AWCI 3131623
18WCI 3131290
18BURNER-UPPER OVEN
195303935066 Frigidaire Oven Flat Igniter 17" Leads
19IGNITER-UPPER OVEN
20BAFFLE-OVN BURNER
215303013272 Frigidaire Oven Nut
22WCI 316065002
22TUBING-VALVE
23WCI 316087900
24WCI 316070400
25WCI 5303210379
265303935068 Frigidaire Flat Igniter
28WCI 316070500
33BRACKET BURNER MTG
