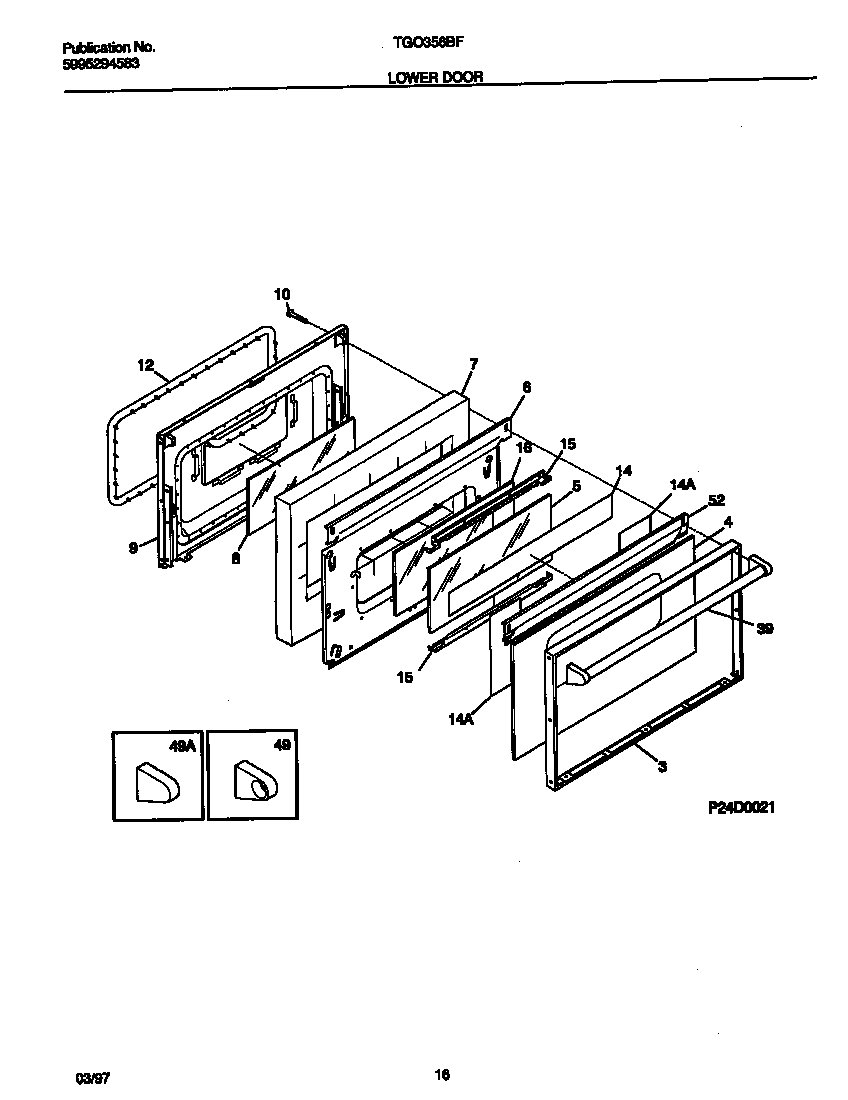

TGO356BFWB 08 – LOWER DOOR

TGO356BFWB 08 – LOWER DOOR

Written by

in

TGO356BFWB 08 – LOWER DOOR

Products

PositionProduct
*10104SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*101055303285179 Frigidaire Oven Door Screw
3WCI 316067802
4WCI 316089000
5WCI 316088700
6WCI 316088401
7WCI 316076403
8GLASS-OVEN DOOR, AIRWASH
9WCI 316066610
10SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
125303131601 Frigidaire Oven Seal
14REFLECTOR, ALUMINUM FOIL
145303208655 Frigidaire Reflector Assembly
15WCI 316081401
16WCI 316085700
39AHANDLE-DOOR, OVEN
39BWCI 316089600
49WCI 5303307192
49WCI 5303307193
52WCI 316081303
