TGO356BHD1 05 – LOWER BODY

TGO356BHD1 05 – LOWER BODY

Written by

in

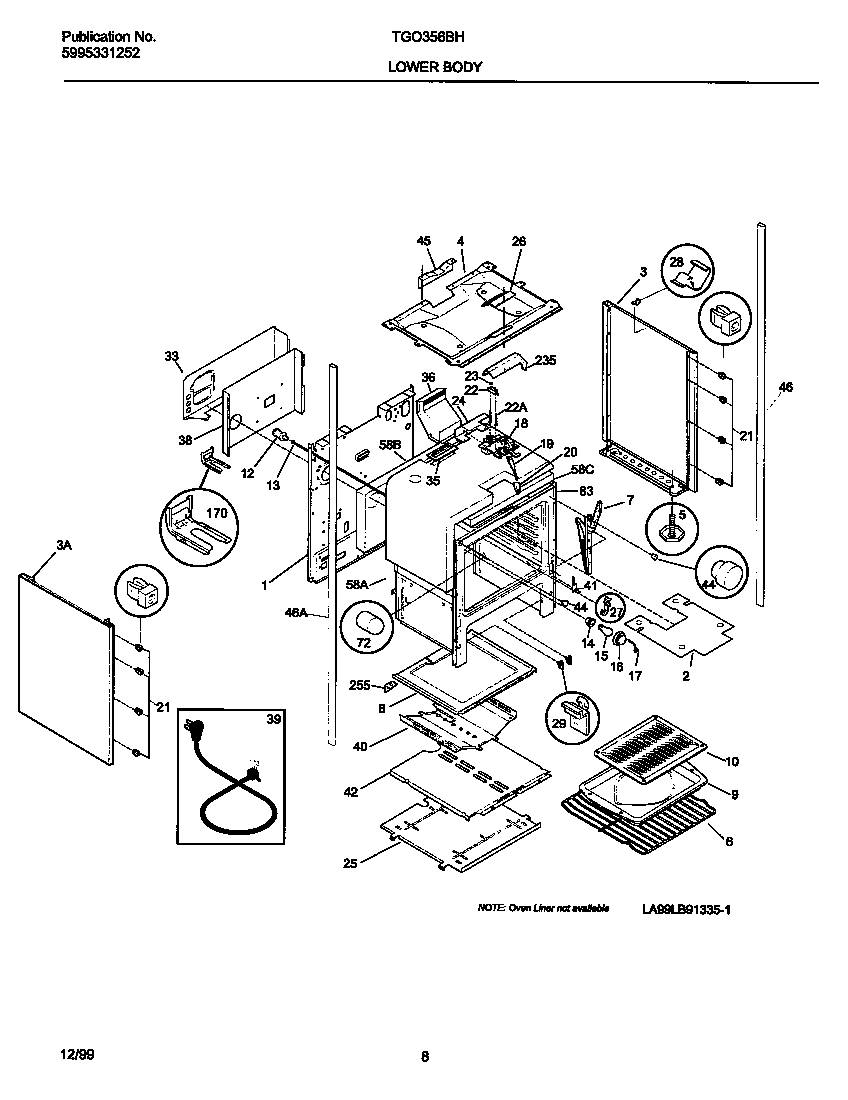

TGO356BHD1 05 – LOWER BODY

Products

PositionProduct
*01806316116000 Frigidaire Screw
*01807316021105 Frigidaire Oven Screw
*01809WCI 3131691
*018105303271648 Frigidaire Oven Screw
*01805WCI 316081037
*01804WCI 316081035
*01808Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316029412
2SHIELD-OVN TOP
3WCI 316081034
3WCI 316081036
4WCI 3011597
5WCI 316107300
6316067902 Frigidaire Oven Rack
7WCI 316007002
8WCI 5303300406
9WCI 31813800
10WCI 318126400
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 5303015453
19WCI 5303131357
20WCI 3203218
21SPACER-BODYSIDE, (8)
22STUD SPACER (2) (NON-ILLUSTRATED)
22WCI 53032269499
22SWITCH-LATCH
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 5303288580
26WCI 08067757
27WCI 08067754
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33WCI 316014400
35316542102 Frigidaire Flue Gasket
36WCI 3131931
38WCI 316014300
395304534000 Frigidaire Cord
40WCI 3200836
41WCI 3131570
42WCI 5303288578
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
46TUBE-POST LH
46WCI 5303208642
58INSULATION, OVEN WRAPPER
58WCI 316054200
58INSULATION, OVEN TOP
72COVER-LIGHT/SWITCH ROD
83WCI 316054311
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
235SHIELD-LATCH (NON-ILLUSTRATED)
255316064600 Frigidaire Oven Support
