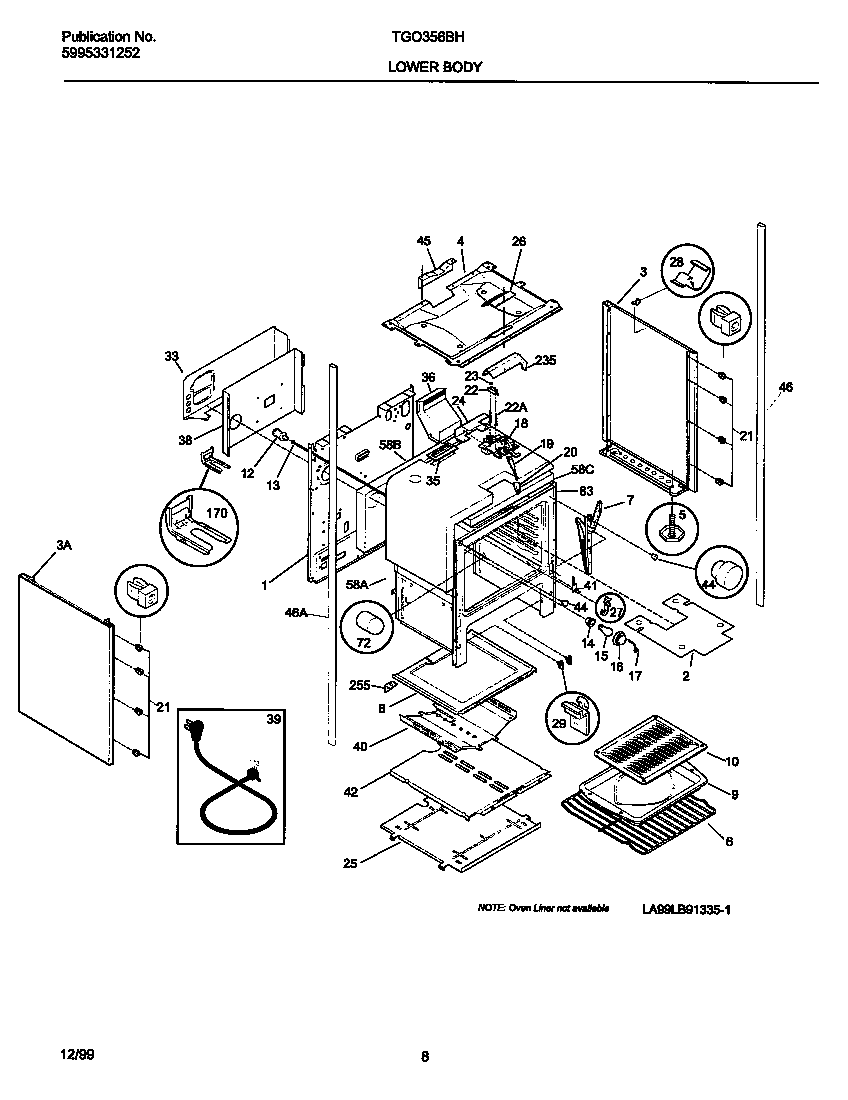

TGO356BHW1 05 – LOWER BODY

Products

Position	Product
*01804	WCI 316081035
*01808	Screw,cup pt ,8-18 x 0.375 ,chrome
*01809	WCI 3131691
*01805	WCI 316081037
*01806	316116000 Frigidaire Screw
*01810	5303271648 Frigidaire Oven Screw
*01811	WASHER-BLACK
*01807	316021105 Frigidaire Oven Screw
1	WCI 316029412
2	SHIELD-OVN TOP
3	WCI 316081036
3	WCI 316081034
4	WCI 3011597
5	WCI 316107300
6	316067902 Frigidaire Oven Rack
7	WCI 316007002
8	WCI 5303300406
9	WCI 31813800
10	WCI 318126400
12	WCI 316027702
13	WCI 316026800
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	WCI 5303015453
19	WCI 5303131357
20	WCI 3203218
21	SPACER-BODYSIDE, (8)
22	STUD SPACER (2) (NON-ILLUSTRATED)
22	SWITCH-LATCH
23	FSTNR-PUSH ON
24	SHIELD-LATCH
25	WCI 5303288580
26	WCI 08067757
27	WCI 08067754
28	CLIP-WIRE
29	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
33	WCI 316014400
35	316542102 Frigidaire Flue Gasket
36	WCI 3131931
38	WCI 316014300
39	5304534000 Frigidaire Cord
40	WCI 3200836
41	WCI 3131570
42	WCI 5303288578
43	316282700 Frigidaire Oven Screw
44	3131903 Frigidaire Door/Drawer Bumper
45	WCI 08068018
46	TUBE-POST LH
46	WCI 5303208642
58	WCI 316054200
58	INSULATION, OVEN TOP
58	INSULATION, OVEN WRAPPER
72	COVER-LIGHT/SWITCH ROD
83	WCI 316054311
170	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
235	SHIELD-LATCH (NON-ILLUSTRATED)
255	316064600 Frigidaire Oven Support
