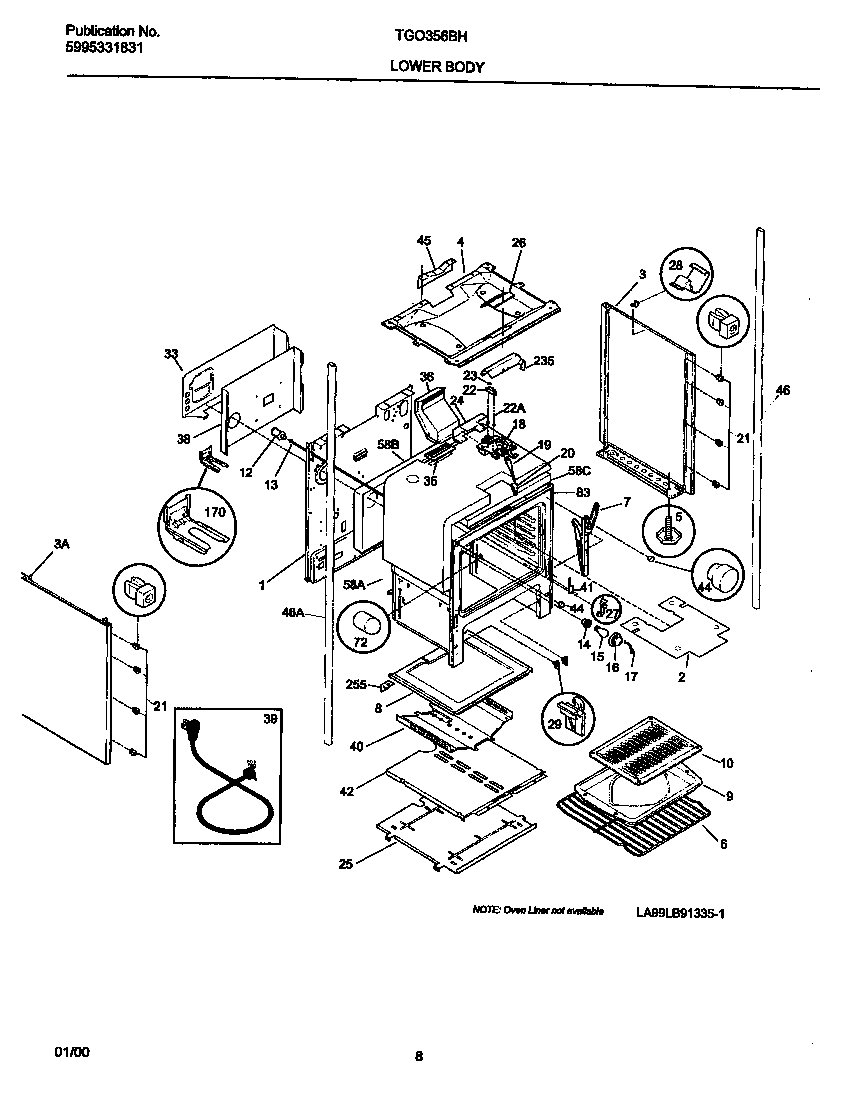

TGO356BHW3 03 – LOWER BODY

TGO356BHW3 03 – LOWER BODY

Written by

in

TGO356BHW3 03 – LOWER BODY

Products

PositionProduct
*31523Screw,cup pt ,8-18 x 0.375 ,chrome
*31524316116000 Frigidaire Screw
*31522316021105 Frigidaire Oven Screw
*31525WCI 3131691
*31521WASHER-BLACK
*31526WCI 316081035
1WCI 316029412
2SHIELD-OVN TOP
3WCI 316081034
4WCI 3011597
5WCI 316107300
6316067902 Frigidaire Oven Rack
7WCI 316007002
8WCI 5303300406
9WCI 318138800
10WCI 318126400
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 5303015453
19WCI 5303131357
20WCI 3203218
21SPACER-BODYSIDE, (8)
22SWITCH-LATCH
22STUD SPACER (2) (NON-ILLUSTRATED)
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 5303288580
26WCI 08067757
27WCI 08067754
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
35316542102 Frigidaire Flue Gasket
36WCI 3131931
395304534000 Frigidaire Cord
40WCI 3200836
41WCI 3131570
42WCI 5303288578
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
46WCI 5303208642
46TUBE-POST LH
58INSULATION, OVEN TOP
58INSULATION, OVEN WRAPPER
58WCI 316054200
72COVER-LIGHT/SWITCH ROD
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
235SHIELD-LATCH (NON-ILLUSTRATED)
255316064600 Frigidaire Oven Support
