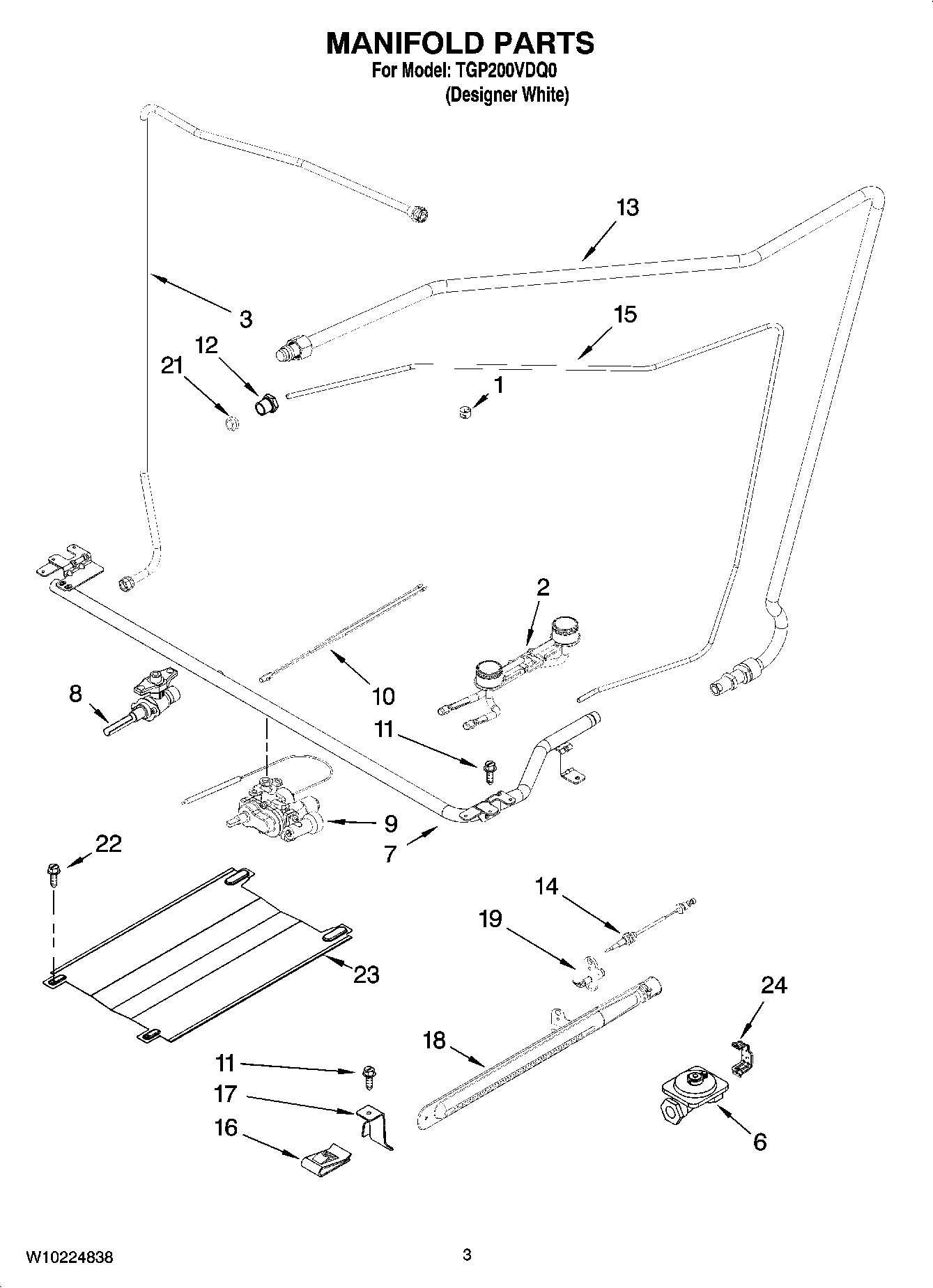

TGP200VDQ0 03 – MANIFOLD PARTSadmin2025-04-26T11:24:40+00:00TGP200VDQ0 03 – MANIFOLD PARTS ProductsPositionProductFollowing Parts Not IllustratedWasher, Cut-OffLP Spud Kit (For Use With LP)1W10128110 Whirlpool Air Shutter2WPW10119798 Whirlpool Burner Assembly Top3WP98017171 Whirlpool Gas Tubing6Regulator7W10172095 Whirlpool Manifold Pipe8W10121580 Whirlpool Burner Valve9WPW10121631 Whirlpool Thermostat10WPW10119799 Whirlpool Tubing11W10837731 Whirlpool Screw Assembly1298005514 Whirlpool Oven Nut13Tubing, Oven (TSTAT to Burner)14WPW10206112 Whirlpool Oven Pilot Burner15WP98004310 Whirlpool Gas Tubing1698009179 Whirlpool Oven Nut1798013314 Whirlpool Oven Support Bracket18W10086560 Whirlpool Burner2198007116 Whirlpool Oven 3/16" Ball Sleeve22SCREW23W10212101 Whirlpool Burner Baffle2498007410 Whirlpool Oven Mounting Bracket
