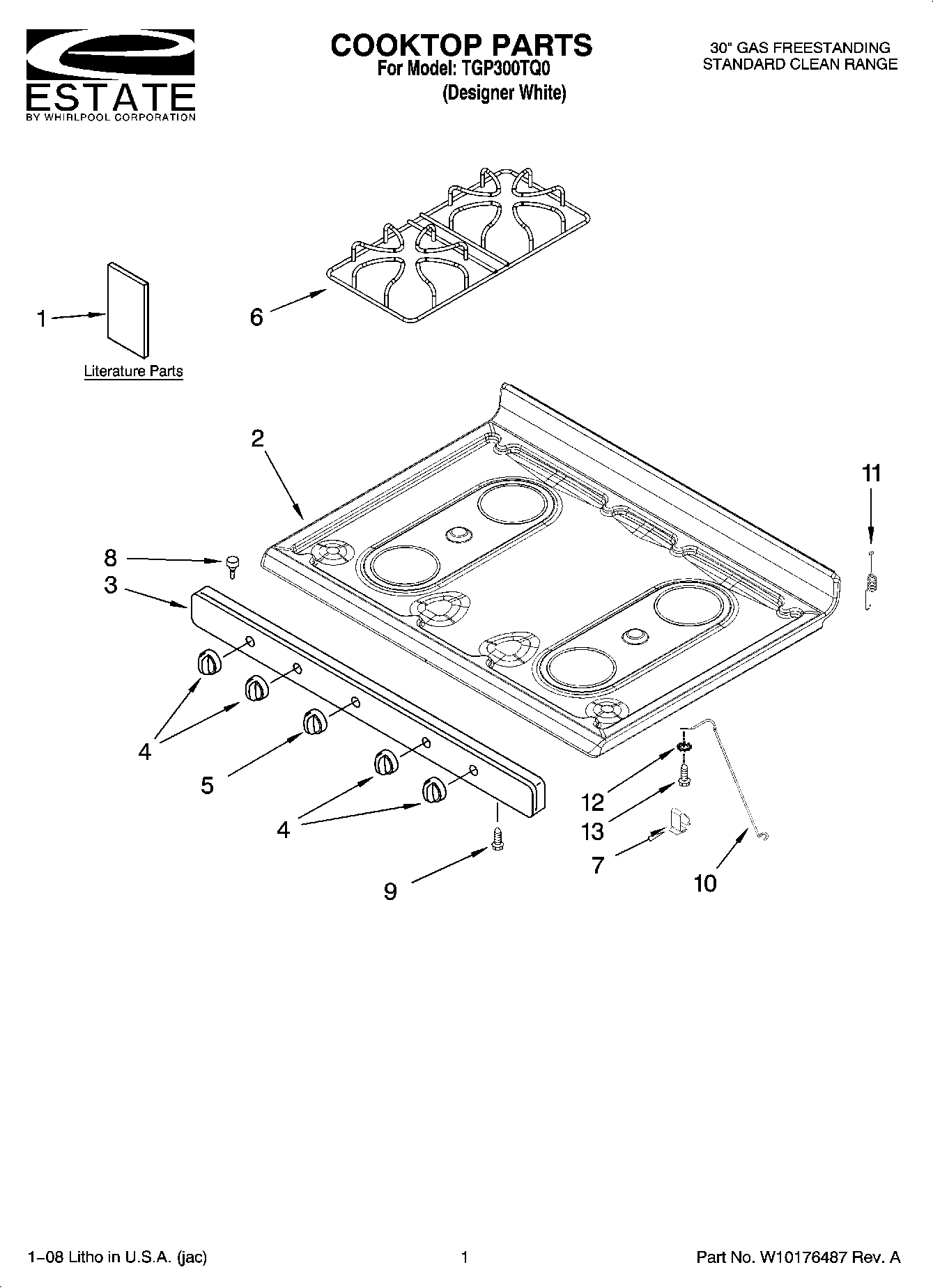

TGP300TQ0 01 – COOKTOP PARTS

TGP300TQ0 01 – COOKTOP PARTS

Written by

in

TGP300TQ0 01 – COOKTOP PARTS

Products

PositionProduct
1Instructions Installation
1Safer Cooking Tips
1Installation Instr (Template)
1Guide, Use & Care
2WPW10141521 Whirlpool Cooktop
3Panel, Manifold
4WP98006102 Whirlpool Knob
5WP98008321 Whirlpool Range Stove Burner Thermostat Control Knob
6WPW10180089 Whirlpool Burner Grate
7CLIP, COOKTOP
898004723 Whirlpool Oven Bumper
9SCREW
10Rod, Supporting (Left)
10Rod, Supporting (Right)
11Spring, Cooktop (2)
12Washer, Lock (2)
13WP486754 Whirlpool Compactor Screw
