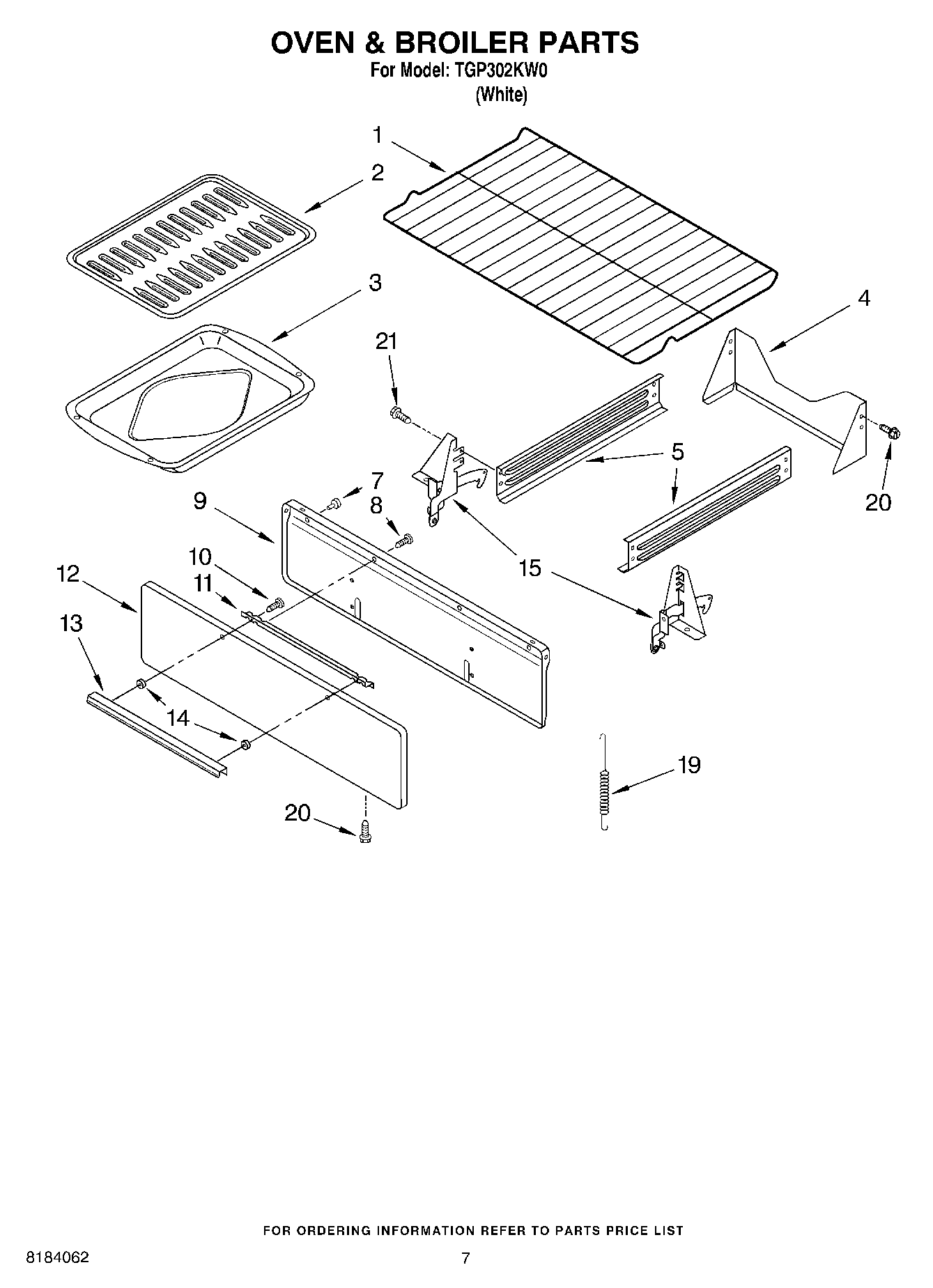

TGP302KW0 05 – OVEN AND BROILER

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Bracket, Rear
5	Panel, Guide (2)
7	Bumper (4)
8	Screw
9	Liner, Door
10	Screw, Handle (2)
11	Bracket, Standoff
12	Panel, Door
13	Handle, Brlr Door (Black)
14	Spacer, Handle (2)
15	Hinge, Brlr Door (Right Hand)
15	Hinge, Brlr Door (Left Hand)
19	Spring, Broiler
20	SCREW
21	W10491985 Whirlpool Screw
