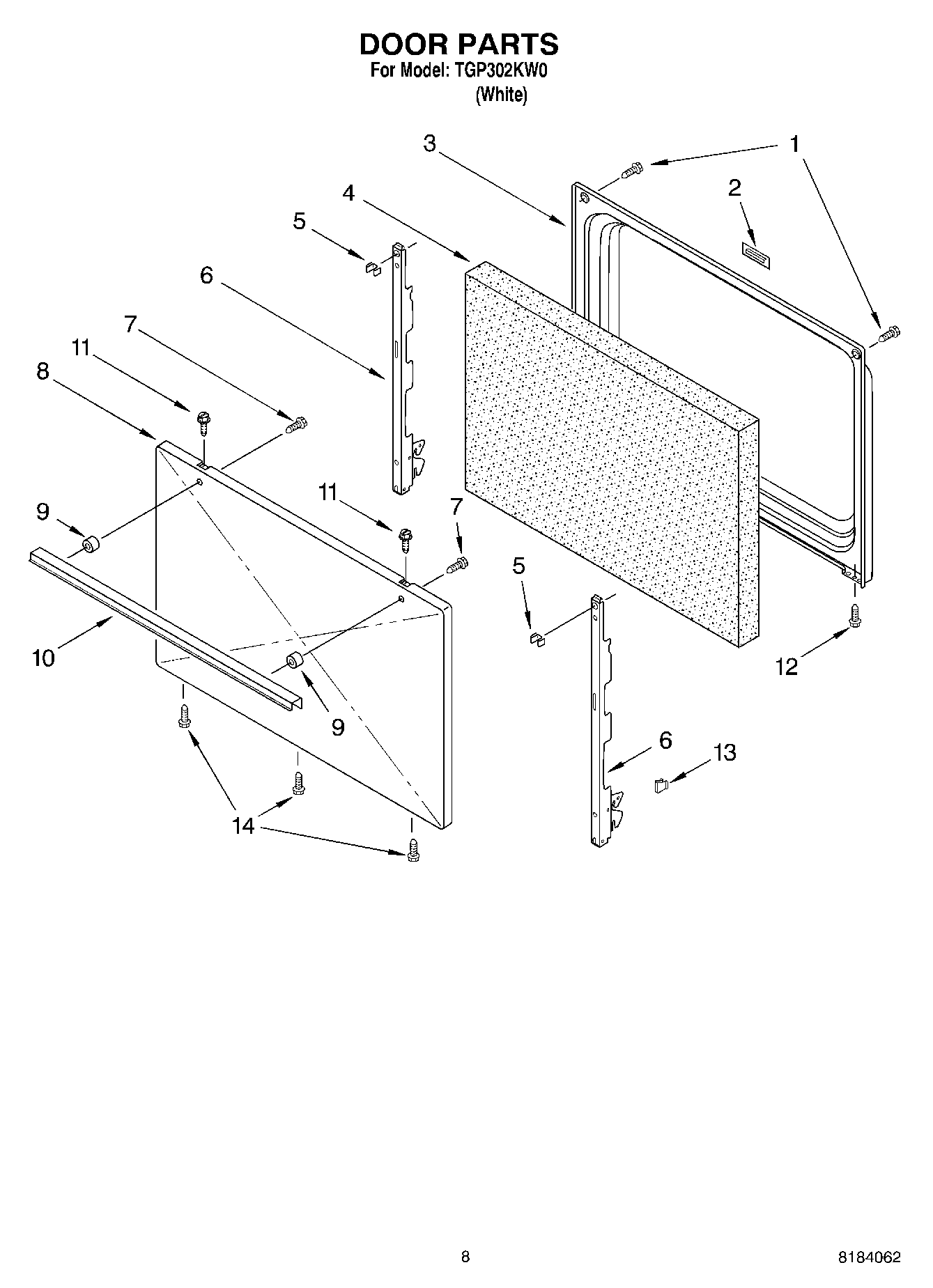

TGP302KW0 06 – DOOR

Products

Position	Product
1	Screw
2	Plug, Door
3	Liner, Door
4	WPW10278991 Whirlpool Insulation
5	Bracket, Saddle (2)
6	Hinge, Door (2)
7	WP3196163 Whirlpool Screw
8	W10903447 Whirlpool Door Panel Assembly
9	WP3196143 Whirlpool Spacer Assembly
10	WP3195704 Whirlpool Door Handle Assembly
11	3196558 Whirlpool Oven Screw
12	WP3196175 Whirlpool Screw
13	WP3196925 Whirlpool Clip Assembly
14	Wire (14 Ga. 150 c Yellow)
14	Wire (12 Ga. 150 c Black)
14	18 Ga. 80~c Rating (Red)
14	Wire (14 Ga. 200 c Brown)
14	1
14	8212471 Whirlpool Oven Paint
14	Grease
14	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
14	W10491985 Whirlpool Screw
14	Wire (14 Ga. 150 c Orange)
14	Wire (14 Ga. 150 c Green)
14	Wire (14 Ga. 150 c Brown)
14	350956 Whirlpool Spray Assembly
14	72017 Whirlpool Appliance Touch-Up Paint White
14	799344 Whirlpool Refrigerator Paint
14	WP72107 Whirlpool Touchup
14	Almond (Uncut)
14	350942 Whirlpool Spray Paint
14	511873 Whirlpool Refrigerator Paint
14	WPL 799832
14	WPW10208653 Whirlpool Insulation
14	FOIL, ALUMINUM OVEN (18“ X 25 )
14	Wire, 25` Roll (Black 14 Ga.)
14	Wire, 25` Roll (Red 14 Ga.)
14	Wire, 25“ Roll (White 14 GA.)
14	285006 Whirlpool Spray
14	814381 Whirlpool Pin
14	242831 Whirlpool Oven Wire
14	Wire (14 Ga. 150 c Blue)
14	350930 Whirlpool White Spray Paint
