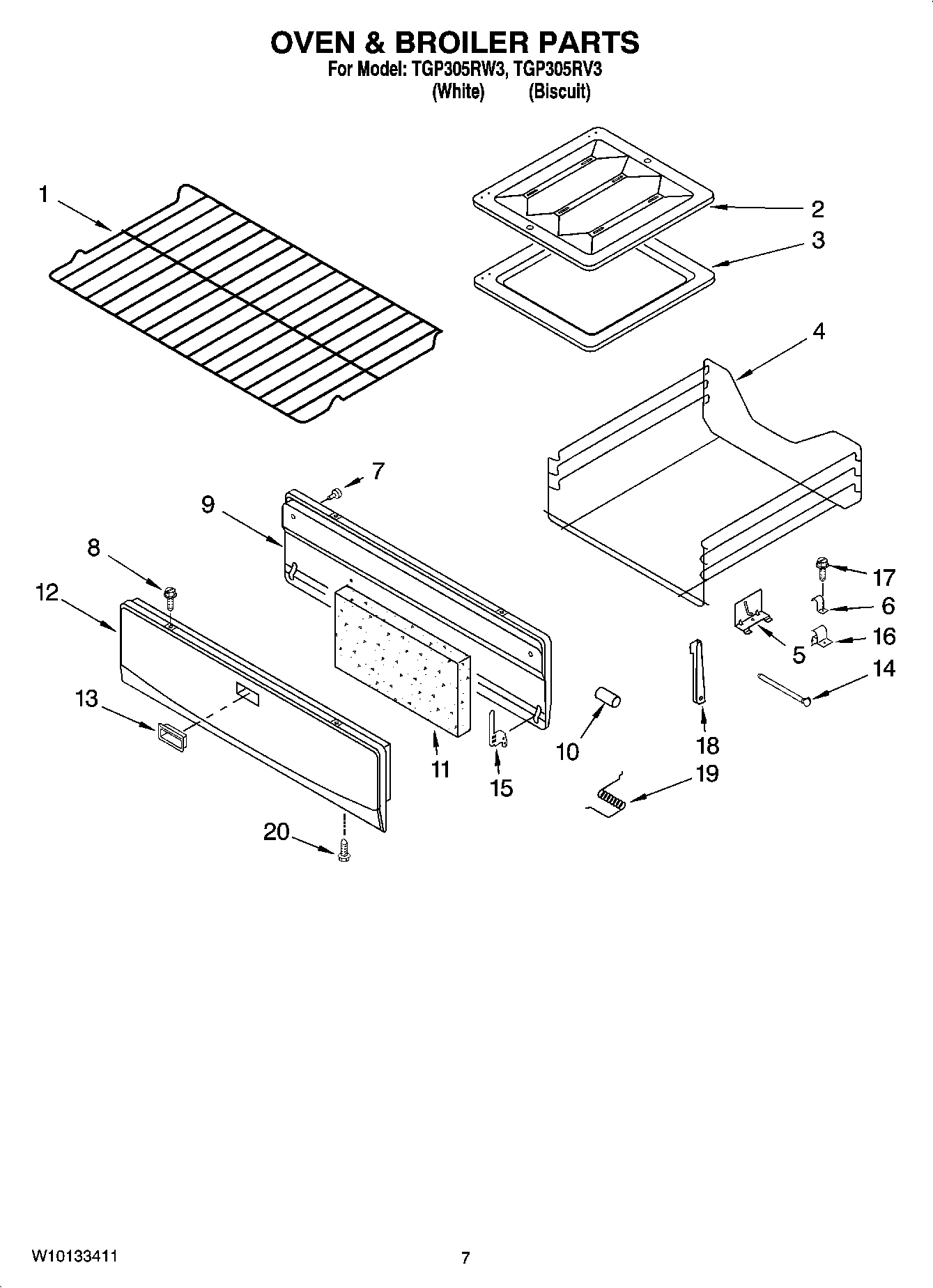

TGP305RV3 05 – OVEN & BROILER PARTS

TGP305RV3 05 – OVEN & BROILER PARTS

Written by

in

TGP305RV3 05 – OVEN & BROILER PARTS

Products

PositionProduct
1Rack, Oven (2)
2WP98003480 Whirlpool Grill Pan
3WP98016005 Whirlpool Broiler Pan
498016570 Whirlpool Oven Rack
5Bracket, Rack
698004715 Whirlpool Drawer Guide
7BUMPER, DOOR
83196166 Whirlpool Screw
8Screw (Biscuit)
9Liner, Door
10Spacer, Hinge (2)
11Insulation, Door
12Panel, Door (White)
1298009341 Whirlpool Drawer Panel
13WP3405184 Whirlpool White Door Handle
13WP3405189 Whirlpool Handle
1498004053 Whirlpool Oven Hinge Pin
15W11499074 Whirlpool Hinge Bracket
1698008341 Whirlpool Clip
17W10837731 Whirlpool Screw Assembly
18Support, Hinge
19Spring, Broiler (Left Hand)
19Spring, Broiler (Right Hand)
20WP3400805 Whirlpool Screw Assembly
