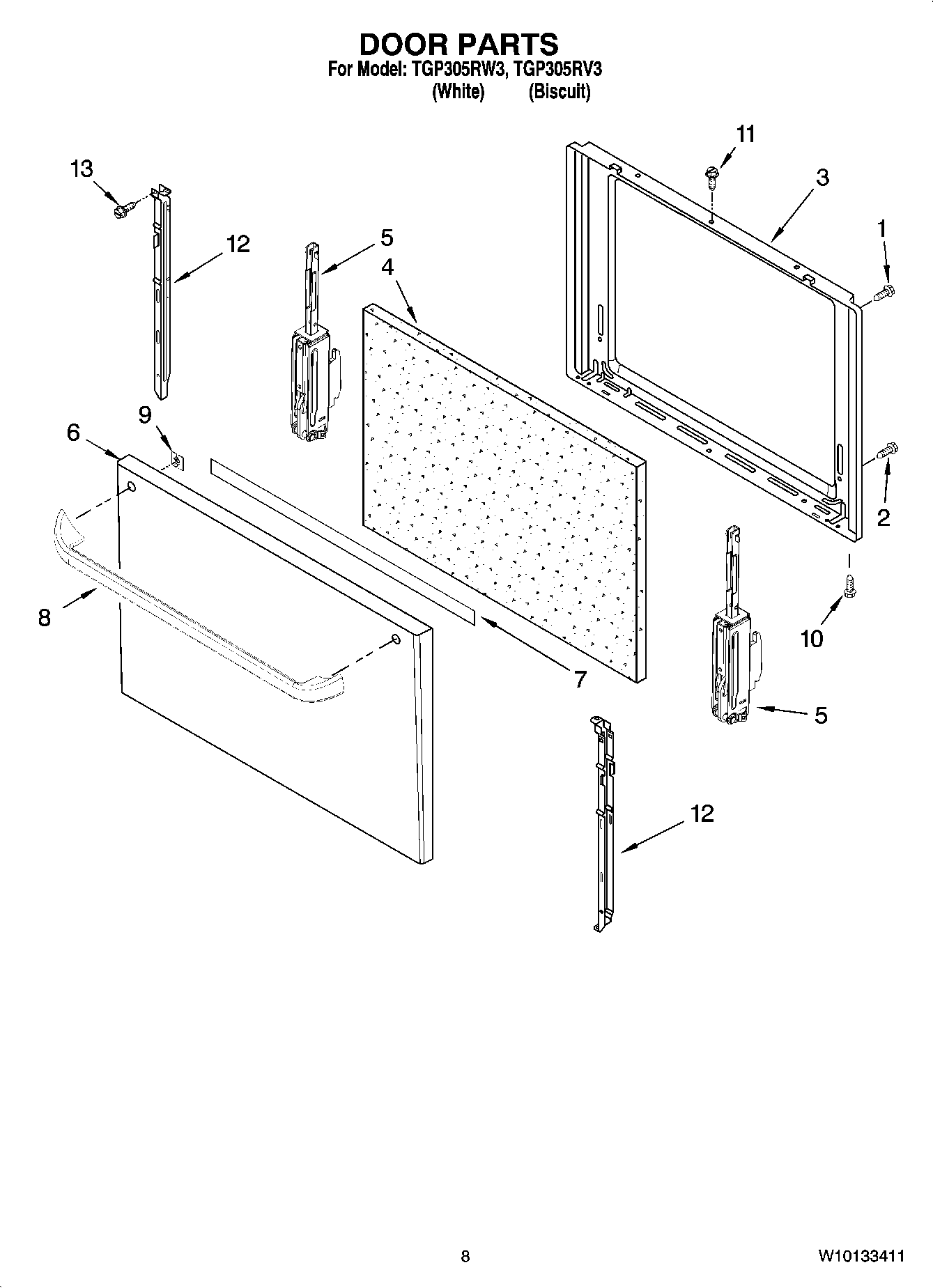

TGP305RV3 06 – DOOR PARTS, OPTIONAL PARTS
Written by
in
TGP305RV3 06 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI131366A
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
8212471 Whirlpool Oven Paint
3196696 Whirlpool Clip
Grease
WPL 8316781
98015022 Whirlpool Bushing Assembly
WP3391018 Whirlpool Wire Tie
98012220 Whirlpool Oven Door Pin
WPW10477747 Whirlpool Anchor Tip
98014534 Whirlpool Wire Harness
WPL ARI131367A
WPL ARI131361A
WPL ARI131362A
WPL ARI131363A
WPL ARI131364A
WPL ARI131365A
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
549193 Whirlpool Refrigerator Power Clamp
72017 Whirlpool Appliance Touch-Up Paint White
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
WPL 799832
WPW10208653 Whirlpool Insulation
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
350930 Whirlpool White Spray Paint
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
1
SCREW
2
W11206744 Whirlpool Screw
3
Liner, Door
4
Insulation, Door
5
98017873 Whirlpool Oven Door Hinge
5
Hinge, Door (Right)
6
WP98017968W Whirlpool Door Panel
6
Panel, Door (Biscuit)
7
Retainer, Upper (2)
8
W10819915 Whirlpool Door Handle
9
Bracket, Handle (2)
10
WP59002061 Whirlpool Microwave Screw
11
3196166 Whirlpool Screw
12
98004564 Whirlpool Oven Retainer
12
98004629 Whirlpool Oven Retainer
13
WP3400805 Whirlpool Screw Assembly
←
